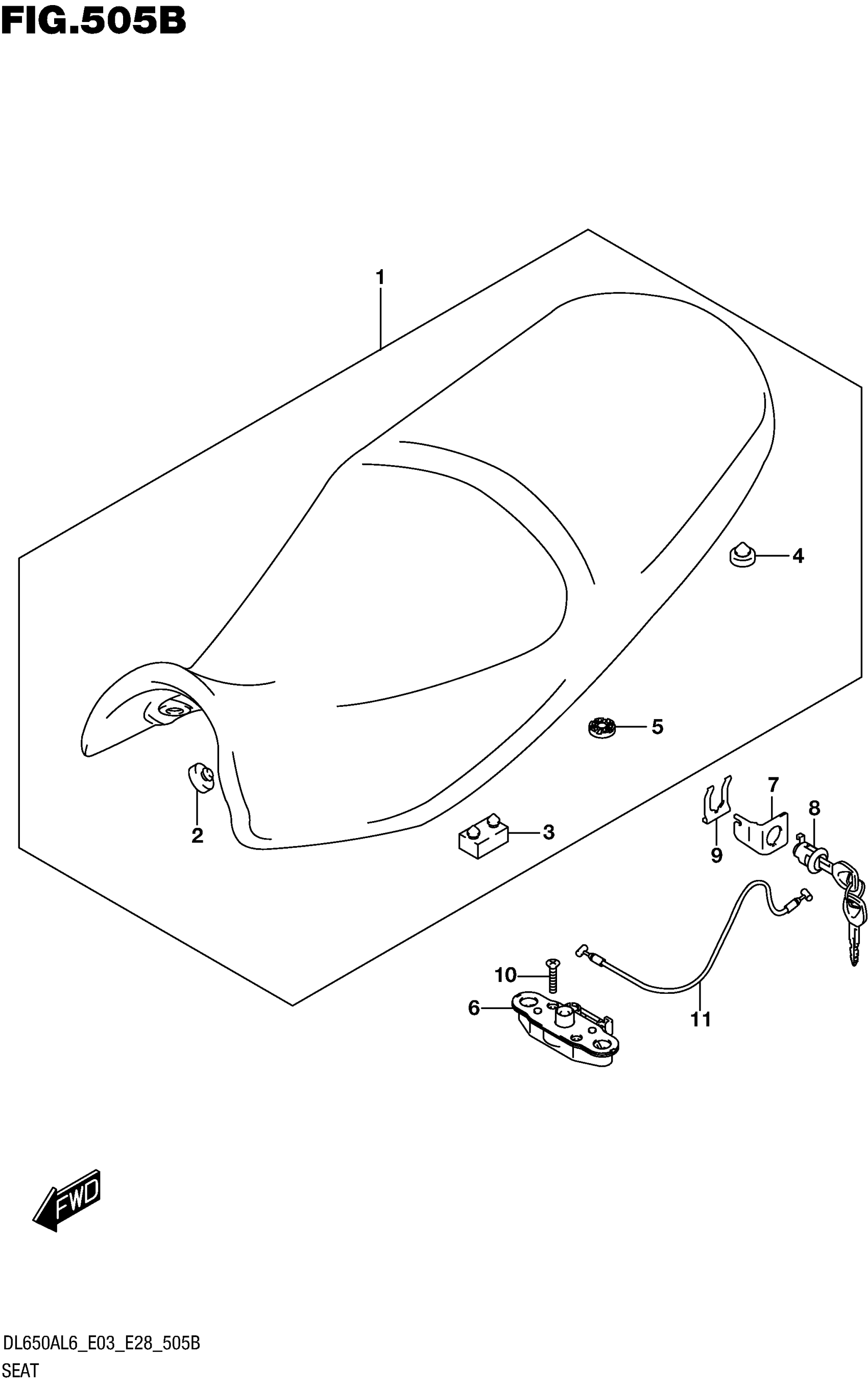

Suzuki DL650AL6 (2016) SEAT (DL650AL6 E33) Diagram

#

Description

Price

1

SEAT ASSY This part replaces 45100-11J00-KCJ.

45100-11J02-KCJ

$382.20

2

CUSHION,SEAT This part replaces 45148-36C00.

45148-36C01

$4.78

3

.CUSHION, SEAT

45149-31300

$3.26

4

CUSHION

09321-10012

$2.80

5

.CUSHION, SEAT LOCK STRIKER

45213-13601

$2.80

6

BRACKET, SEAT SUPPORT REAR

45220-47H00

$155.43

7

GUIDE, SEAT LOCK CABLE

45288-14F00

$4.91

8

LOCK SET, SEAT

95700-14810

$98.21

9

PLATE, SEAT LOCK ASSY

45289-11F00

$5.67

10

SCREW

02122-0630A

$1.76

11

CABLE, SEAT LOCK

45280-11J00

$28.65
