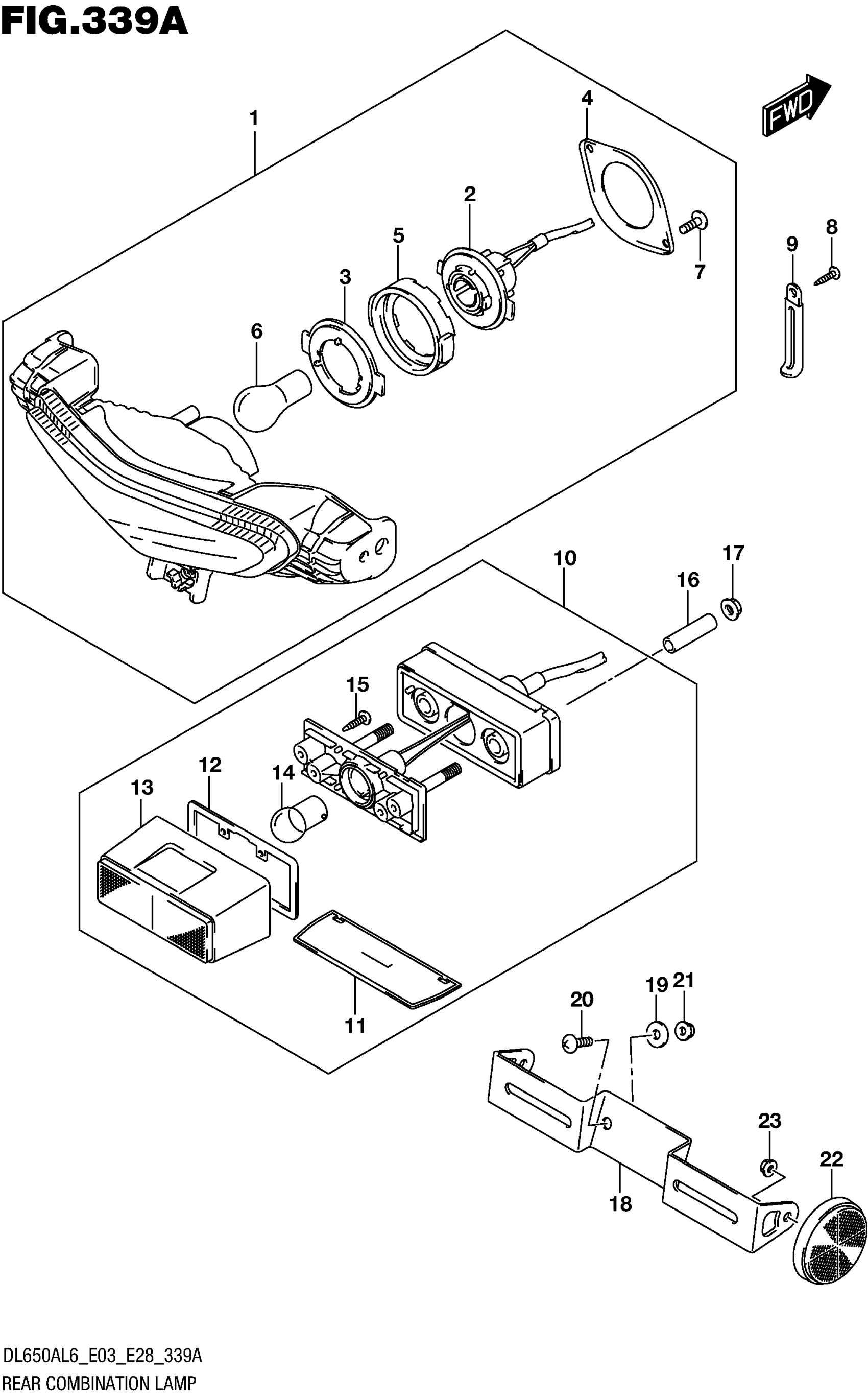

Find the part on the Rear Combination Lamp diagram for your 2016 Suzuki DL650AL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki DL650AL6 Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMBINATION

35710-11J01

1
Out of stock

2

.SOCKET & CORD

35718-11J01

1
Out of stock

3

.PLATE, NO.1

35716-48B21

1
Out of stock

4

.PLATE, NO.2

35736-48B21

1
Out of stock

5

CUSHION This part replaces 35765-42E00.

35765-48B21

1
Out of stock

6

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

1
Out of stock

7

.SCREW

03211-0412A

2
Out of stock

8

SCREW

03541-0616A

1
Out of stock

9

CLAMP (L:45)

09404-06429

1
Out of stock

10

LAMP ASSY,LICENSE This part replaces 35910-41G31.

35910-41G32

1
Out of stock

11

.LENS

35912-41G01

1

$14.98

In stock

12

.GASKET

35913-41G00

1

$16.07

In stock

13

.COVER

35917-41G00

1

$39.85

In stock

14

1

$2.55

In stock

15

.SCREW

03211-0416A

2

$1.54

In stock

16

SPACER (6.5X9X33.3)

09180-06278

2
Out of stock

17

NUT

09159-06096

2
Out of stock

18

BRACKET,LICENSE PLATE

35927-14J30

1
Out of stock

19

WASHER (6.5X20X1.2)

09160-06077

2
Out of stock

20

SCREW

02142-0616A

2
Out of stock

21

NUT

08316-1006A

2
Out of stock

22

REFLECTOR ASSY, RR SIDE

35970-14A20

2
Out of stock

23

NUT

08316-1005A

2
Out of stock
