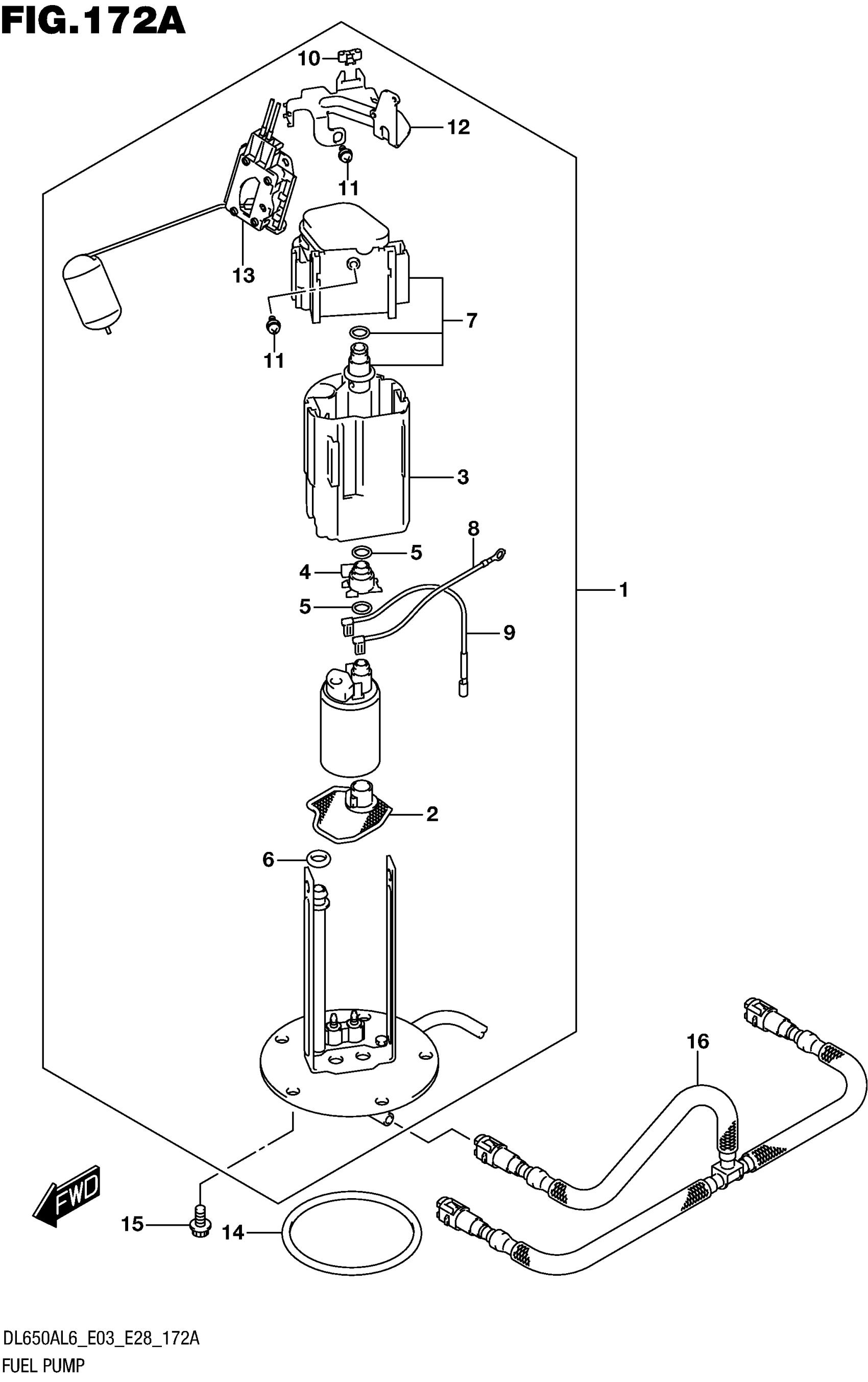

Suzuki DL650AL6 (2016) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY,FUEL This part replaces 15100-11J01.

15100-11J03

$713.72

2

.STRAINER

15420-05H00

$37.68

3

.CUP, RESERVOIR

15111-27G00

$47.88

4

.JOINT

15112-05H00

$31.73

5

.O RING

15113-05H00

$18.81

6

.O RING

15113-35F00

$8.15

7

.REGULATOR

15610-14J00

$159.78

8

.WIPE, EARTH

15114-14J00

Unavailable

9

.WIRE, LEAD

15115-14J00

Unavailable

10

.SADDLE, EDGE

15119-08J00

Unavailable

11

.SCREW

15116-10F00

$6.30

12

.BRACKET, FUEL GAUGE

15181-11J00

Unavailable

13

GAUGE SET,FUEL This part replaces 34810-11J00.

34800-11J03

$210.15

14

O-RING

15201-35F00

$25.27

15

BOLT

07120-0612A

$2.50

16

HOSE, FUEL

15810-11J10

$171.02
