2016 Suzuki DL650AL6 Frame Diagram

← All diagrams

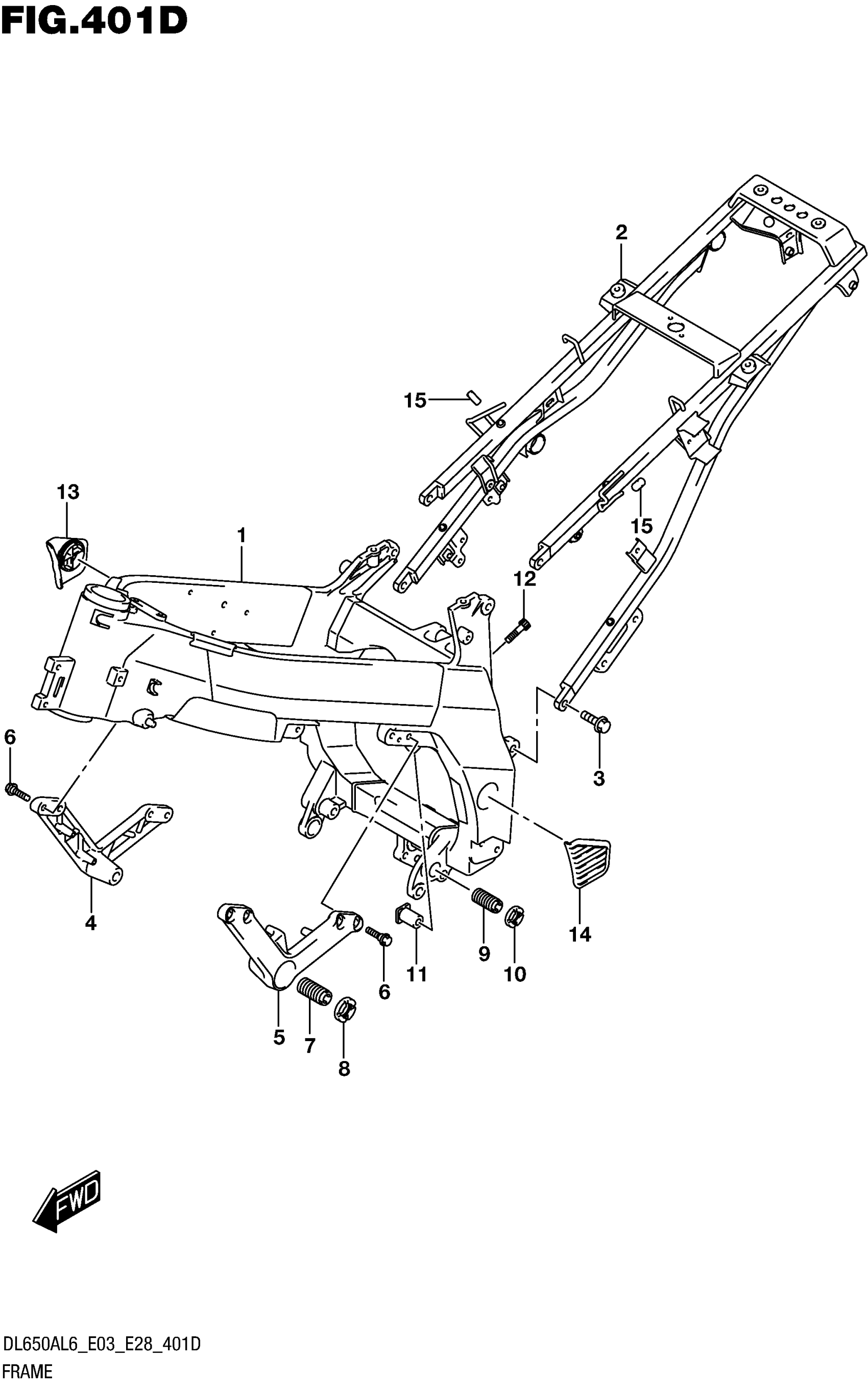

Find the part on the Frame diagram for your 2016 Suzuki DL650AL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki DL650AL6 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME (BLACK)

41100-27G60-YAP

1
Out of stock

2

RAIL,SEAT This part replaces 41200-11J01.

41200-11J02

1
Out of stock

3

BOLT (10X30)

09103-10379

4
Out of stock

4

BRACKET, ENG MTG RH

41911-06G90-YAP

1
Out of stock

5

BRACKET, ENG MTG LH

41912-06G90-YAP

1
Out of stock

6

BOLT (8X30)

09106-08193

8
Out of stock

7

BOLT, CRANK CASE ADJUST CTR

41923-16G00

1
Out of stock

8

NUT,CRANK CASE ADJUST CTR

41922-19F20

1
Out of stock

9

BOLT, CRANK CASE ADJUST LWR This part replaces 41921-16G00.

41921-16G01

1
Out of stock

10

NUT, ADJUSTER LOWER

41922-33E20

1
Out of stock

11

SPACER, ADJUSTER UPPER

41941-19F01

1
Out of stock

12

BOLT (8X38)

09106-08168

1
Out of stock

13

COVER, PIVOT RH

43585-27G10

1
Out of stock

14

COVER, PIVOT LH

43595-27G00

1
Out of stock

15

CAP

09251-04003

2
Out of stock
