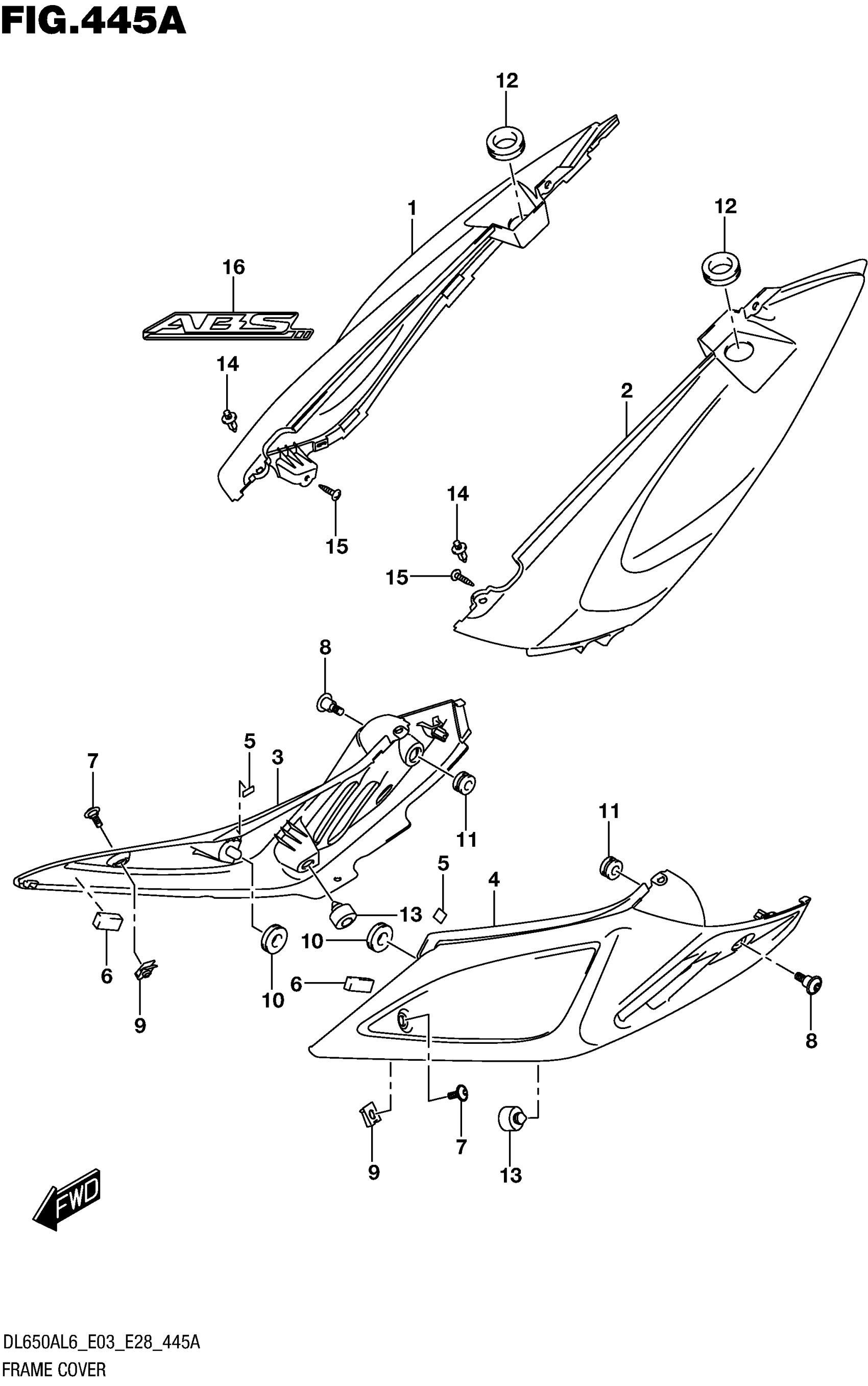

Suzuki DL650AL6 (2016) FRAME COVER Diagram

#

Description
Price

1-1

COVER, FRAME RH (RED)

47111-11J02-YYG

$157.70

1-2

COVER, FRAME RH (GRAY)

47111-11J02-PGZ

$142.85

1-3

COVER, FRAME RH (BLACK)

47111-11J02-YVB

$149.98

1-4

COVER, FRAME RH (SILVER)

47111-11J02-YMD

$150.20

2-1

COVER, FRAME LH (RED)

47211-11J02-YYG

$157.70

2-2

COVER, FRAME LH (GRAY)

47211-11J02-PGZ

$158.10

2-3

COVER, FRAME LH (BLACK)

47211-11J02-YVB

$157.70

2-4

COVER, FRAME LH (SILVER)

47211-11J02-YMD

$150.20

3

COVER, FRAME SIDE RH

47411-11J00

$79.22

4

COVER, FRAME SIDE LH

47511-11J00

$93.68

5

CUSHION (10X10X1)

63115-37H00

$3.42

6

CUSHION, FRAME COVER

94423-10G00

Unavailable

7

BOLT (5X13)

09139-05074

$2.58

8

BOLT (6X20)

09139-06179

$5.52

9

NUT

09148-05052

$3.04

10

CUSHION

09320-08028

$2.80

11

CUSHION

09320-09016

$1.97

12

CUSHION (20X32X9) This part replaces 09320-20010.

09320-20011

$2.71

13

CUSHION

09321-10001

$2.69

14

CLIP (BLACK)

09409-06314-5PK

$2.80

15

SCREW

03541-0416A

$1.43

16-1

.EMBLEM,ABS (GRAY) | FOR YYG,YVB,YMD This part replaces 68151-44G00-1ZY.

68151-44G01-1ZY

$9.03

16-2

EMBLEM, "ABS" | FOR PGZ

68151-44G10-A79

Unavailable
