Description

Price

1

WHEEL, FRONT (19M/CXMT2.50) (BLACK)

54111-27G40-019

$1,068.43

2

BEARING This part replaces 08133-62037.

08133-6203B

$15.88

3

OIL SEAL (24X40X7)

09282-24004

$5.73

4

RING, SPEED SENSOR FR (50T)

54162-27G00

$158.17

5

BOLT

07130-0512A

$2.19

6

AXLE, FR

54711-08F10

$121.48

7

SPACER, FR AXLE LH

54750-31F00

$28.90

8

SPACER, FR AXLE RH

54751-10G01

$20.22

9

SPACER (17.5X25X88)

09180-17067

$25.05

10

DISC,FR BRAKE

59210-44G11

$462.72

11

BOLT (8X21)

09106-08160

$3.22

12

TIRE,FR(110/80R This part replaces 55110-06G11.

55110-06G12

$204.87

13

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.10

14

BALANCER, WHEEL NO.1 | 10G

43222-73H10

$6.57

14

BALANCER, WHEEL NO.2 | 20G

43224-73H10

$4.02

14

BALANCER, WHEEL NO.3 | 30G

43226-73H10

$4.69

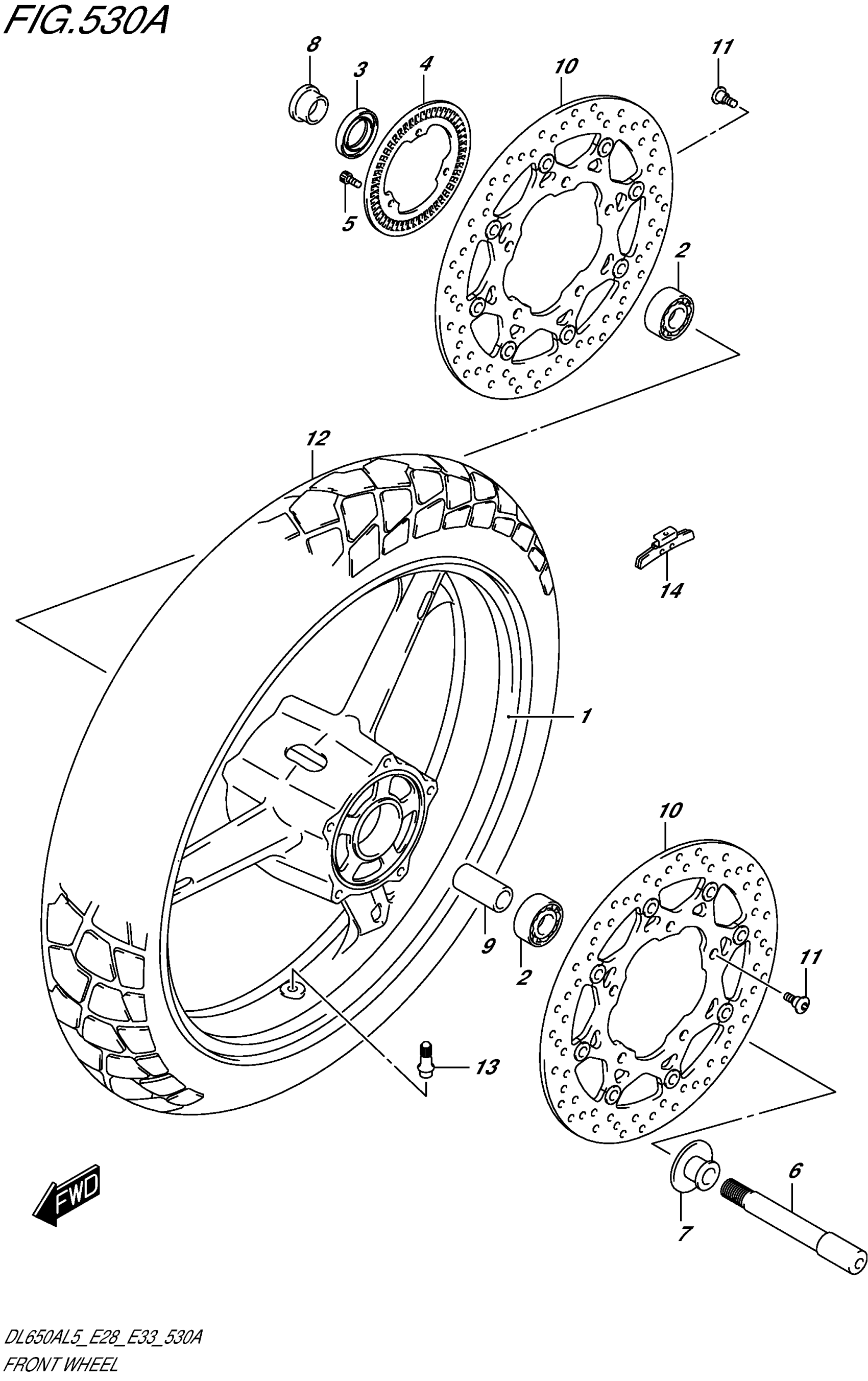

Suzuki DL650AL5 (2015) FRONT WHEEL Diagram
