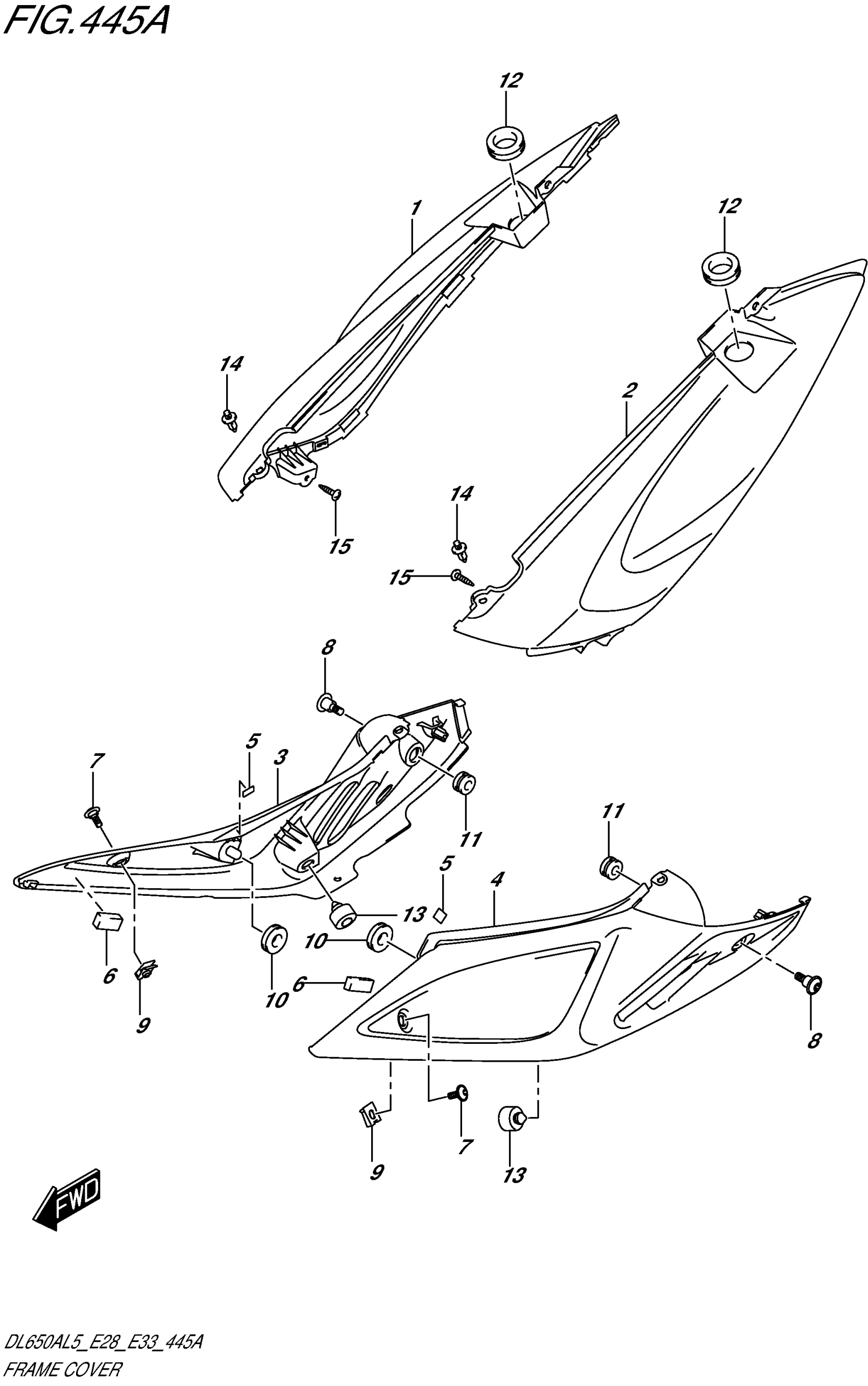

Suzuki DL650AL5 (2015) FRAME COVER Diagram

#

Description
Price

1

COVER,FRAME,R(W This part replaces 47111-11J01-RB5.

47111-11J02-RB5

$149.27

1

COVER, FRAME RH (RED) This part replaces 47111-11J01-YYG.

47111-11J02-YYG

$157.70

1

COVER,FRAME,R(B This part replaces 47111-11J01-YSF.

47111-11J02-YSF

$174.12

1

COVER, FRAME RH (GRAY) This part replaces 47111-11J01-PGZ.

47111-11J02-PGZ

$142.85

2

COVER,FRAME,L(W This part replaces 47211-11J01-RB5.

47211-11J02-RB5

$162.57

2

COVER, FRAME LH (RED) This part replaces 47211-11J01-YYG.

47211-11J02-YYG

$157.70

2

COVER,FRAME,L(B This part replaces 47211-11J01-YSF.

47211-11J02-YSF

$178.50

2

COVER, FRAME LH (GRAY) This part replaces 47211-11J01-PGZ.

47211-11J02-PGZ

$158.10

3

COVER, FRAME SIDE RH

47411-11J00

$79.22

4

COVER, FRAME SIDE LH

47511-11J00

$93.68

5

CUSHION (10X10X1)

63115-37H00

$3.42

6

CUSHION, FRAME COVER

94423-10G00

Unavailable

7

BOLT (5X13)

09139-05074

$2.58

8

BOLT (6X20)

09139-06179

$5.52

9

NUT

09148-05052

$3.04

10

CUSHION

09320-08028

$2.80

11

CUSHION

09320-09016

$1.97

12

CUSHION (20X32X9) This part replaces 09320-20010.

09320-20011

$2.71

13

CUSHION

09321-10001

$2.69

14

CLIP (BLACK)

09409-06314-5PK

$2.80

15

SCREW

03541-0416A

$1.43
