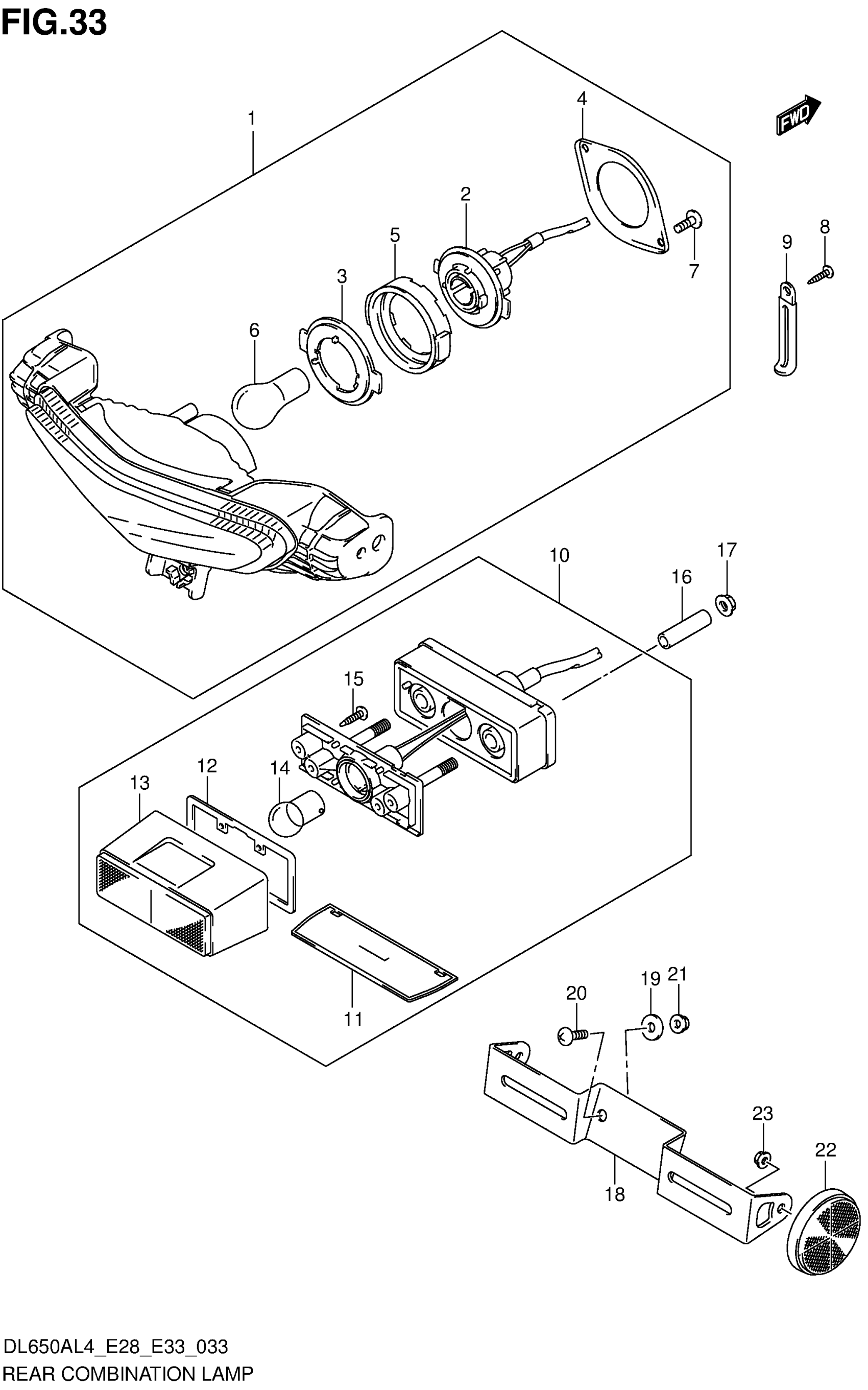

Find the part on the Rear Combination Lamp diagram for your 2014 Suzuki DL650AL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki DL650AL4 Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$227.08

In stock

2

SOCKET & CORD

35718-11J01

1

$67.17

In stock

3

PLATE, NO.1

35716-48B21

1

$22.82

In stock

4

PLATE, NO.2

35736-48B21

1

$24.73

In stock

5

1

$14.63

In stock

6

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

1
Out of stock

7

SCREW

03211-0412A

2

$0.73

In stock

8

SCREW

03541-0616A

1

$2.07

In stock

9

CLAMP (L:45)

09404-06429

1
Out of stock

10

1

$99.83

In stock

11

LENS

35912-41G01

1
Out of stock

12

GASKET

35913-41G00

1
Out of stock

13

COVER

35917-41G00

1
Out of stock

14

1

$2.55

In stock

15

SCREW

03211-0416A

2

$1.54

In stock

16

SPACER (6.5X9X33.3)

09180-06278

2

$4.92

In stock

17

NUT

09159-06096

2
Out of stock

18

BRACKET,LICENSE PLATE

35927-14J30

1

$17.72

In stock

19

WASHER (6.5X20X1.2)

09160-06077

2
Out of stock

20

SCREW

02142-0616A

2
Out of stock

21

NUT

08316-1006A

2
Out of stock

22

REFLECTOR ASSY, RR SIDE

35970-14A20

2
Out of stock

23

NUT

08316-1005A

2
Out of stock
