2014 Suzuki DL650AL4 Gear Shifting Diagram

← All diagrams

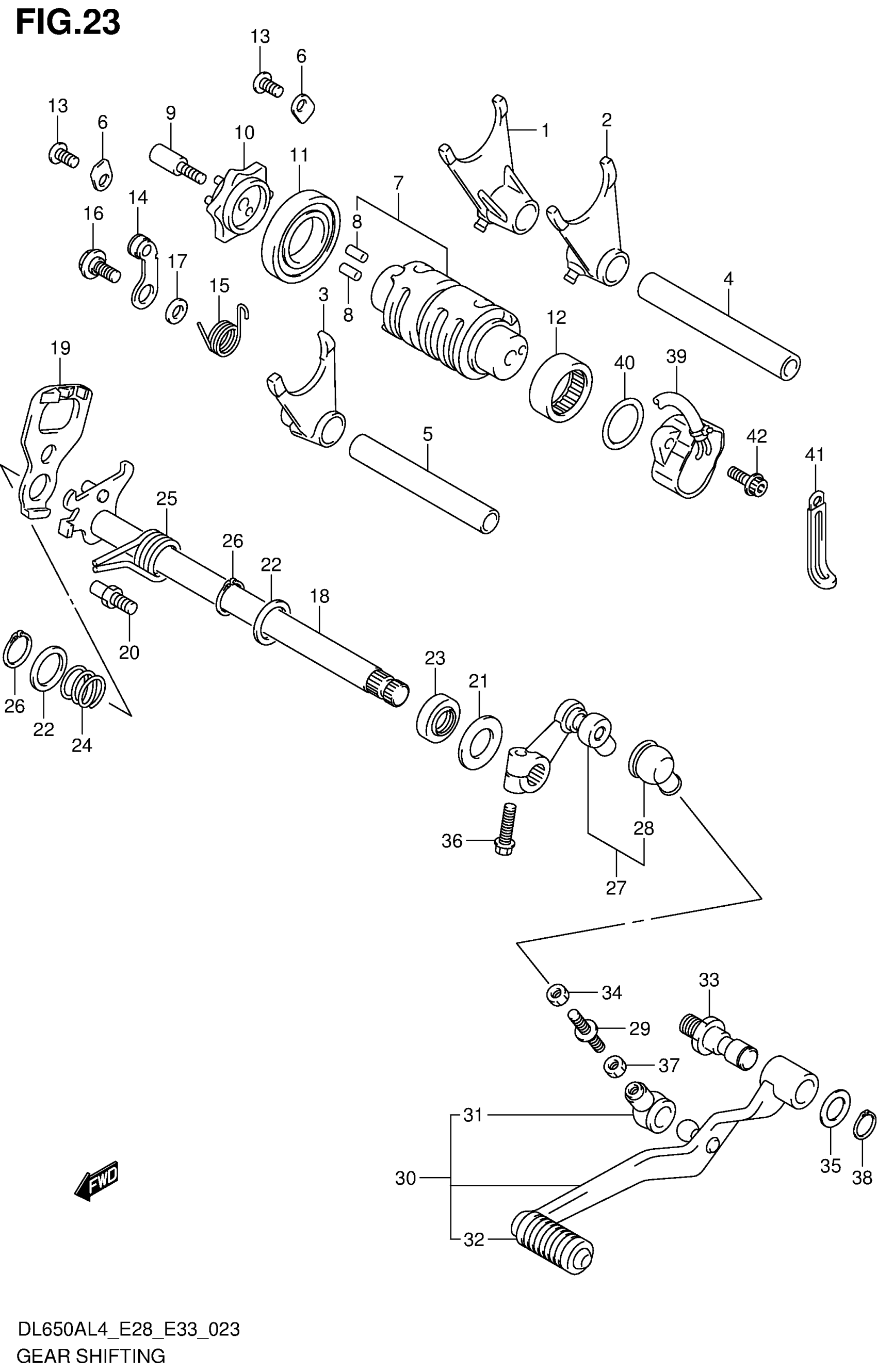

Find the part on the Gear Shifting diagram for your 2014 Suzuki DL650AL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki DL650AL4 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK,GEAR SHIFT NO.1

25211-42E20

1
Out of stock

2

FORK,GEAR SHIFT NO.2

25221-42E20

1
Out of stock

3

FORK,GEAR SHIFT NO.3

25231-42E20

1
Out of stock

4

SHAFT,GEAR SHIFT FORK (L:110)

25411-26D01

1
Out of stock

5

SHAFT,GEAR SHIFT FORK NO.1

25411-44B00

1
Out of stock

6

RETAINER, SHIFT CAM BEARING

24741-21A00

2
Out of stock

7

CAM,GEAR SHIFT

25310-19F00

1
Out of stock

8

PIN (4X13.8)

04221-04089

2
Out of stock

9

STOPPER, GEAR SHIFT CAM

25312-42F01

1
Out of stock

10

PLATE,GEAR SHIFT CAM

25381-19F20

1
Out of stock

11

BEARING (25X47X8)

09262-25006

1
Out of stock

12

BEARING (25X32X12)

09263-25018

1
Out of stock

13

SCREW

02112-0612A

2
Out of stock

14

STOPPER, SHIFT CAM

25350-35F00

1
Out of stock

15

SPRING,SHIFT

25355-35F01

1
Out of stock

16

BOLT (6X14.3)

09111-06041

1
Out of stock

17

WASHER

08211-06141

1
Out of stock

18

SHAFT,GEAR SHIFT

25510-19F10

1
Out of stock

19

PLATE,GEAR SHIFT CAM DRIVE This part replaces 25512-06G10.

25512-06G20

1
Out of stock

20

STOPPER, GEAR SHIFT ARM

25671-01011

1
Out of stock

21

WASHER (14X29X0.8)

09160-14016

1
Out of stock

22

SHIM (14X22X1)

09181-14167

2
Out of stock

23

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

1
Out of stock

24

SPRING

09440-17009

1
Out of stock

25

SPRING

09444-20001

1
Out of stock

26

CIRCLIP

08331-3114A

3
Out of stock

27

ARM, GEAR SHIFT LINK This part replaces 25520-27G00.

25520-27G01

1
Out of stock

28

.COVER, DUST This part replaces 25526-47000.

25526-47001

1
Out of stock

29

ROD, GEAR SHIFT LINK

25525-27G00

1
Out of stock

30

LEVER ASSY, GEAR SHIFT This part replaces 25600-11J00.

25600-11J01

1
Out of stock

31

.COVER, DUST This part replaces 25526-47000.

25526-47001

1
Out of stock

32

RUBBER, GEAR SHIFT PEDAL

25652-20C00

1
Out of stock

33

SHAFT, GEAR SHIFT LEVER

25617-03F10

1
Out of stock

34

NUT

09140-06025

1
Out of stock

35

WASHER (12.5X20X1)

09160-12011

1
Out of stock

36

BOLT

01547-0620A

1
Out of stock

37

.NUT

08310-00067

1
Out of stock

38

CIRCLIP

08331-3112A

1
Out of stock

39

SENSOR ASSY,GEAR POSITION This part replaces 37730-44H01.

37730-44H11

1
Out of stock

40

O RING (D:2.4,ID:26.2)

09280-26005

1
Out of stock

41

1

$2.88

In stock

42

BOLT (5X16)

09106-05023

2
Out of stock
