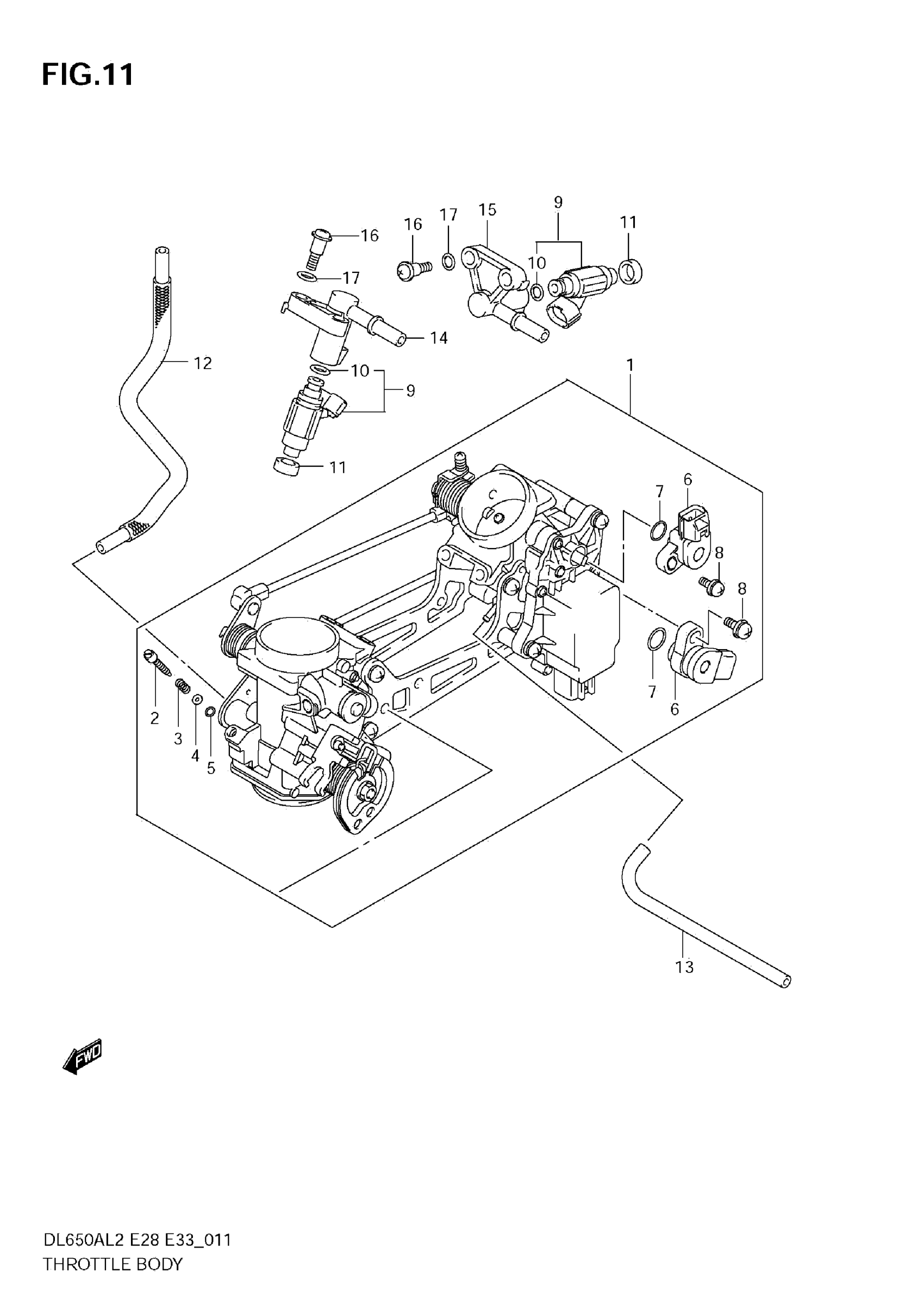

Suzuki DL650AL2 (2012) THROTTLE BODY (E28) Diagram

#

Description
Price

1

THROTTLE BODY

13405-11J00

Unavailable

2

SCREW

13269-33E00

$10.45

3

SPRING,THROTTLE SCREW

13268-48700

$3.97

4

WASHER

13606-47A00

$3.70

5

O-RING This part replaces 13295-29900.

13295-29901

$3.97

6

SENSOR ASSY

13580-27G21

$163.47

7

.O-RING This part replaces 13575-29G00.

13575-29G01

$2.97

8

SCREW

13605-02F00

$3.50

9

INJECTOR ASSY

15710-44H00

$363.92

10

.O-RING

15717-58B00

$9.11

11

SEAL

15722-29G00

$10.01

12

HOSE

13683-44H00

Unavailable

13

HOSE This part replaces 13683-44H10.

13683-44H11

$20.55

14

DELIVERY PIPE

15731-11J00

Unavailable

15

DELIVERY PIPE

15732-11J00

Unavailable

16

SCREW

13601-11J00

$4.51

17

PACKING This part replaces 13602-29G00.

13602-29G01

$2.52
