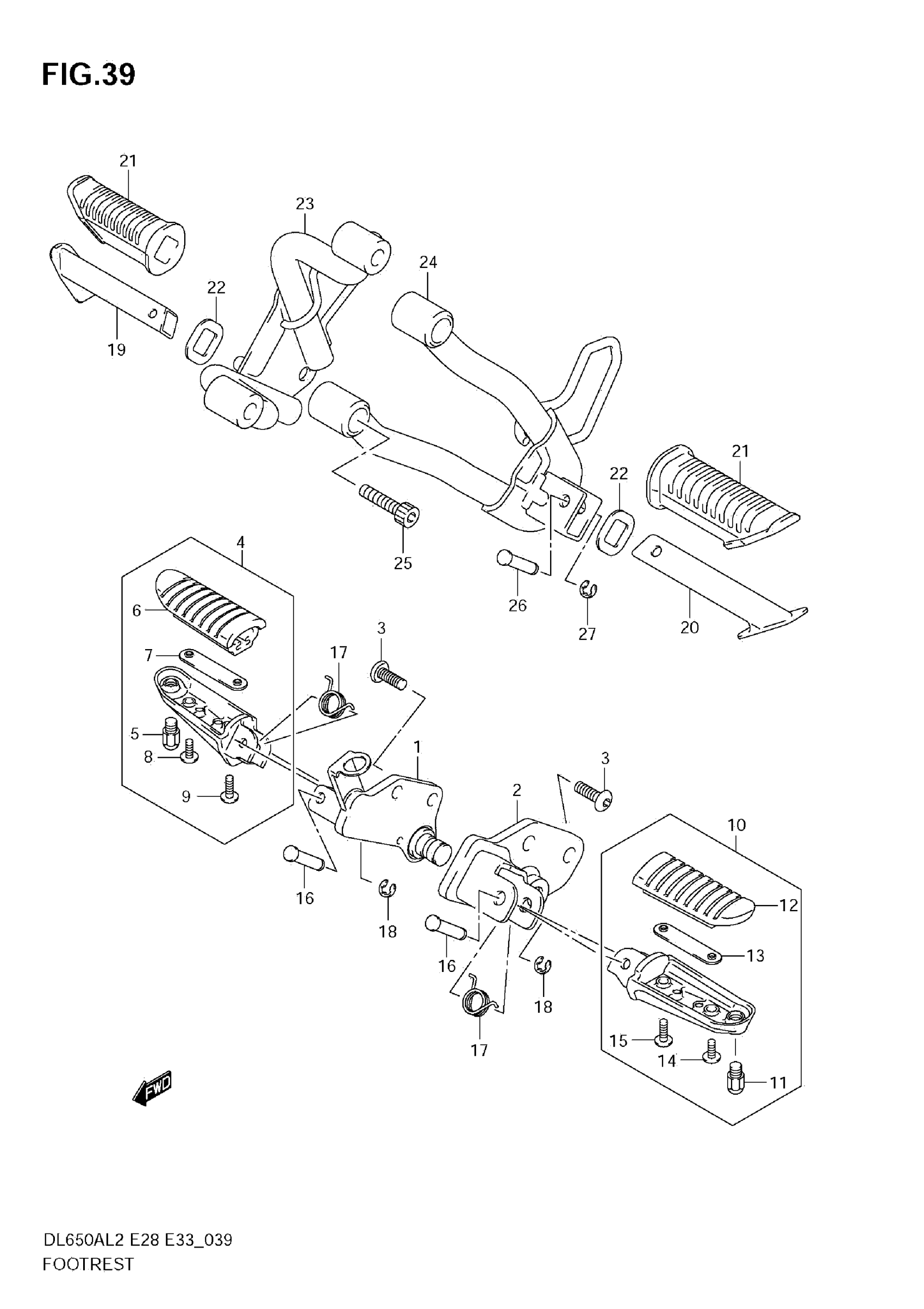

Suzuki DL650AL2 (2012) FOOTREST Diagram

#

Description
Price

1

BRACKET, FR FOOTREST RH This part replaces 43510-27G01-YAP.

43510-11J00-YAP

$92.55

2

BRACKET, FR FOOTREST LH This part replaces 43520-27G01-YAP.

43520-11J00-YAP

$72.77

3

BOLT (8X23)

09106-08150

$3.13

4

FOOTREST ASSY RH

43501-06G01

$133.57

5

.BOLT,BANK SENSOR

43576-07D01

$8.10

6

RUBBER

43551-06G00

$13.21

7

PLATE

43552-06G00

$14.47

8

SCREW | OUTER

02142-0516B

$1.95

9

SCREW | INNER

02142-0520B

$1.77

10

FOOTREST ASSY, LH

43502-06G01

$133.57

11

.BOLT,BANK SENSOR

43576-07D01

$8.10

12

RUBBER

43551-06G00

$13.21

13

PLATE

43552-06G00

$14.47

14

SCREW | OUTER

02142-0516B

$1.95

15

SCREW | INNER

02142-0520B

$1.77

16

PIN (6X33.2)

09208-08010

$2.80

17

SPRING

09448-18022

$3.42

18

E RING

08332-1106A

$1.43

19

BAR, PILLION FOOTREST RH This part replaces 43610-34A00.

43610-34A60

$73.87

20

BAR, PILLION FOOTREST LH This part replaces 43710-34A00.

43710-34A60

$70.48

21

RUBBER, PILLION FOOTREST This part replaces 43612-33G00.

43612-33G30

$7.68

22

WASHER, FOOTREST RUBBER

43631-34A01

$4.26

23

BRACKET, PILLION RH (BLACK)

43810-27G10-YAP

$178.88

24

BRACKET, PILLION LH (BLACK)

43820-27G01-019

$169.10

25

BOLT (8X40)

09106-08074

$3.52

26

PIN (6X29.5)

09208-06008

$2.80

27

E RING

08332-1104A

$1.37
