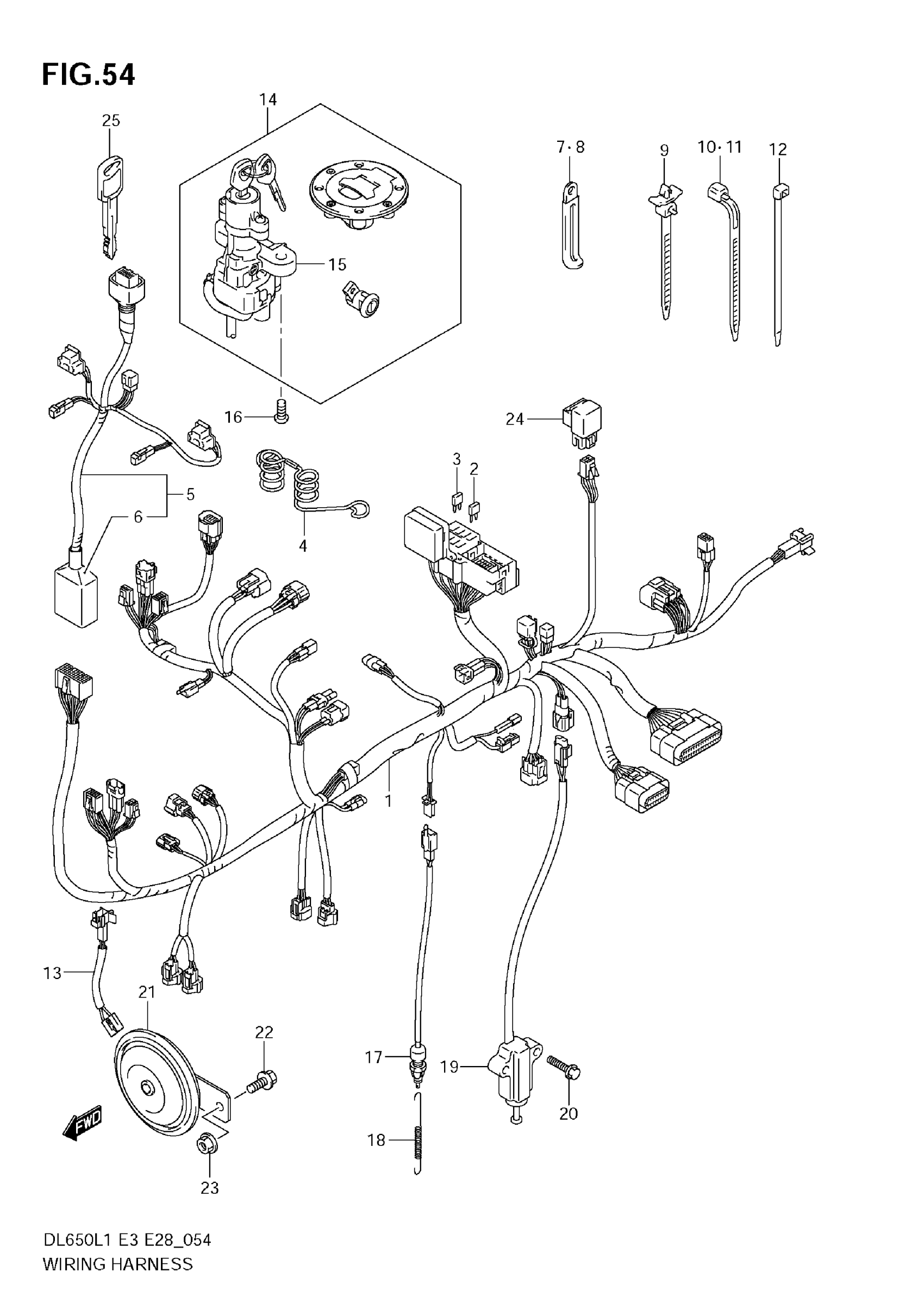

Suzuki DL650AL1 (2011) WIRING HARNESS (DL650 L1 E28) Diagram

#

Description
Price

1

HARNESS, WIRING, NO.1

36610-27GF0

Unavailable

2

FUSE (10A)

09481-10501

$2.07

3

FUSE (15A)

09481-15501

$2.07

4

GUIDE, WIRING HARNESS

36619-06G01

$22.08

5

HARNESS, WIRING, NO.2

36620-27G80

Unavailable

6

COVER, CONNECTOR

36618-18G10

Unavailable

7

CLAMP (L:45)

09404-06429

$1.82

8

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76

9

CLAMP This part replaces 09407-14408.

09407-17402

$4.28

10

CLAMP (L:95)

09407-11401

$2.87

11

CLAMP (L:125)

09407-14403

$2.24

12

CLAMP (L:145)

09407-14407

$2.80

13

WIRE, HORN LEAD

36852-06G00

$19.68

14

LOCK SET This part replaces 37000-27860.

37000-27862

$461.52

15

LOCK ASSY,STEER This part replaces 37100-27G00.

37100-27G01

$216.78

16

BOLT (8X20)

09139-08016

$3.04

17

SWITCH ASSY, STOP LAMP

37740-45D00

$20.62

18

SPRING

09443-06012

$2.90

19

SWITCH ASSY,SIDE STAND This part replaces 37840-06G00.

37840-06G02

$68.13

20

BOLT

01550-0616B

$2.53

21

HORN ASSY

38500-27G00

Unavailable

22

BOLT

01550-0812B

$2.73

23

NUT

08316-1008B

$2.65

24

RELAY ASSY, FUEL PUMP

38740-24X50

$41.38

25

KEY, BLANK | OPT

37146-33E00
