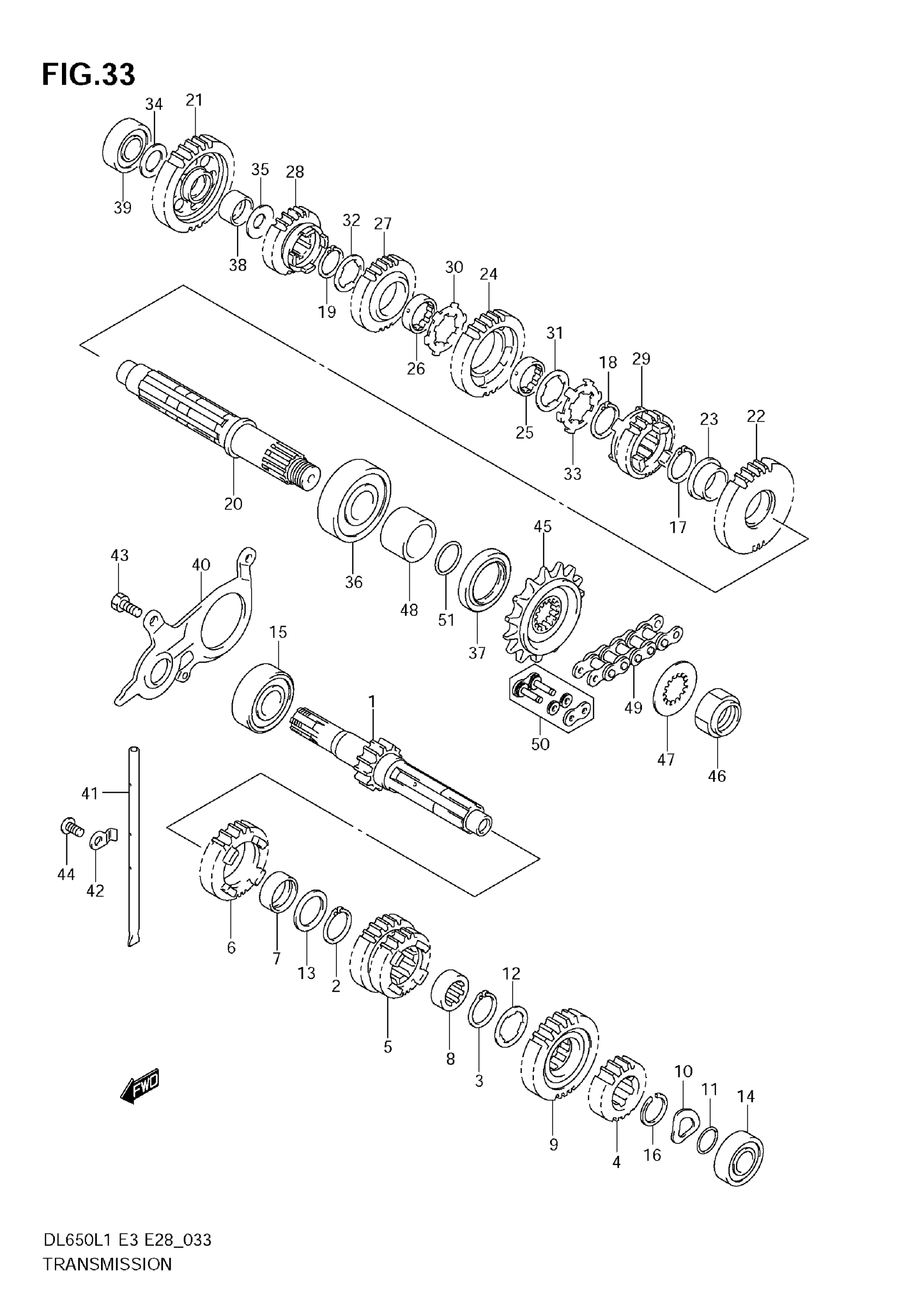

Suzuki DL650AL1 (2011) TRANSMISSION Diagram

#

Description
Price

1

SHAFT,COUNTER (NT:13)

24120-27G00

Unavailable

2

CIRCLIP, 5TH DRIVE GEAR

24127-19F00

$4.37

3

CIRCLIP, 6TH DRIVE GEAR

24127-19F00

$4.37

4

GEAR,2ND DRIVE (NT:18) This part replaces 24221-20F00.

24221-20F10

Unavailable

5

GEAR,3RD & 4TH DRIVE (NT:21/2 | NT:21/24

24231-20F10

Unavailable

6

GEAR,5TH DRIVE (NT:26)

24251-20F02

Unavailable

7

BUSH, 5TH DRIVE

24252-19F00

$19.32

8

BUSH,6TH DRIVE GEAR

24252-38A10

Unavailable

9

GEAR,6TH DRIVE (NT:27)

24261-20F00

Unavailable

10

WASHER

09164-17007

Unavailable

11

O RING (D:1,ID:16.8)

09280-17001

$1.49

12

WASHER,LOCK (25.1X33X1.0)

09167-25021

$4.18

13

SHIM (25X34X1)

09181-25167

$2.85

14

BEARING (17X40X12) | LH

09262-17046

$41.35

15

BEARING (20X52X15) | RH

09262-20145

$40.98

16

CIRCLIP

09380-25012

$2.68

17

CIRCLIP, 2ND DRIVEN

24127-19F00

$4.37

18

CIRCLIP, 3RD DRIVEN

24127-19F00

$4.37

19

CIRCLIP, 4TH DRIVEN

24127-19F00

$4.37

20

SHAFT, DRIVE

24130-44H00

Unavailable

21

GEAR, 1ST DRIVEN (NT:32)

24311-20F00

$152.47

22

GEAR, 2ND DRIVEN (NT:32)

24321-20F01

$140.85

23

BUSH, 2ND DRIVEN

24322-19F00

$26.85

24

GEAR, 3RD DRIVEN (NT:29)

24331-20F00

Unavailable

25

BUSH, 3RD DRIVEN

24332-24510

$21.07

26

BUSH, 4TH DRIVEN

24332-24510

$21.07

27

GEAR, 4TH DRIVEN (NT:27)

24341-20F00

$152.47

28

GEAR, 5TH DRIVEN (NT:25)

24351-20F02

Unavailable

29

GEAR, 6TH DRIVEN (NT:23)

24361-20F01

$157.03

30

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.58

31

WASHER,LOCK (25.1X33X1.0)

09167-25021

$4.18

32

WASHER,LOCK (25.1X33X1.0)

09167-25021

$4.18

33

WASHER

09169-25001

$2.95

34

SHIM (17X28X1)

09181-17195

$2.81

35

SHIM (20X30X1)

09181-20195

$2.68

36

BEARING (25X62X17)

09262-25125

$75.18

37

OIL SEAL (36X50X6)

09283-36003

$11.37

38

BUSH

09300-20032

$19.02

39

BEARING (17X40X12)

09262-17023

$15.11

40

RETAINER,DRIVE SHAFT OIL SEAL

24751-19F10

$16.60

41

GUIDE, T/M OIL

24881-12C20

Unavailable

42

RETAINER,TRANSMISSION OIL

24885-12C10

Unavailable

43

BOLT

01500-0612A

$1.80

44

SCREW

02112-0612A

$1.43

45

SPROCKET, ENGINE (NT:15) This part replaces 27510-20F00.

27510-20F21

$48.81

46

NUT

09159-20004

$14.15

47

LOCK WASHER

09167-25027

$2.04

48

SPACER,ENGINE SPROCKET

27531-19F10

$43.02

49

CHAIN ASSY,DRIV This part replaces 27600-32C10-118.

27600-32C90-118

$333.45

50

.JOINT SET, CHAIN | OPT This part replaces 27620-32C10.

27620-32C90

$17.40

51

O RING (D:2.4,ID:23.7)

09280-24010

$5.09
