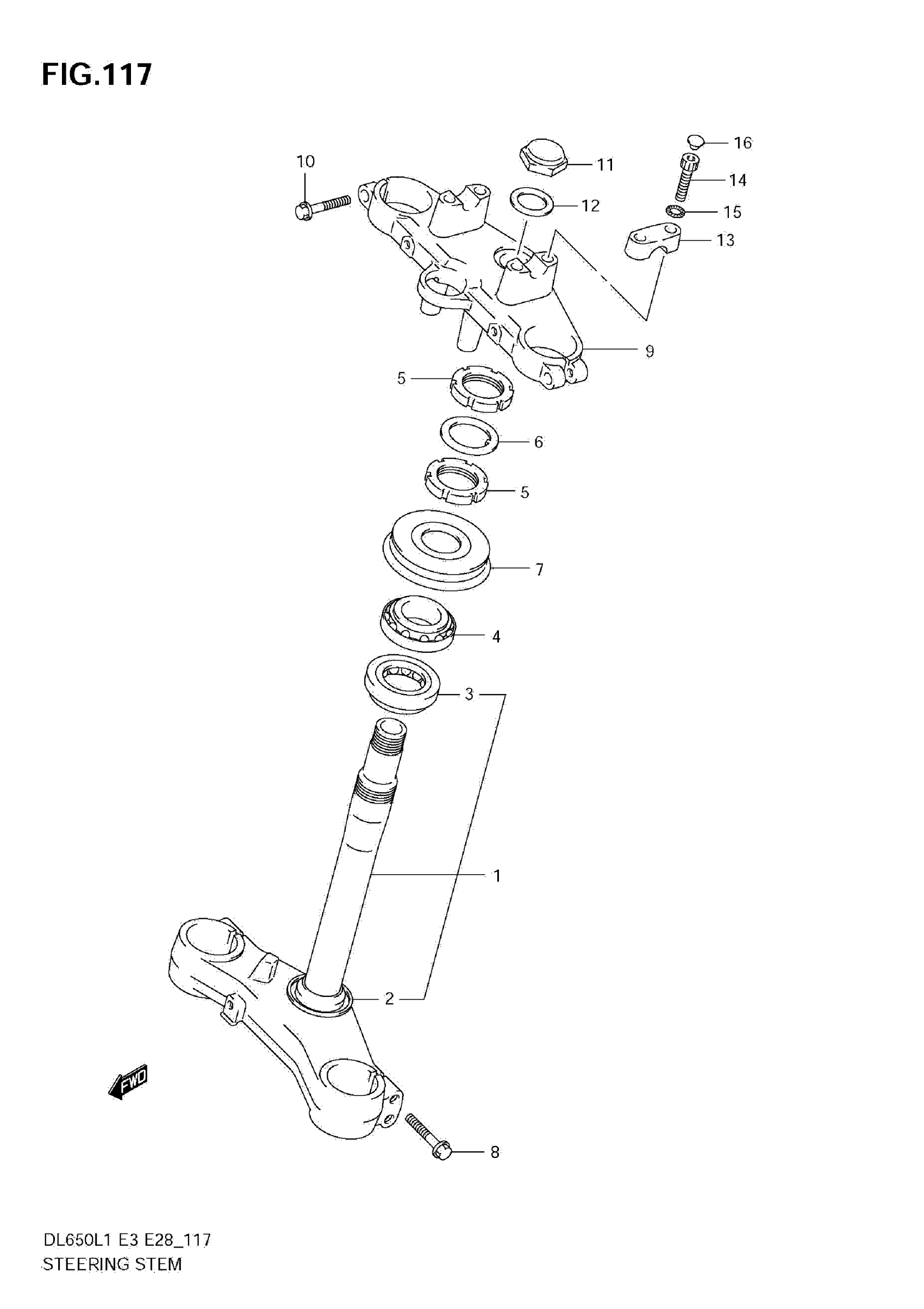

Suzuki DL650AL1 (2011) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING

51410-27G20

Unavailable

2

SEAL, STEERING LOWER

51644-12C00

$8.65

3

BEARING (30X55X17)

09267-30010

$43.41

4

BEARING, UPPER (30X55X17)

09267-30010

$43.41

5

NUT

51631-33E00

$21.64

6

WASHER

51641-33E00

$5.67

7

SEAL, STEERING UPR DUST

51643-33E00

$14.66

8

BOLT

51166-35F00

$6.86

9

HEAD, STEERING STEM

51311-27G00

Unavailable

10

BOLT

51166-35F00

$6.86

11

NUT

51353-27G00

$38.16

12

WASHER

51354-06G00

$13.30

13

HOLDER, HANDLE UPPER

56211-32F00

Unavailable

14

BOLT

51321-06G00

$10.35

15

WASHER

09164-08015

$2.90

16

CAP

09250-06011

$2.53
