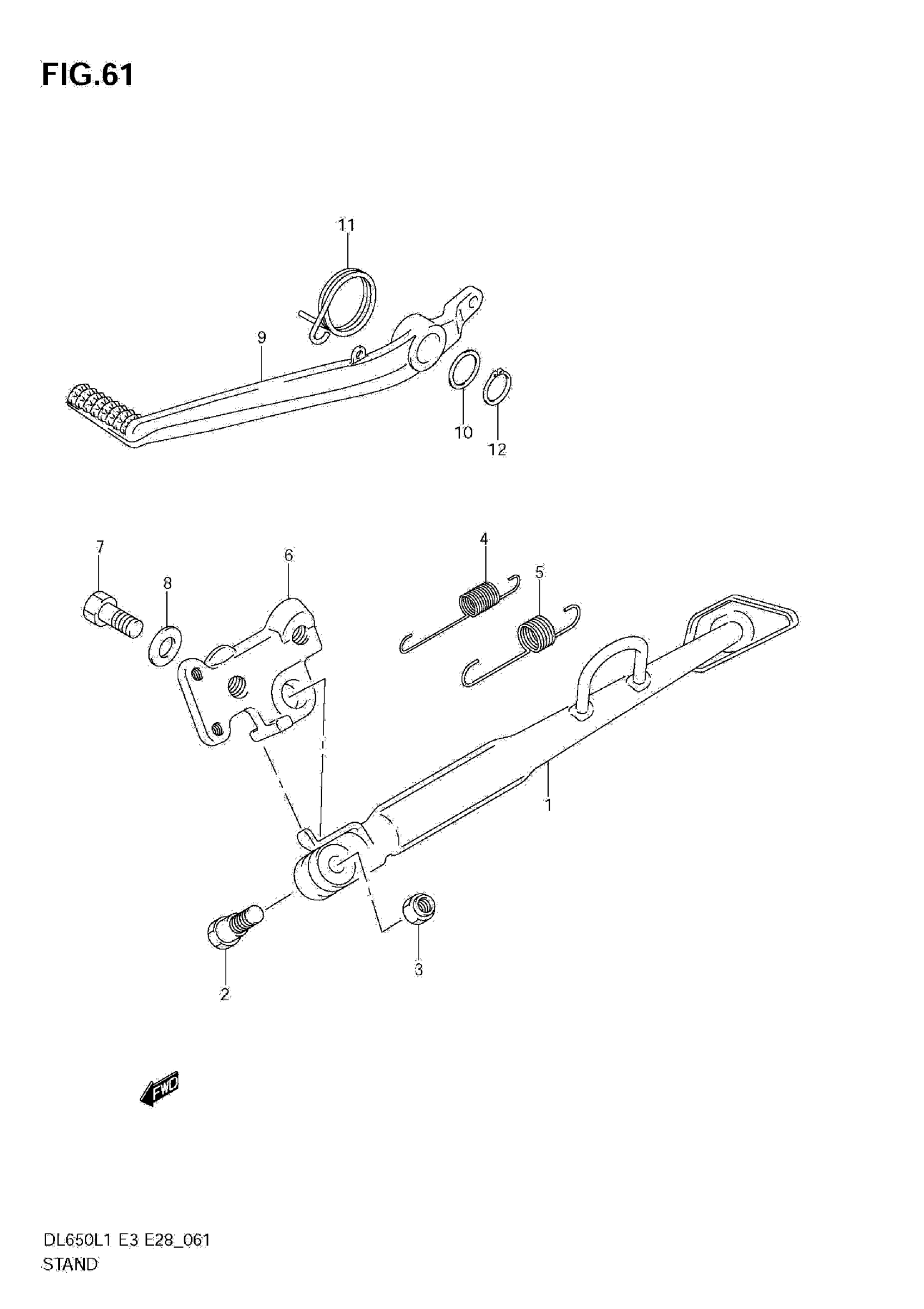

Suzuki DL650AL1 (2011) STAND Diagram

#

Description
Price

1

STAND, PROP

42310-06G50

$194.92

2

BOLT (10X37.5)

09111-10058

$6.09

3

NUT, PROP STAND

42321-03FK0

$4.73

4

SPRING

09443-14058

$5.17

5

SPRING

09443-19011

$5.26

6

BRACKET,PROP ST This part replaces 42330-06G50.

42330-06G51

$137.77

7

BOLT

09100-12084

$6.52

8

WASHER

09160-12061

$2.35

9

PEDAL, BRAKE

43111-27G00

$160.53

10

WASHER (18X24X1)

09160-18022

$2.80

11

SPRING

09448-41005

$3.95

12

CLIP

08331-3118A

$2.30
