2011 Suzuki DL650AL1 Rear Combination Lamp Diagram

← All diagrams

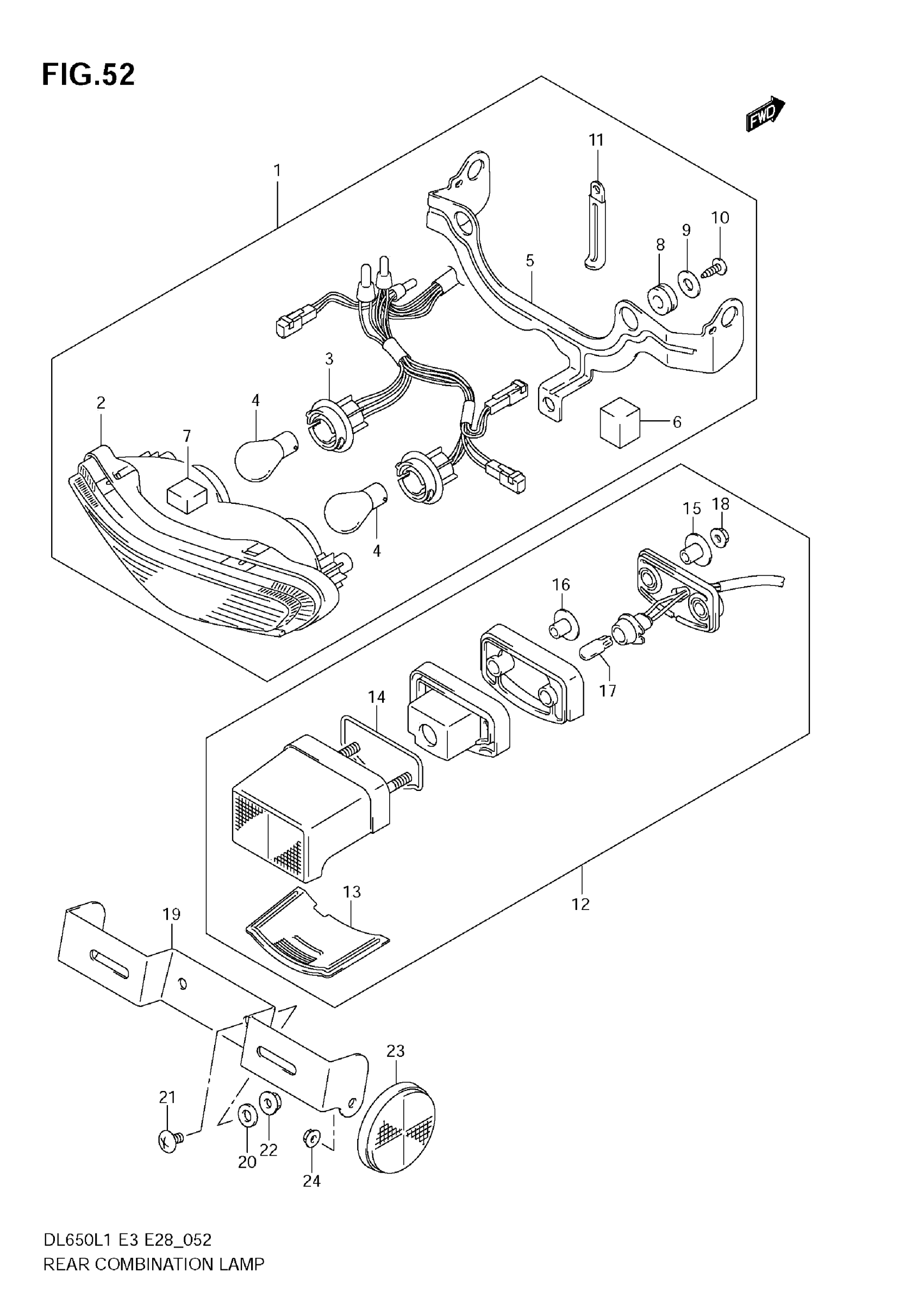

Find the part on the Rear Combination Lamp diagram for your 2011 Suzuki DL650AL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki DL650AL1 Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$666.35

In stock

2

UNIT

35720-06G30

1
Out of stock

3

SOCKET & CORD

35718-27G00

1
Out of stock

4

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

2
Out of stock

5

BRACKET

35726-27G00

1
Out of stock

6

CUSHION

35739-27G00

1
Out of stock

7

CUSHION

35734-27G00

1
Out of stock

8

CUSHION

09320-10049

2

$2.56

In stock

9

WASHER (5.5X20X1.2)

09160-05501

2

$2.02

In stock

10

SCREW

03241-0516A

2

$1.30

In stock

11

CLAMP (L:45)

09404-06429

2
Out of stock

12

LAMP ASSY, LICENSE

35910-27G30

1

$169.40

In stock

13

LENS

35912-08F00

1

$12.02

In stock

14

GASKET

35913-08F00

1
Out of stock

15

SPACER

35766-27G30

2
Out of stock

16

SPACER

35766-08F00

2
Out of stock

17

.BULB (12V5W)

09471-12216

1
Out of stock

18

NUT

08316-1006B

2
Out of stock

19

1

$19.97

In stock

20

WASHER (6.5X16X1.6)

09160-06128

2

$2.16

In stock

21

SCREW, LICENSE PLATE

02142-0612B

2
Out of stock

22

NUT, LICENSE

08316-1006B

2
Out of stock

23

REFLECTOR ASSY, RR SIDE

35970-14A20

2
Out of stock

24

NUT

08316-1005B

2
Out of stock
