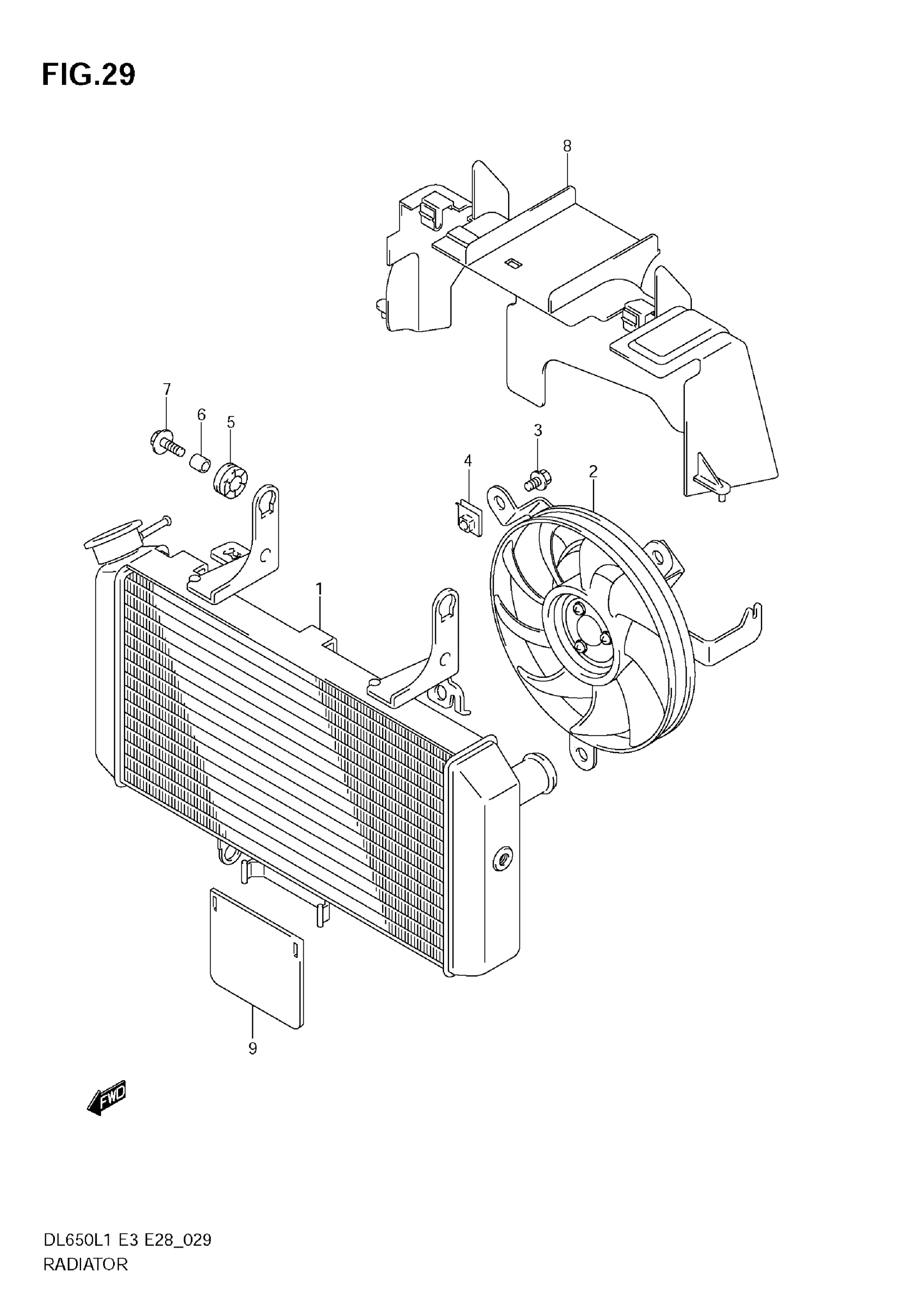

Suzuki DL650AL1 (2011) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-27G00

$1,094.05

2

FAN ASSY, RADIATOR

17800-27G00

Unavailable

3

BOLT

17711-40F00

$6.30

4

NUT, FAN ASSY

17712-40F00

$4.42

5

CUSHION

09320-10051

$2.81

6

SPACER (6.5X10X12)

09180-06290

$2.01

7

BOLT (6X25)

09118-06097

$2.50

8

SHIELD, RADIATOR HEAT

17760-27G00

Unavailable

9

RUBBER,RADIATOR UNDER

17781-17G00

$11.18
