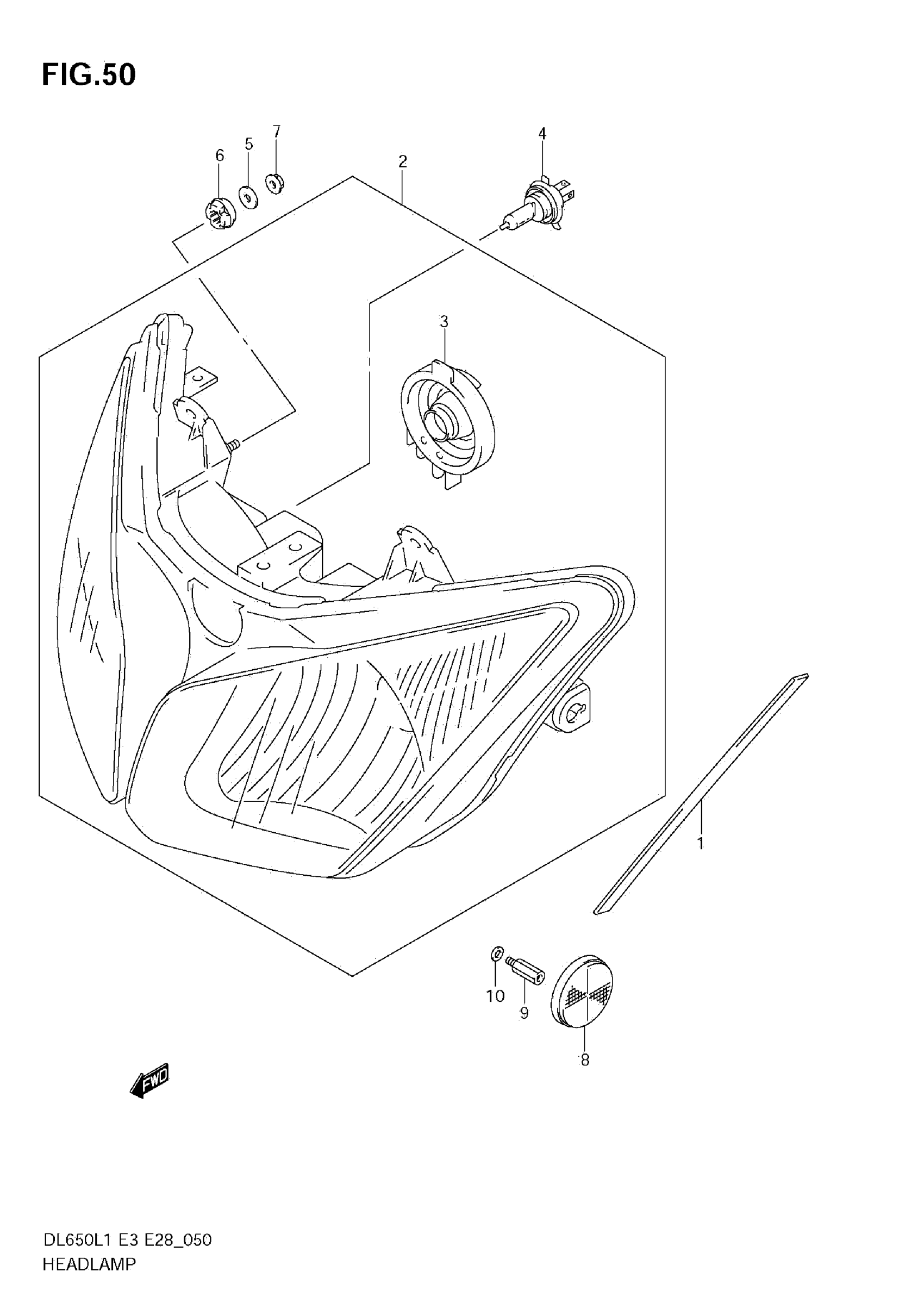

Suzuki DL650AL1 (2011) HEADLAMP Diagram

#

Description
Price

1

CUSHION, HEADLAMP

33652-06G10

$4.18

2

HEADLAMP ASSY

35100-06G30-999

$623.52

3

COVER, SOCKET

35125-77A00

$12.94

4

BULB (12V60/55W,H4)

09471-12182

$83.77

5

.WASHER (6.5X20X1.6)

09160-06088

$1.67

6

CUSHION

09320-09010

$2.80

7

NUT

08310-0006B

$2.37

8

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$13.94

9

BOLT (5X10)

09119-05023

$13.80

10

WASHER

08322-0105B

$2.24
