Description

Price

1

HEAD ASSY, CYLINDER FRONT

11101-17G20

Unavailable

2

PIN

09206-08001

$1.77

3

BOLT (6X40)

09103-06266

$2.13

4

GUIDE, VALVE (OS:0.3) | OPT

11115-18D72

$32.60

5

.GASKET,CYLINDER HEAD

11141-20F00

$40.97

6

PIN

04211-13189

$2.19

7

WASHER (10.5X19X2)

09160-10082

$1.62

8

BOLT (10X160)

09103-10272

$14.02

9

BOLT

07120-0640B

$3.04

10

BOLT (6X70)

09103-06103

$2.61

11

BOLT (6X12)

09103-06222

$2.28

12

GASKET (5.8X13X1.2)

09168-06023

$2.01

13

SPARK PLUG (CR8E) | NGK

09482-00456

$5.99

13

SPARK PLUG (U24ESR-N) | DENSO

09482-00457

$5.58

13

PLUG SPARK (CR9E) | OPT NGK

09482-00458

$5.75

13

SPARK PLUG (U27ESR-N) | OPT DENSO

09482-00459

$5.58

13

SPARK PLUG (CR7E) | OPT NGK

09482-00516

$5.75

13

SPARK PLUG (U22ESR-N) | OPT DENSO

09482-00515

$5.46

14

PIPE ASSY,INTAKE FRONT This part replaces 13101-17G10.

13101-17G11

$62.45

15

.O-RING (D:2.4,ID:47X42) This part replaces 09280-46006.

09280-46007

$6.33

16

SCREW

02122-0616B

$1.98

17

CLAMP

09402-62208

$6.02

18

COVER, CYLINDER HEAD FRONT

11171-17G10

$226.37

19

.GASKET,CYLINDER HEAD COVER

11173-19F01

$31.21

20

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

$4.07

21

BOLT (7X31)

09106-07010

$4.26

22

WASHER

11191-27E00

$3.72

23

CUSHION,HEAD COVER BOLT

11192-13E00

$3.97

24

JET

09493-80005

$17.57

25

O RING (D:1.2,ID:4)

09280-04004

$1.76

26

GASKET, 2ND AIR PASSAGE

11182-35F00

$3.01

27

PIN

09206-08007

$2.62

28

CAP,ENGINE MOUNTING RR RH This part replaces 11151-27G00.

11151-27G01

$4.17

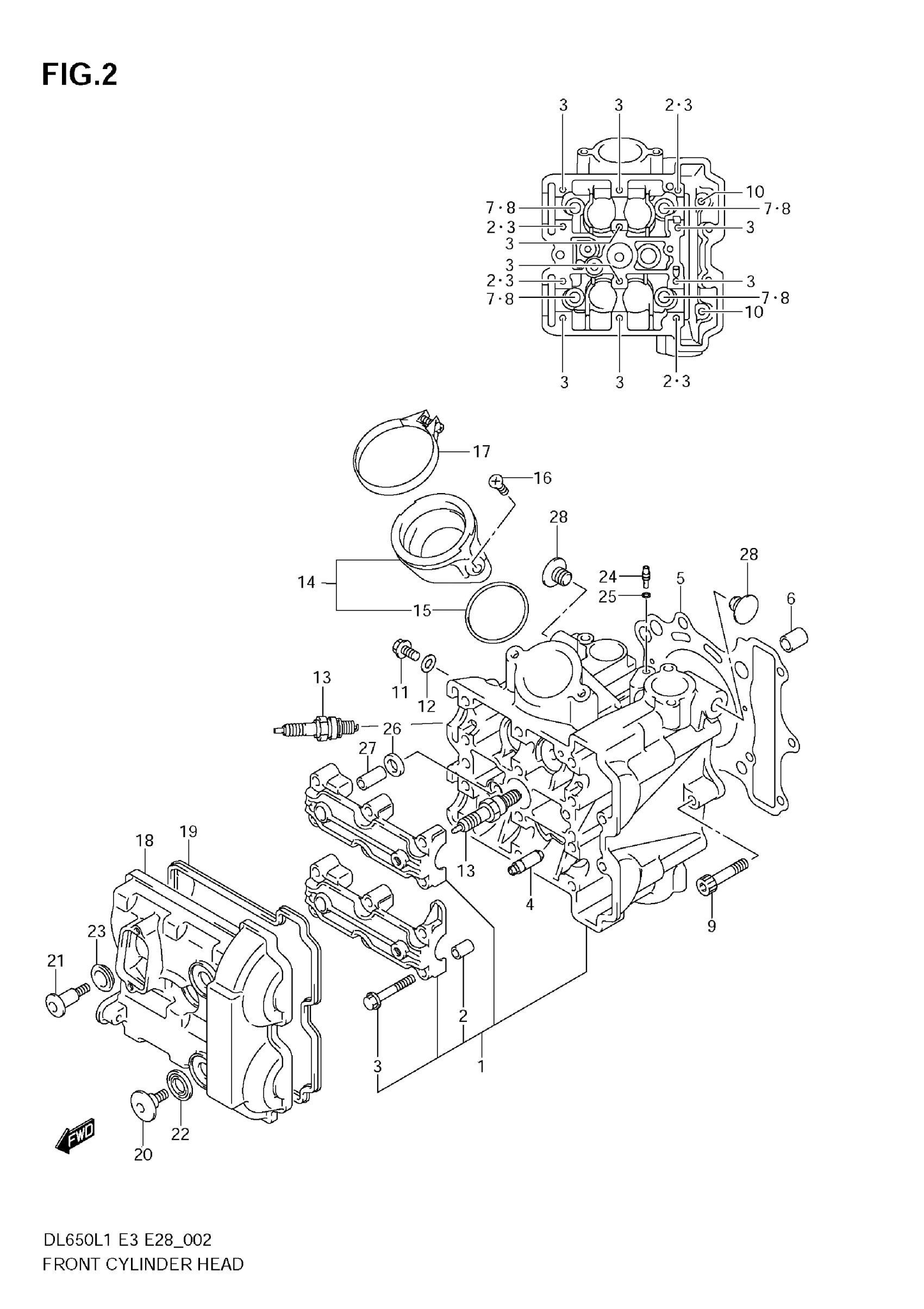

Suzuki DL650AL1 (2011) FRONT CYLINDER HEAD Diagram
