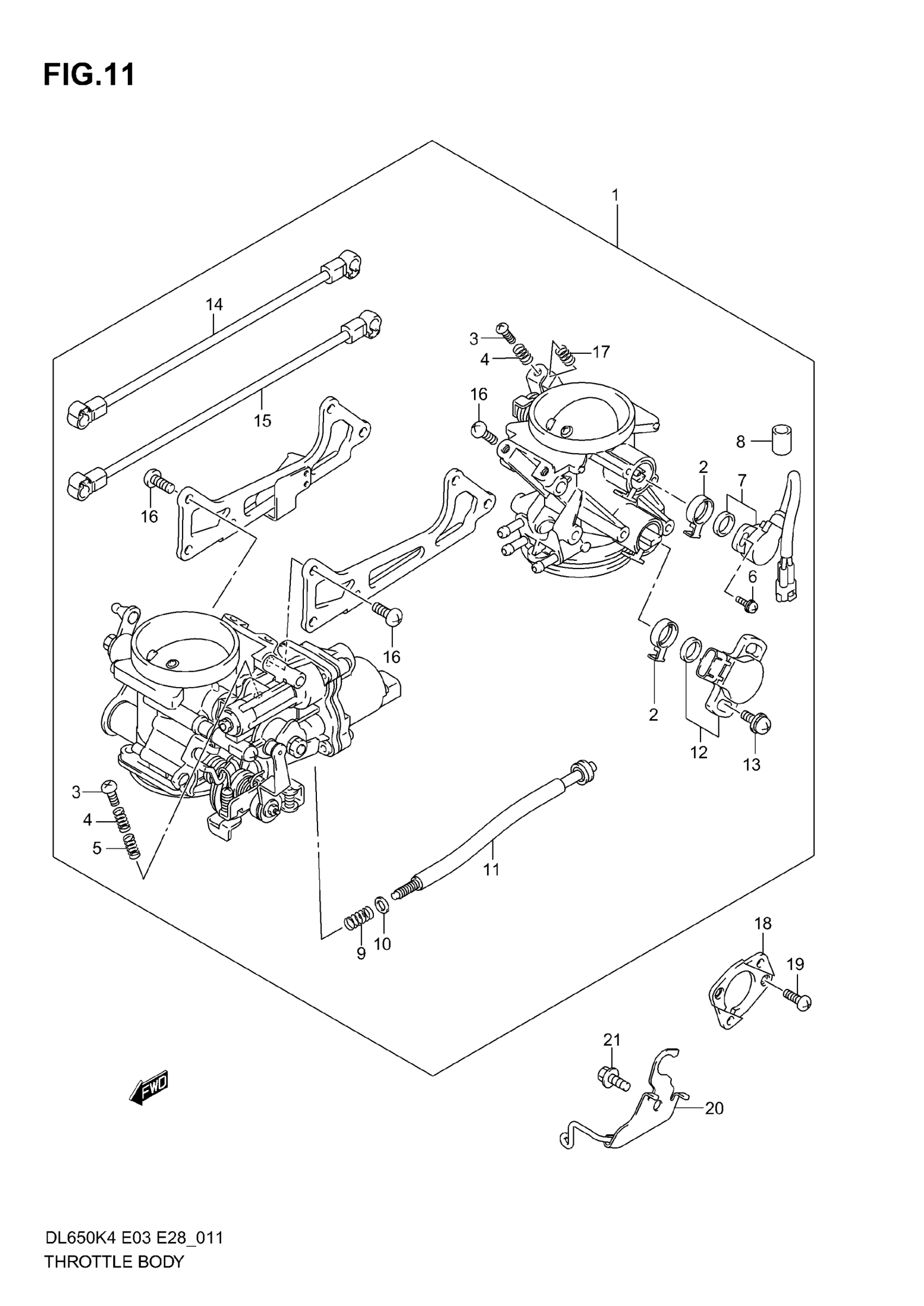

Suzuki DL650 (2006) THROTTLE BODY Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | E3,E28 This part replaces 13405-27G00.

13405-27G01

Unavailable

1

THROTTLE BODY | E33; Includes Item(s) 2 - 17 This part replaces 13405-27G10.

13405-27G11

Unavailable

2

RING

13311-06G00

Unavailable

3

SCREW

13548-42F00

Unavailable

4

SPRING

13271-44B00

$3.83

5

SPRING

13268-96111

$3.79

6

SCREW

13605-39F00

$5.10

7

SENSOR ASSY

13580-16G00

Unavailable

8

HOSE

13683-39F10

Unavailable

9

SPRING

13271-93011

$5.83

10

WASHER

13386-09410

Unavailable

11

ADJUST SCREW ASSY

13270-06G00

$101.35

12

SENSOR ASSY,THR This part replaces 13550-13D60.

13550-13D61

$84.54

13

SCREW

13605-02F00

$3.66

14

ROD ASSY

13552-27G00

Unavailable

15

ROD ASSY

13552-16G00

$33.12

16

SCREW

13602-06128

$2.92

17

SPRING

13268-89J00

$5.32

18

PLATE | MODEL K4/K5 This part replaces 13627-16G00.

13627-16G30

Unavailable

18

PLATE | MODEL K6

13627-16G30

Unavailable

19

SCREW

02112-04107

$1.61

20

PLATE, IDLE ADJUST

13279-27G00

Unavailable

21

BOLT This part replaces 01500-06123.

01500-0612A

$1.85
