Description

Price

1

WHEEL, REAR, 17M/CXMT4.00 (BLACK) This part replaces 64111-06G00-019.

64111-06G01-019

$1,214.77

2

DISC,REAR BRAKE

69211-06G00

$345.22

3

BOLT

09106-08160

$3.32

4

SPACER, RR AXLE RH

64741-10F00

$27.55

5

DRUM, RR SPROCKET This part replaces 64610-35F10.

64610-35F40

$346.25

6

ABSORBER, RR HUB SHOCK

64651-35F10

$11.31

7

AXLE, REAR

64711-03F10

Unavailable

8

RETAINER, RR SPROCKET DRUM

64733-06G00

$36.60

9

SPACER, RR AXLE LH

64751-27G00

$34.65

10

NUT

08314-40187

$5.27

11

WASHER, RR AXLE NUT

09160-18030

$2.67

12

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.41

13

SPACER, REAR HUB BEARING

09180-20112

$40.70

14

BEARING (32X65X17) This part replaces 09262-32007.

09262-32024

$36.61

15

SEAL, REAR SPROCKET DRUM OIL

09285-39001

$9.86

16

BEARING This part replaces 08123-62047.

08123-6204B

$16.42

17

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

$11.60

18

SPROCKET, RR (47T-525)

64511-27G00

$91.48

19

NUT

08319-31107

$2.80

20

TIRE RR(150/70R | TRAIL WING 152 RADIAL F This part replaces 65110-06G10.

65110-06G12

$251.17

21

VALVE ASSY, WHEEL RIM

43130-24A00

$8.46

22

BALANCER, WHEEL NO.1

43222-73H10

$6.57

22

BALANCER, WHEEL NO.2

43224-73H10

$4.02

22

BALANCER, WHEEL NO.3

43226-73H10

$4.69

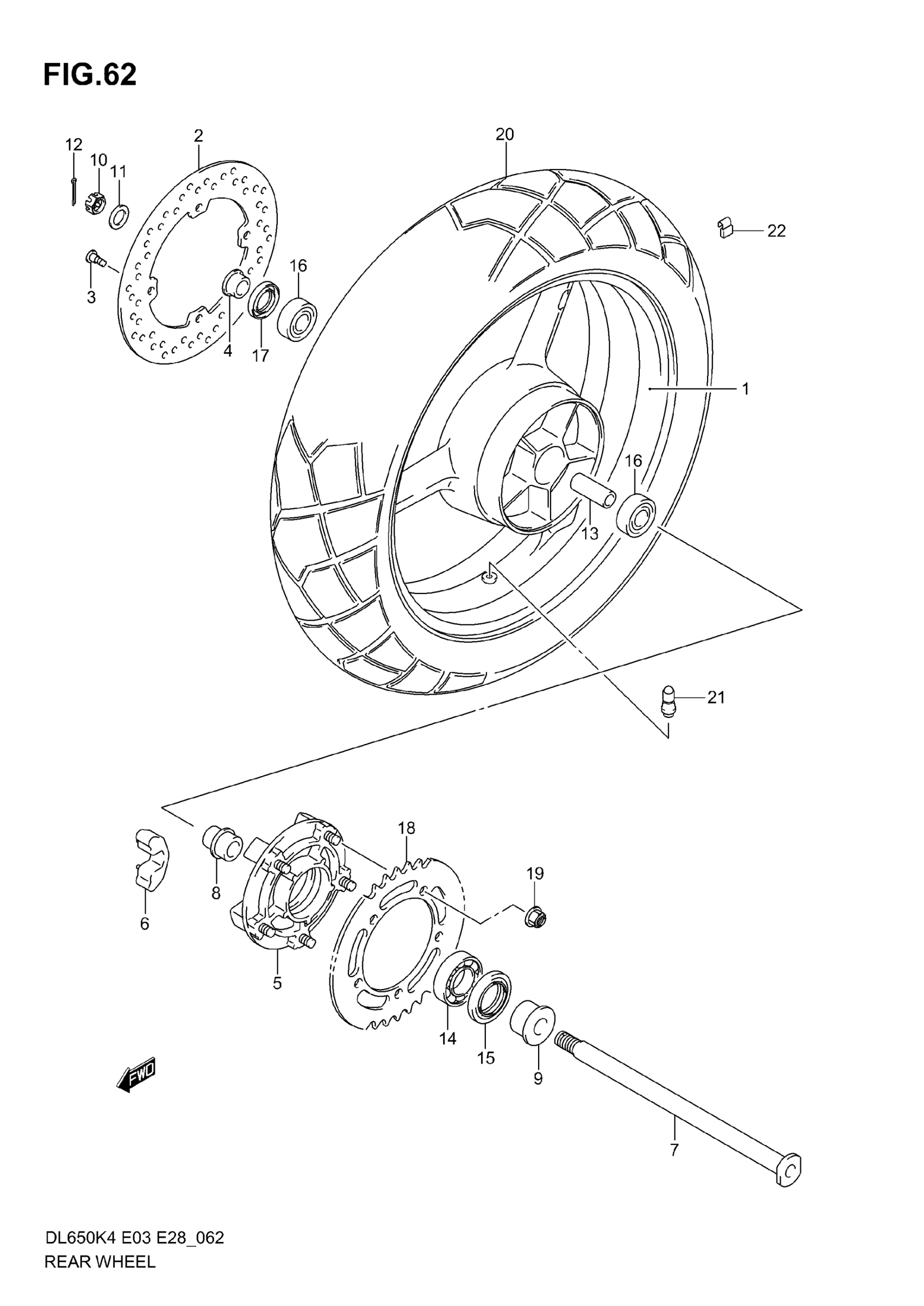

Suzuki DL650 (2006) REAR WHEEL Diagram
