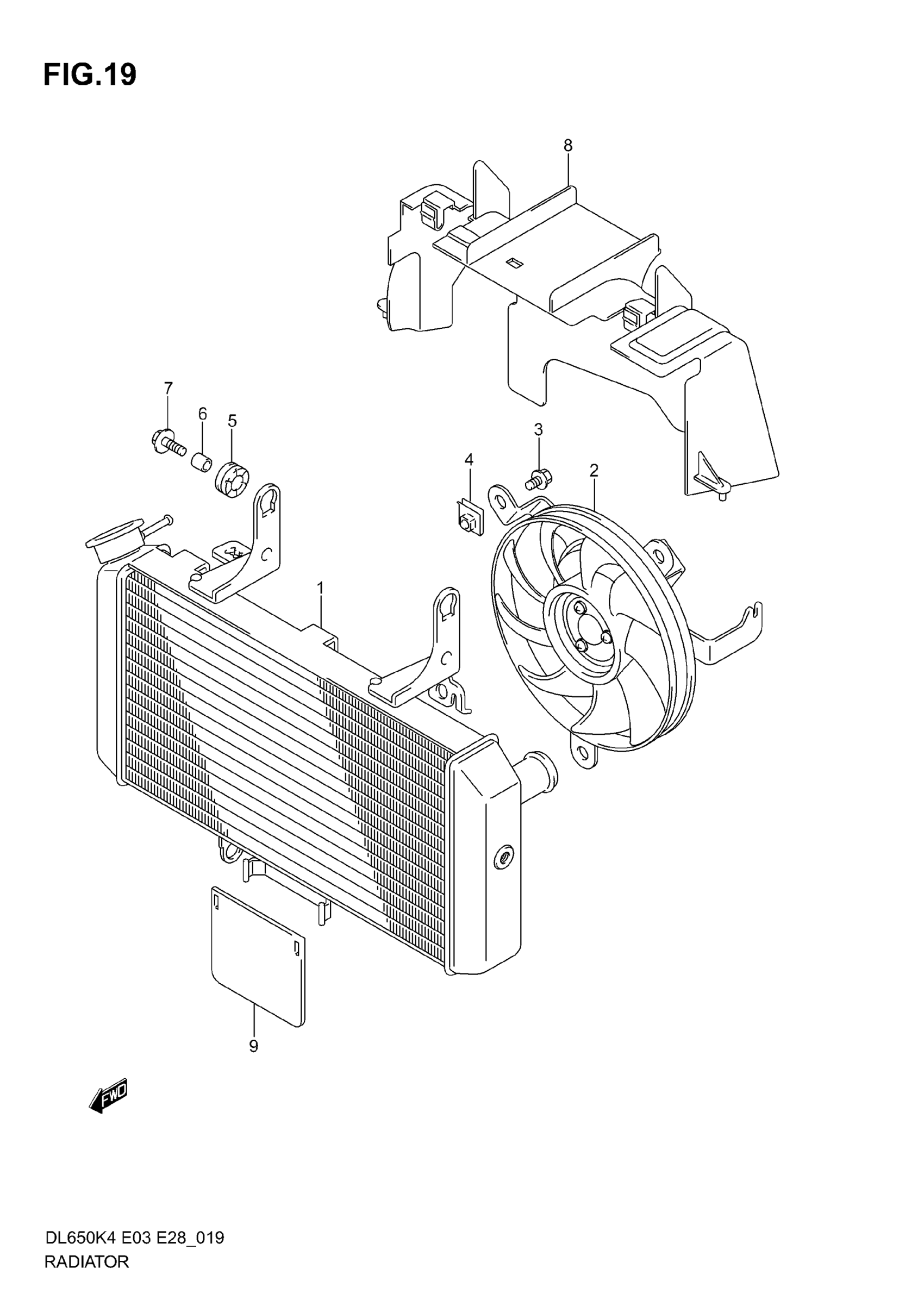

Suzuki DL650 (2006) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-27G00

$1,094.05

2

FAN ASSY, RADIATOR

17800-27G00

Unavailable

3

BOLT This part replaces 01550-06103.

01550-0610A

$2.01

4

NUT

09148-06015

$2.82

5

CUSHION

09320-10051

$2.91

6

SPACER (6.5X10X12)

09180-06290

$2.09

7

BOLT (6X25)

09118-06097

$2.57

8

SHIELD, RADIATOR HEAT

17760-27G00

Unavailable

9

RUBBER,RADIATOR UNDER

17781-17G00

$11.18
