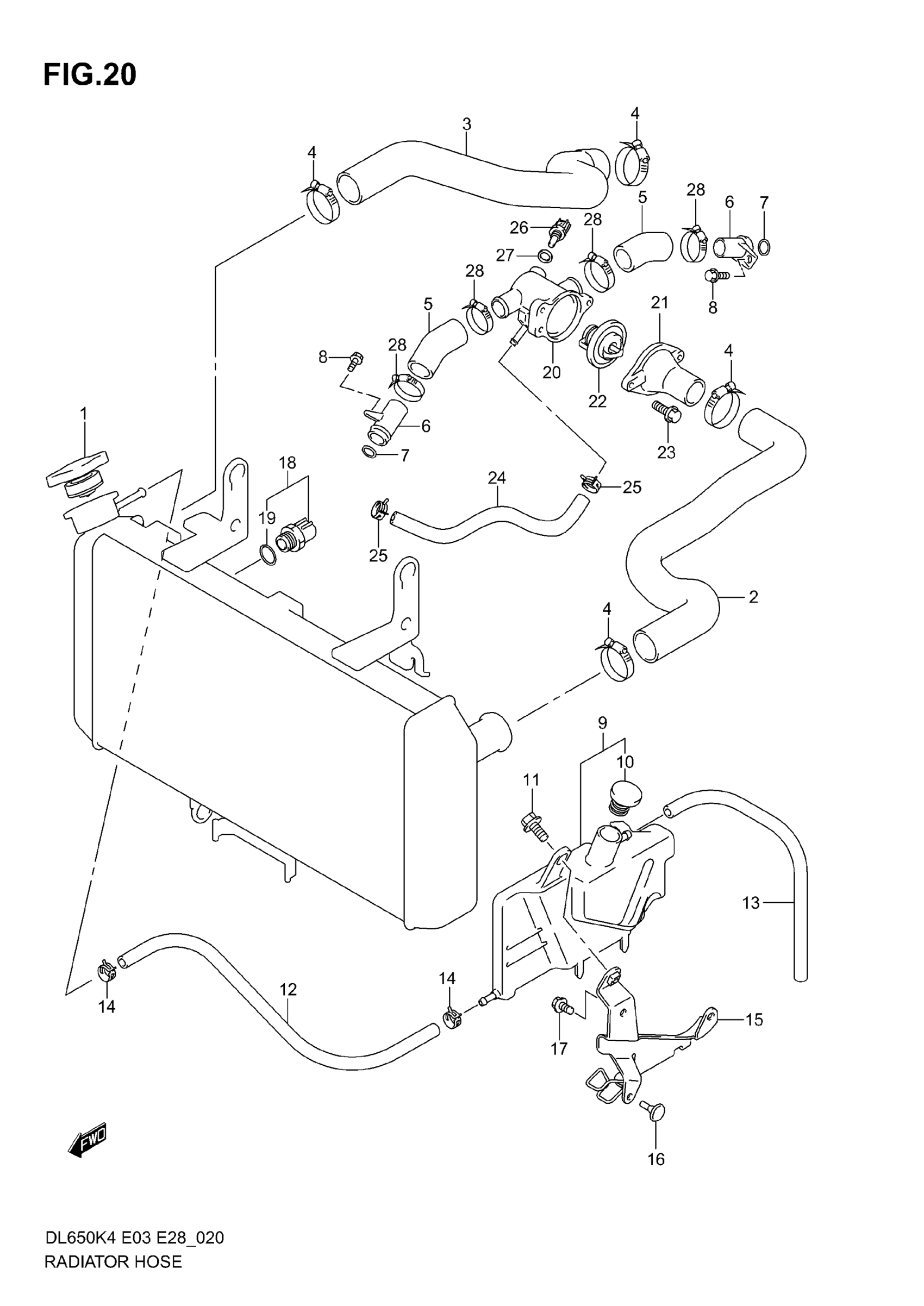

Suzuki DL650 (2006) RADIATOR HOSE Diagram

#

Description
Price

1

CAP, RADIATOR This part replaces 17730-12C20.

17730-08J00

$40.65

2

HOSE, RADIATOR INLET

17851-27G00

$47.90

3

HOSE, RADIATOR OUTLET

17852-27G00

$26.39

4

CLAMP

09402-38511

$11.00

5

HOSE,CONNECTOR INLET

17853-19F00

$14.11

6

UNION, CONNECTOR HOSE | MODEL K4 This part replaces 17890-06G00.

17890-06G20

$14.20

6

UNION, CONNECTOR HOSE | MODEL K5/K6

17890-06G20

$14.20

7

O RING

09280-18009

$5.42

8

BOLT This part replaces 07130-06123.

07130-0612A

$2.58

9

TANK ASSY, RESERVOIR | Includes Item(s) 10

17910-27G00

Unavailable

10

.CAP,RESERVOIR TANK

17931-02FA0

$5.32

11

BOLT

09111-06085

$4.28

12

HOSE, RESERVOIR TANK INLET | L:2000!620

09352-50901-00B

$34.43

13

HOSE, RESERVOIR TANK OVERFLOW, NO.1 | L:2000!780

09352-50901-00B

$34.43

14

CLIP

09401-08411

$1.82

15

BRACKET, RESERVOIR TANK

17920-27G00

Unavailable

16

CUSHION

09321-06026

$2.80

17

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$2.01

18

SWITCH COMP,FAN | Includes Item(s) 19 This part replaces 17680-50F10.

17680-50F11

$88.25

19

O RING

17689-50F00

$2.63

20

CONNECTOR,THERMOSTAT INLET

17662-02F11

$72.57

21

CAP,THERMOSTAT CONNECTOR

17663-17G00

$33.12

22

THERMOSTAT,WATER This part replaces 17670-06G50.

17670-06G51

$24.64

23

BOLT This part replaces 01550-06163.

01550-0616A

$2.01

24

HOSE, CONNECTOR TO WATER PUMP

17856-19F00

$19.32

25

CLIP This part replaces 09401-12409.

09401-12414

$3.09

26

SENSOR, WATER TEMPERATURE

13650-57F00

$136.53

27

GASKET

09168-12017

$2.01

28

CLAMP

09402-28511

$6.40
