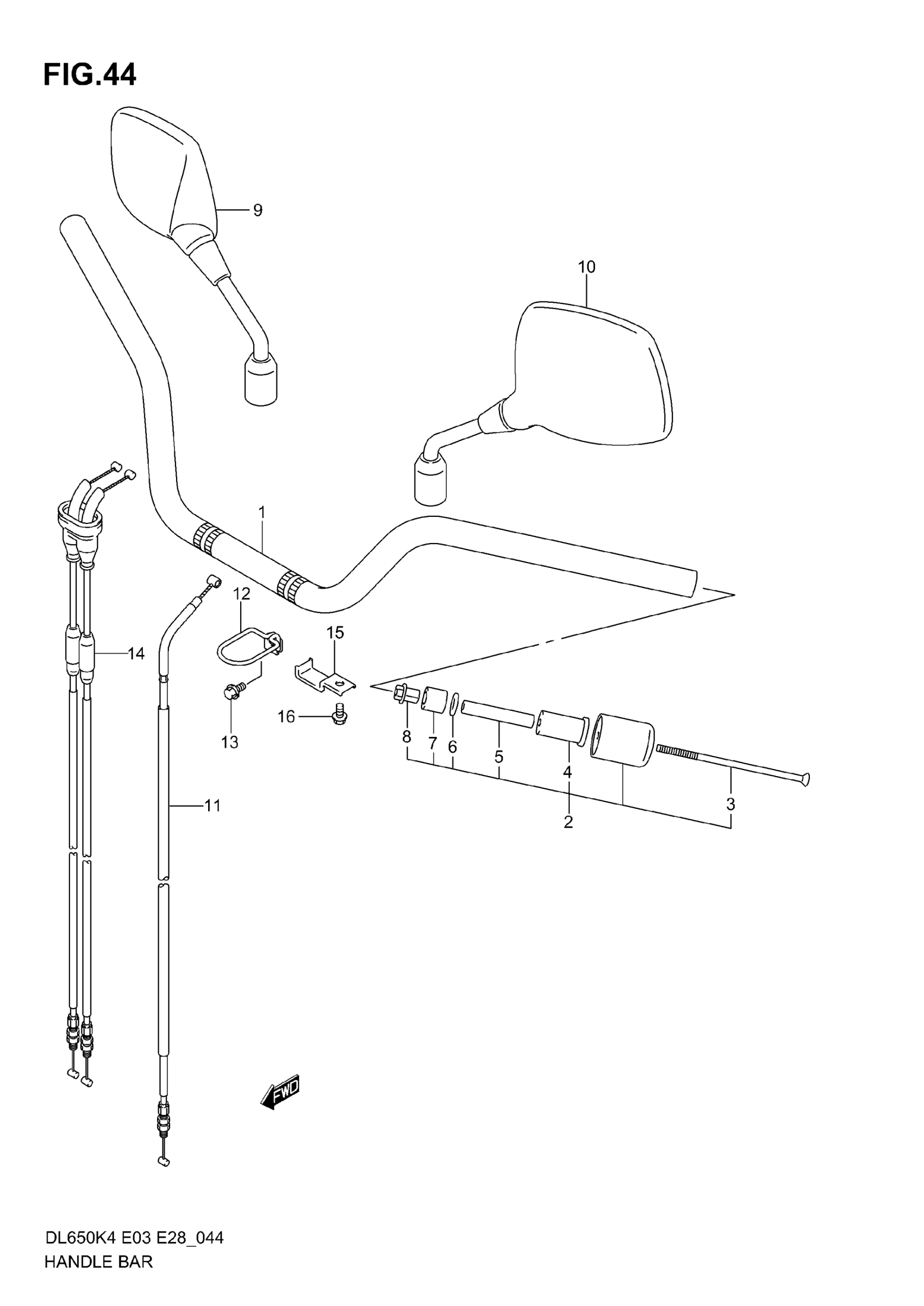

Suzuki DL650 (2006) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR | MODEL K4

56111-27G00

Unavailable

1

HANDLEBAR | MODEL K5/K6

56111-27G10

$198.75

2

BALANCER SET, HANDLEBAR | Includes Item(s) 3 - 8 This part replaces 56200-16840.

56200-16843

$34.56

3

SCREW

09127-06018

$3.21

4

EXPANDER, OUTER

56272-06G00

$10.78

5

SPACER

56276-17D00

$5.00

6

WASHER

09160-06131

$2.62

7

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

$4.64

8

NUT This part replaces 56273-10G00.

56273-10G10

$8.27

9

MIRROR ASSY, REAR VIEW RH This part replaces 56500-04F20.

56500-04F23

$175.16

10

MIRROR ASSY, REAR VIEW LH This part replaces 56600-04F20.

56600-04F23

$194.30

11

CABLE ASSY, CLUTCH

58200-27G00

$28.33

12

GUIDE, CLUTCH CABLE This part replaces 58620-27G00.

58620-27G20

Unavailable

13

BOLT This part replaces 01547-06123.

01547-0612B

$1.25

14

CABLE ASSY, THROTTLE

58300-27G01

$152.47

15

GUIDE, CABLE

58621-27G10

Unavailable

16

SCREW, REAR SIDE BRKT This part replaces 02162-06123.

02162-0612A

$1.93
