Description

Price

1

GRIP,THROTTLE This part replaces 57110-45D02.

57110-45D03

$26.02

2

CASE ASSY,THROT | Includes Item(s) 3 This part replaces 57100-42F00.

57100-42F01

$61.78

3

BOLT This part replaces 07130-05253.

07130-0525B

$2.70

4

LEVER ASSY, BRAKE | Includes Item(s) 5 - 6

57300-33E01

$44.31

5

BOLT

57431-17C00

$6.80

6

NUT This part replaces 08316-10063.

08316-1006B

$2.57

7

SWITCH ASSY,FR BRAKE | Includes Item(s) 8 This part replaces 57460-17C11.

57460-14J02

$36.79

8

SCREW

57465-17C00

$2.37

9

GRIP, LH (BLACK) This part replaces 57211-22D01.

57211-22D02-291

$13.93

10

LEVER ASSY,CLUT | Includes Item(s) 11 - 17 This part replaces 57500-10D01.

57500-10D31

$42.46

11

LEVER

57620-27A31

$20.86

12

BOLT, PIVOT

57531-14A00

$7.35

13

.NUT This part replaces 08319-21063.

08319-2106B

$2.38

14

ADJUSTER, CABLE

57441-11010

$5.38

15

NUT, CABLE

57442-11010

$2.80

16

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.82

17

.WASHER This part replaces 08322-01063.

08322-0106B

$2.31

18

COVER,CLUTCH LE This part replaces 57661-45C00.

57661-45C01

$7.81

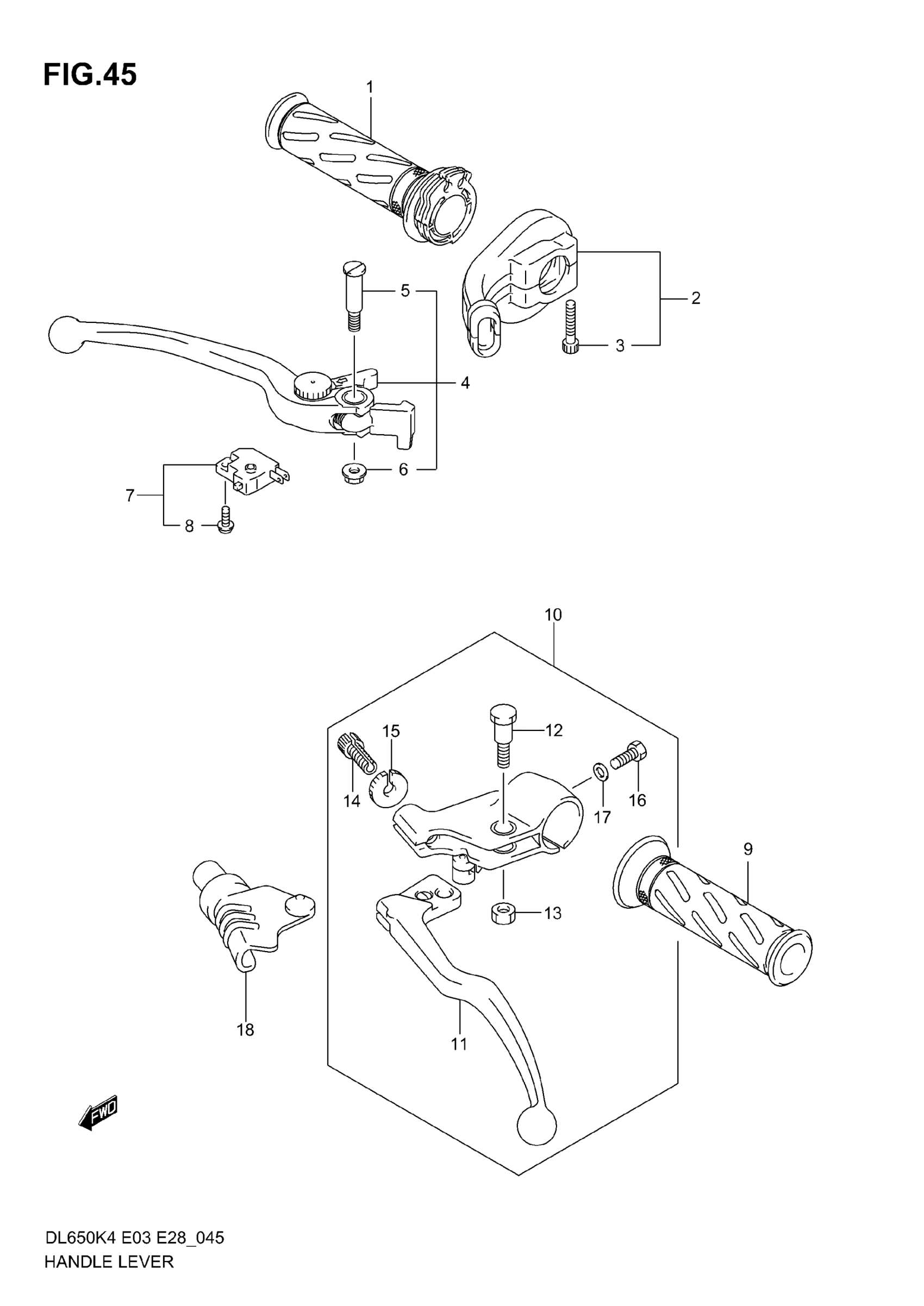

Suzuki DL650 (2006) HANDLE LEVER Diagram
