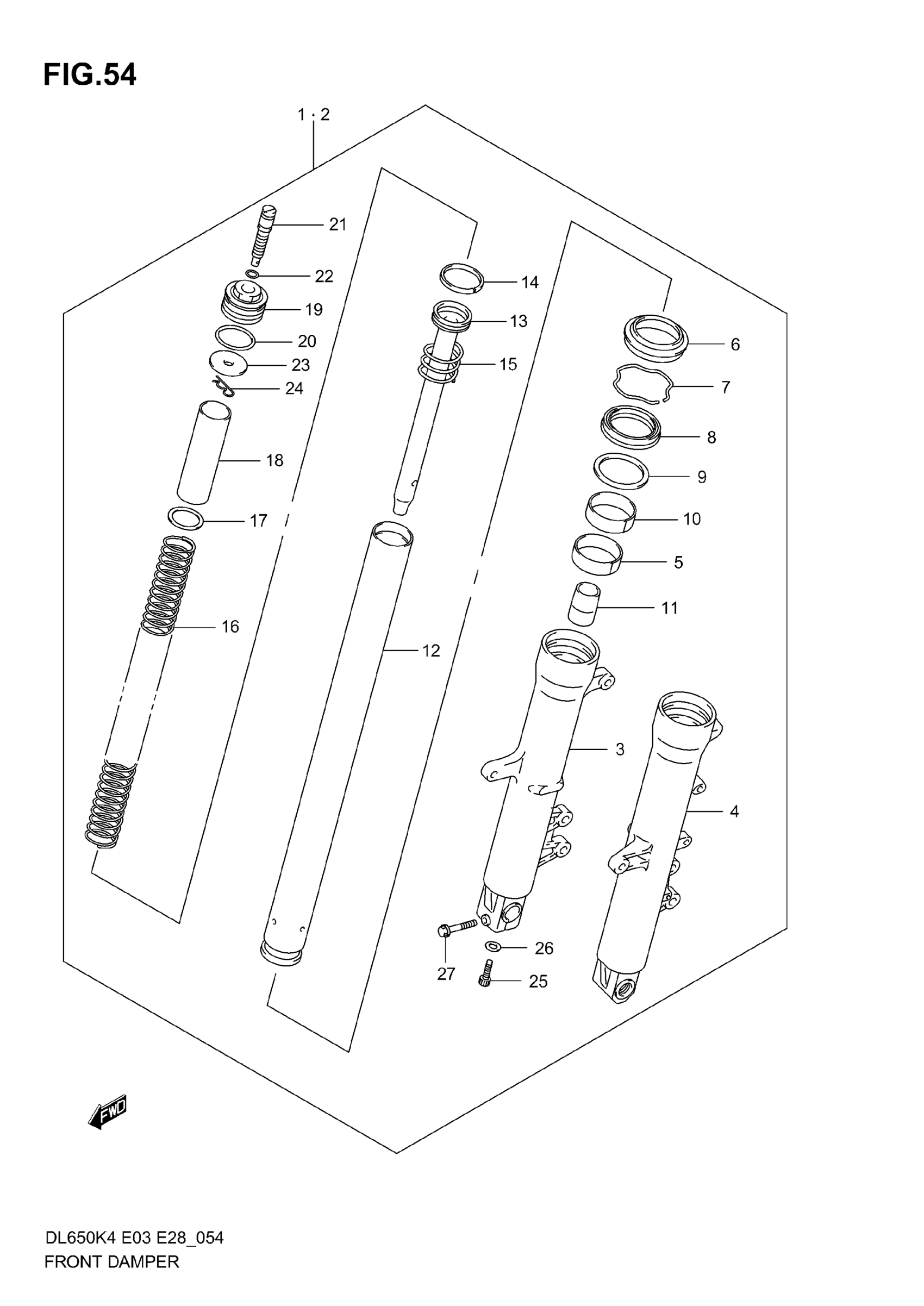

Suzuki DL650 (2006) FRONT DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-27G00

Unavailable

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 27

51104-27G00

Unavailable

3

TUBE, OUTER RH

51131-27G00

Unavailable

4

TUBE, OUTER LH

51141-27G00

Unavailable

5

.BUSH, SLIDE This part replaces 51121-03F00.

51121-11J10

$20.18

6

.SEAL, DUST

51173-27G00

$25.43

7

RING, STOPPER

51556-38B00

$6.91

8

.OIL SEAL This part replaces 51553-27G00.

51153-27G00

$22.07

9

.SPACER, SEAL

51168-17C00

$6.18

10

BUSH, GUIDE

51152-13E00

$18.88

11

PIECE, OIL LOCK

51195-27G00

$34.12

12

TUBE, INNER

51110-27G00

$535.83

13

CYLINDER

51146-27G00

Unavailable

14

RING, PISTON

51196-27G00

$7.60

15

SPRING, REBOUND

51177-14D00

$14.75

16

SPRING, FRONT

51171-27G00

Unavailable

17

SEAT, SPRING, LOWER

51186-17C00

$8.52

18

COLLAR, SPRING

51176-27G00

Unavailable

19

BOLT, FORK

51189-27G00

$45.27

20

O RING

51117-17C00

$5.85

21

ADJUSTER BOLT, SPRING

51185-27G00

$40.63

22

O RING (D:2.5,ID:13.8) This part replaces 51187-14D00.

09280-14011

$4.44

23

SEAT, SPRING

51186-12C00

$8.52

24

PIN, SEAT SPRING

51188-32B00

Unavailable

25

BOLT

51147-48130

$4.15

26

GASKET

51148-36011

$3.41

27

BOLT | RH

51328-03FK0

$7.52
