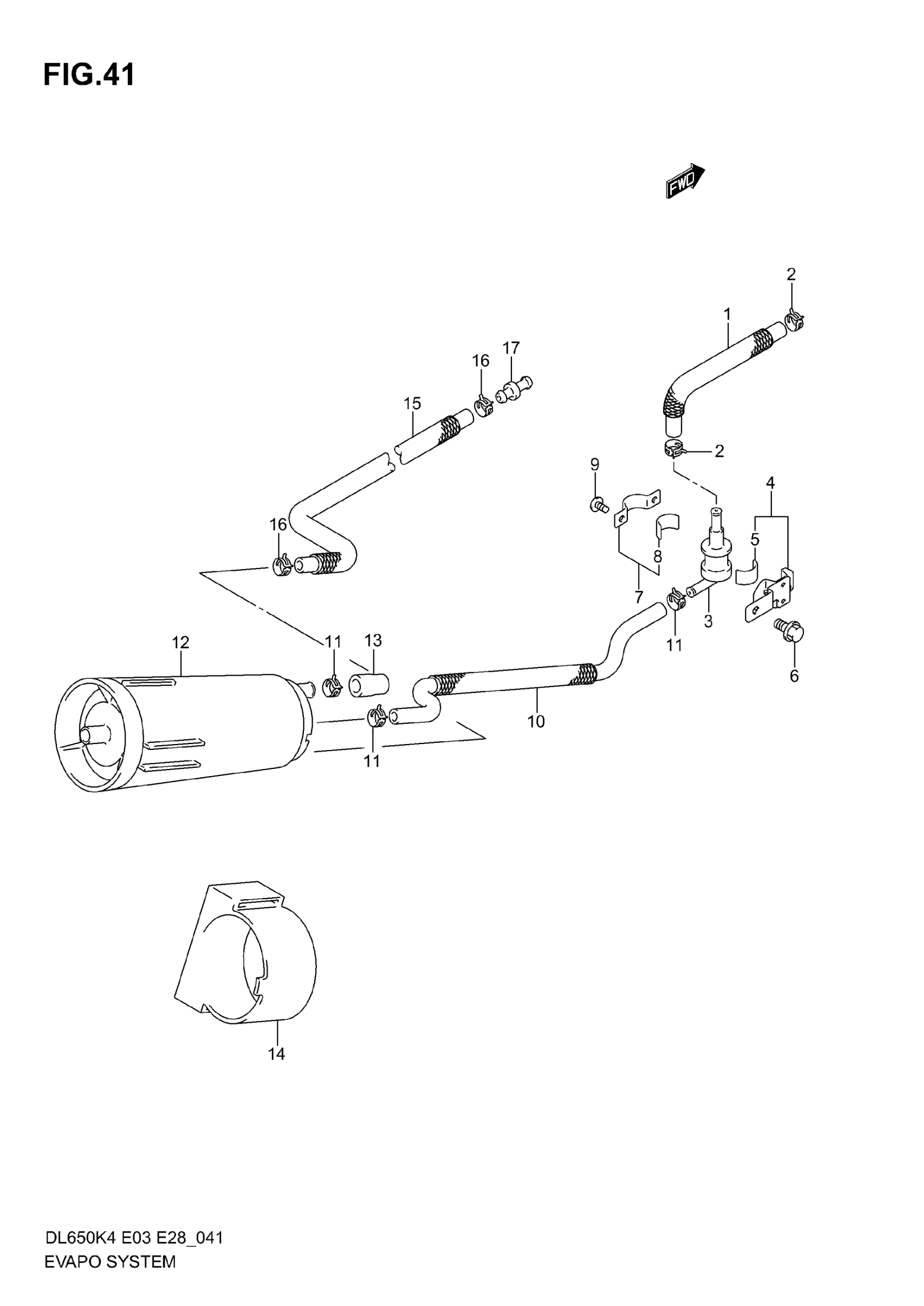

Suzuki DL650 (2006) EVAPO SYSTEM (E33) Diagram

#

Description
Price

1

HOSE, TANK & VALVE

44434-06G00

Unavailable

2

CLIP

09401-11413

$2.31

3

VALVE FUEL TANK BREATHER

44240-17C00

$73.01

4

BRACKET, BREATHER VALVE | Includes Item(s) 5

44890-06G00

Unavailable

5

CUSHION (10X30X2)

44894-24A00

$1.86

6

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$2.01

7

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 8

44892-24A00

$5.10

8

CUSHION (10X30X2)

44894-24A00

$1.86

9

SCREW This part replaces 02142-04083.

02142-0408B

$1.76

10

HOSE, VALVE & CANISTER

44435-27G00

Unavailable

11

CLIP

09401-11413

$2.31

12

CANISTER ASSY CHARCOAL

17210-26E00

$360.67

13

CAP

09251-07003

$2.77

14

CUSHION,CANISTER This part replaces 44883-06G00.

44883-06G01

$17.18

15

HOSE, PURGE This part replaces 44436-27G00.

44436-06G00

Unavailable

16

CLIP

09401-12404

$2.44

17

JOINT

09367-06009

Unavailable
