Description

Price

1

GEAR ASSY, PRIMARY DRIVEN

21200-17860

$444.97

2

HUB,CLUTCH SLEEVE

21411-44101

$72.05

3

SPRING,CLUTCH

21413-17G01

$6.41

4

PLATE, CLUTCH DRIVE NO.2

21442-29F00

$21.81

5

PLATE, CLUTCH DRIVE

21441-29F20

$21.81

6

PLATE,CLUTCH DRIVEN (T:1.6)

21451-28C31

$11.30

7

DISC, CLUTCH PRESSURE

21462-14301

$66.97

8

SEAT,WAVE WASHER

21471-17G00

$13.27

9

WASHER,CLUTCH PLATE WAVE

21472-17G00

$23.92

10

BOLT (6X30) | MODEL K4/K5

09116-06185

$2.79

10

BOLT (6X30) | MODEL K6

09116-06203

$2.98

11

NUT

09140-20001

$3.13

12

WASHER (20X36X3)

09160-20067

$7.84

13

LOCK WASHER This part replaces 09167-20006.

09167-20009

$2.09

14

ROD,PUSH,R

23110-44111

$15.50

15

ROD, CLUTCH PUSH LH

23111-24A01

$12.73

16

PIECE, CLUTCH PUSH

23121-44100

$29.07

17

SCREW ASSY, CLUTCH RELEASE | Includes Item(s) 18 - 19

23200-11D00

$63.27

18

SCREW

09134-06010

$2.90

19

.NUT

08310-00067

$1.91

20

SUPPORT, CLUTCH RELEASE

23226-19F01

$8.55

21

WASHER (15.5X28X1)

09160-15045

$3.62

22

BEARING (15X28X2)

09263-15003

$7.70

23

OIL SEAL (6X34X5.5)

09285-06015

$7.42

24

SPRING

09443-08001

$2.80

25

BOLT This part replaces 01500-06163.

01500-0616A

$1.82

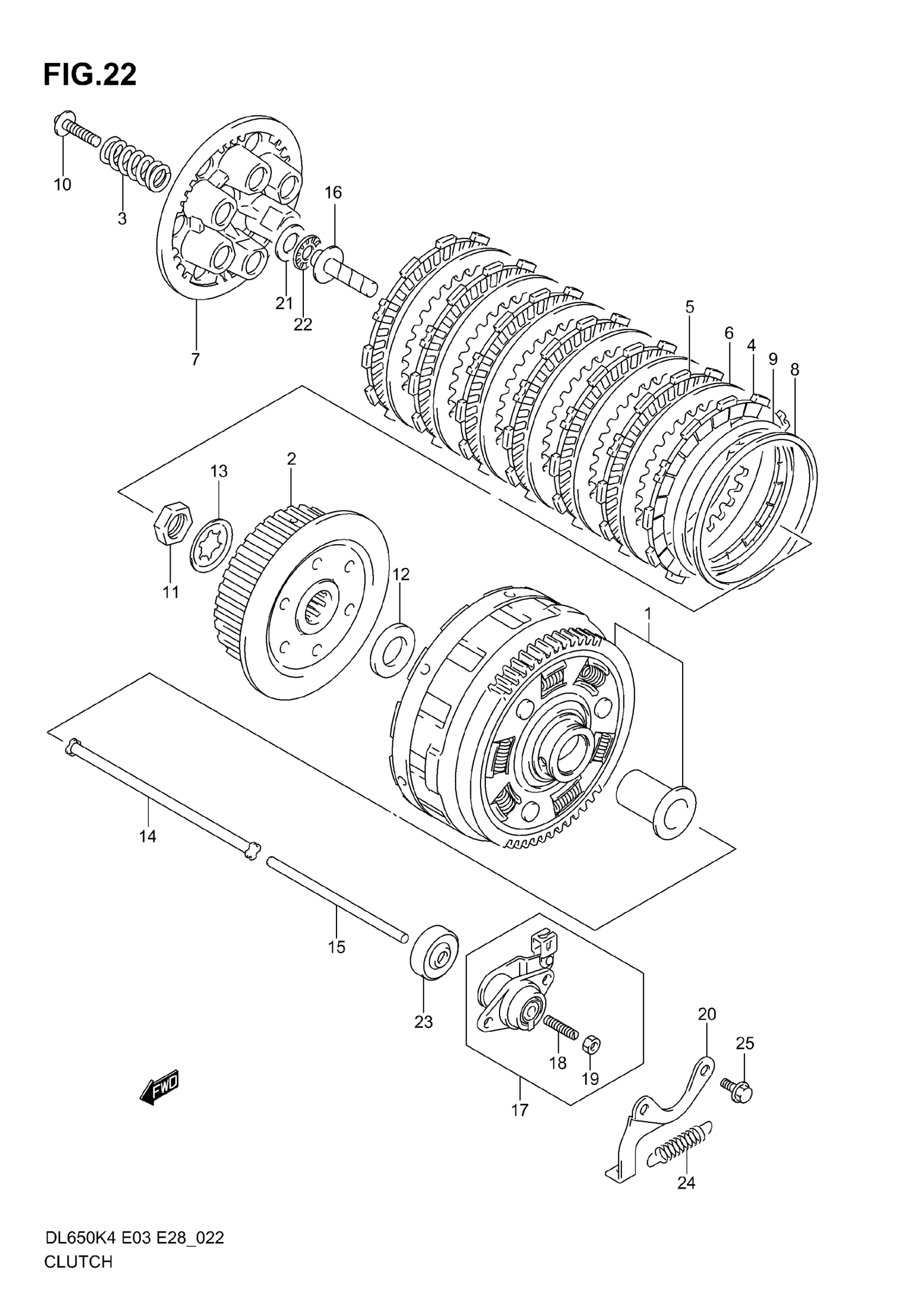

Suzuki DL650 (2006) CLUTCH Diagram
