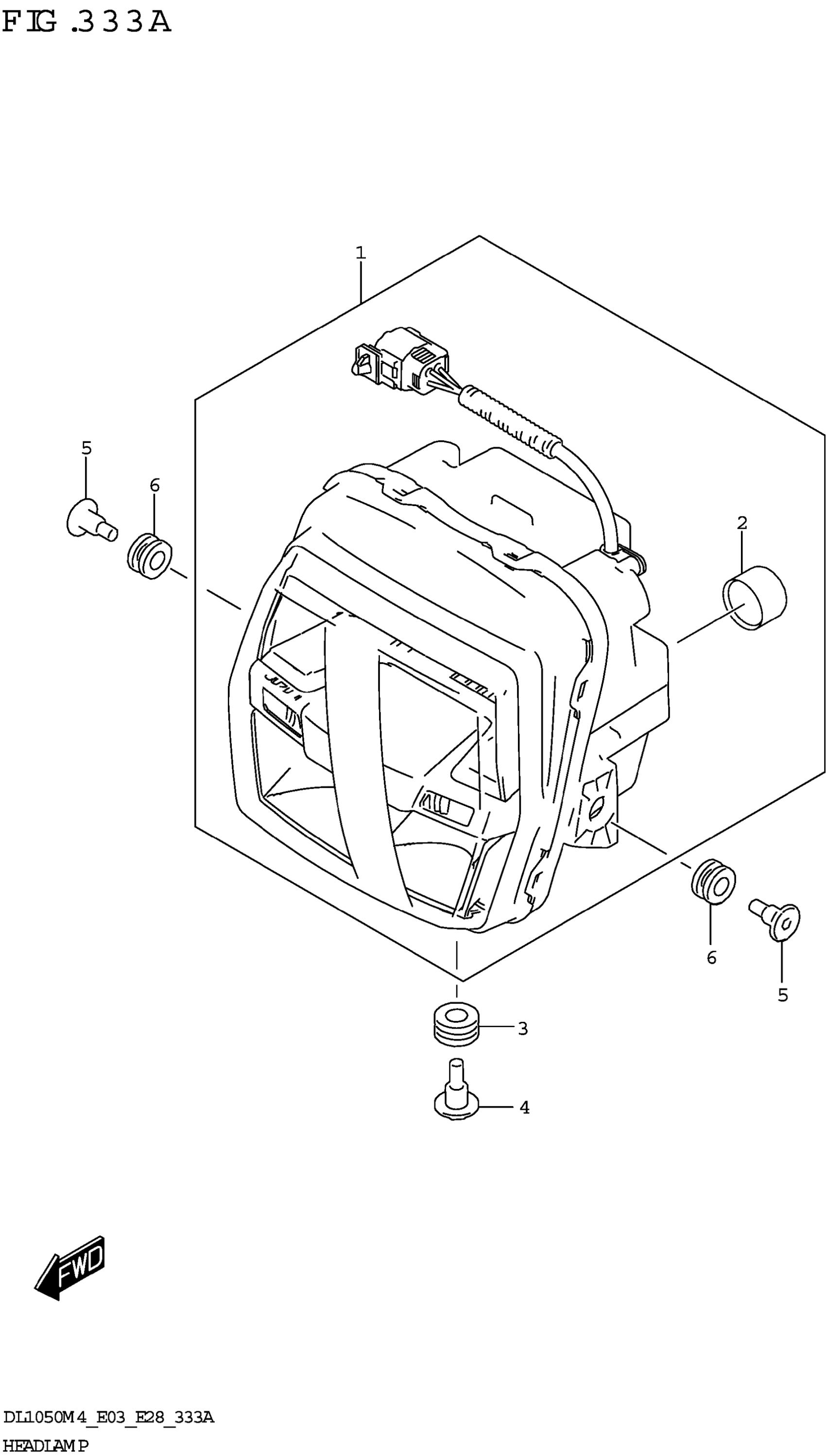

Find the part on the Headlamp diagram for your 2024 Suzuki DL1050RJM4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Suzuki DL1050RJM4 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY This part replaces 35100-07L11.

35100-07LA0

1
Out of stock

2

.CAP

35529-77R00

1
Out of stock

3

CUSHION (10X20X10)

09320-10078

1
Out of stock

4

BOLT,HEADLAMP

09139-06231

1
Out of stock

5

BOLT,HEADLAMP

09139-06232

2
Out of stock

6

CUSHION (9X18X10)

09320-09501

2
Out of stock
