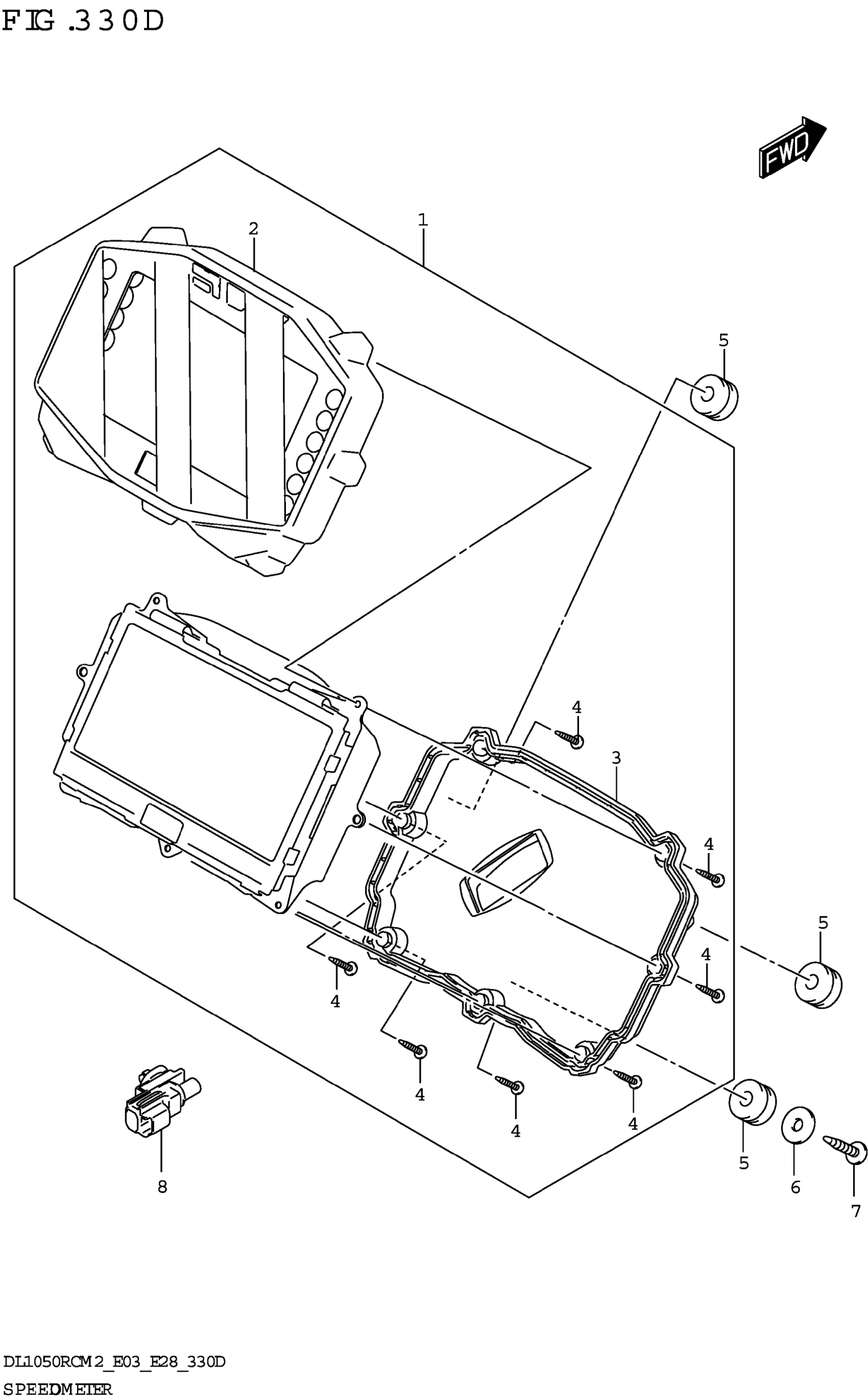

Suzuki DL1050RCM2 (2022) SPEEDOMETER (DL1050RC:E03,E33) Diagram

#

Description

Price

1

SPEEDOMETER ASSY

34100-06LB0

$1,429.97

2

.CASE ASSY,UPPER

34150-06LA0

$138.47

3

.CASE ASSY,LOWER

34111-17K00

$77.55

4

SCREW

34183-10C00

$2.19

5

CUSHION,SPEEDOMETER

34189-08J01

$3.38

6

WASHER (4.5X16X1.2)

09160-04026

$1.86

7

SCREW

03541-0416A

$1.43

8

SENSOR,AIR TEMP

95643-58J00

$57.00
