Description

Price

1

STAND,PROP

42310-31J11

$152.67

2

BOLT (10X37.5)

09111-10058

$6.09

3

NUT, PROP STAND

42321-03FK0

$4.73

4

SPRING | NO.1

09443-14058

$5.17

5

SPRING | NO.2

09443-19011

$5.26

6

BRACKET,PROP STAND

42330-31J00

$125.17

7

BOLT

01550-1235A

$4.65

8

PEDAL, BRAKE

43111-31J00

$93.83

9

WASHER (18X24X1)

09160-18022

$2.80

10

SPRING

09448-41005

$3.95

11

CIRCLIP

08331-3118A

$2.30

12

BRACKET,STOP LAMP SWITCH

43251-31J00

$8.43

13

BOLT

01550-0612A

$1.97

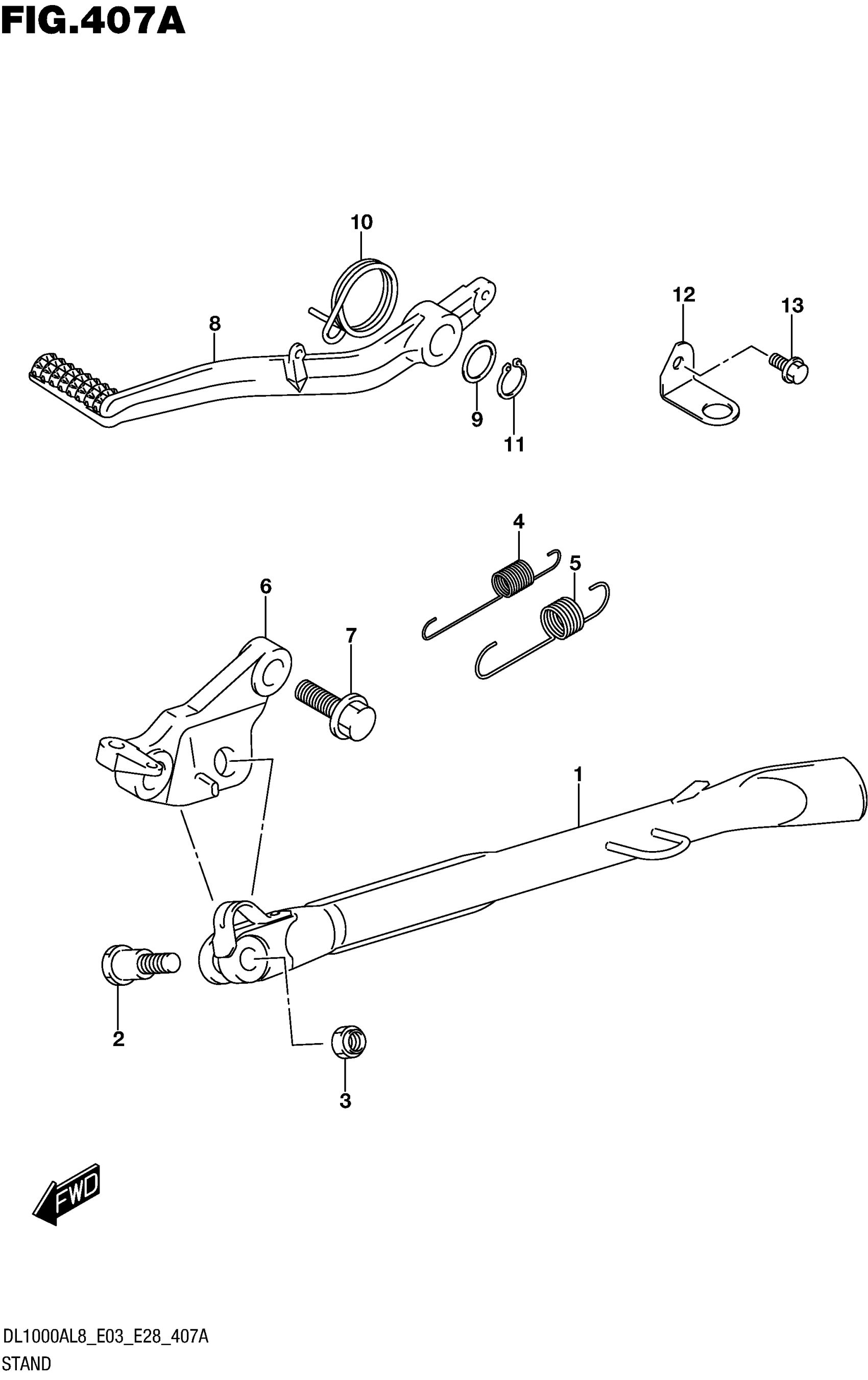

Suzuki DL1000XAL8 (2018) STAND Diagram

STAND,PROP

BOLT (10X37.5)

NUT, PROP STAND

SPRING | NO.1

SPRING | NO.2

BRACKET,PROP STAND

BOLT

PEDAL, BRAKE

WASHER (18X24X1)

SPRING

CIRCLIP

BRACKET,STOP LAMP SWITCH

BOLT
