2018 Suzuki DL1000XAL8 Front Fork Damper Diagram

← All diagrams

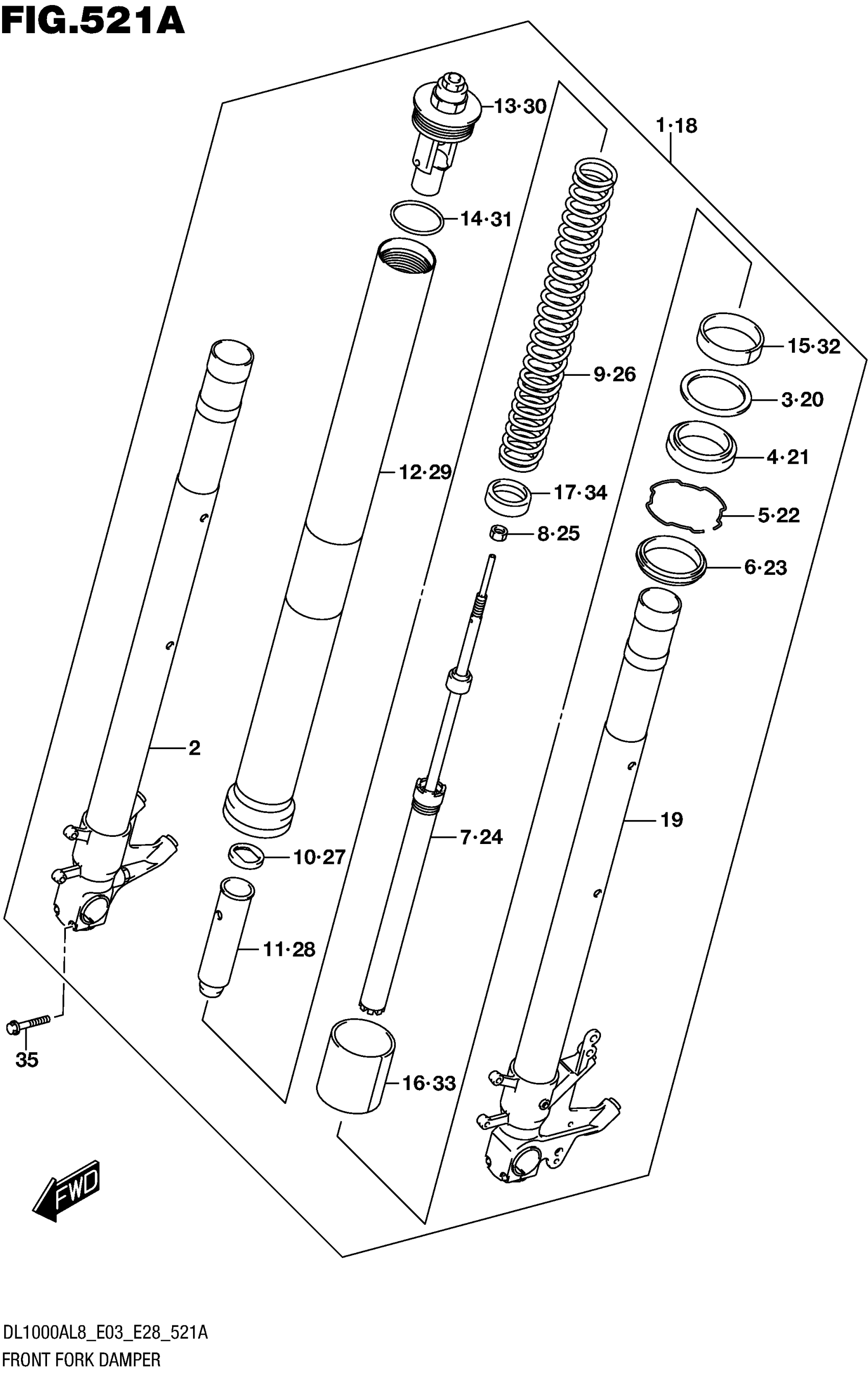

Find the part on the Front Fork Damper diagram for your 2018 Suzuki DL1000XAL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki DL1000XAL8 Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, FRONT FORK RH

51103-31J30

1
Out of stock

2

.TUBE,INNER,R This part replaces 51110-31J20.

51110-31J21

1
Out of stock

3

.WASHER

51158-14200

1
Out of stock

4

.OIL SEAL

51153-44G00

1
Out of stock

5

.RING, OIL SEAL STOPPER

51156-14200

1
Out of stock

6

.SEAL, DUST

51173-02FA0

1
Out of stock

7

.CYLINDER

51146-31J00

1
Out of stock

8

.NUT, ROD

51352-13A60

1
Out of stock

9

.SPRING

51171-31J00

1
Out of stock

10

.GUIDE, SPRING

51158-40F30

1
Out of stock

11

.SPACER, SPRING

51176-48G10

1
Out of stock

12

.TUBE,OUTER

51131-31J30

1
Out of stock

13

.CAP

51351-31J30

1
Out of stock

14

..O RING

62278-14100

1
Out of stock

15

.PISTON

51112-31J00

1
Out of stock

16

.SLIDEMETAL

51152-31J00

1
Out of stock

17

.SEAT, SPRING

51178-31J00

1
Out of stock

18

DAMPER ASSY, FRONT FORK LH

51104-31J30

1
Out of stock

19

.TUBE,INNER,L This part replaces 51120-31J20.

51120-31J21

1
Out of stock

20

.WASHER

51158-14200

1
Out of stock

21

.OIL SEAL

51153-44G00

1
Out of stock

22

.RING, OIL SEAL STOPPER

51156-14200

1
Out of stock

23

.SEAL, DUST

51173-02FA0

1
Out of stock

24

.CYLINDER

51146-31J00

1
Out of stock

25

.NUT, ROD

51352-13A60

1
Out of stock

26

.SPRING

51171-31J00

1
Out of stock

27

.GUIDE, SPRING

51158-40F30

1
Out of stock

28

.SPACER, SPRING

51176-48G10

1
Out of stock

29

.TUBE,OUTER

51131-31J30

1
Out of stock

30

.CAP

51351-31J30

1
Out of stock

31

..O RING

62278-14100

1
Out of stock

32

.PISTON

51112-31J00

1
Out of stock

33

.SLIDEMETAL

51152-31J00

1
Out of stock

34

.SEAT, SPRING

51178-31J00

1
Out of stock

35

BOLT

51166-24F60

4
Out of stock
