2018 Suzuki DL1000XAL8 Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 2018 Suzuki DL1000XAL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

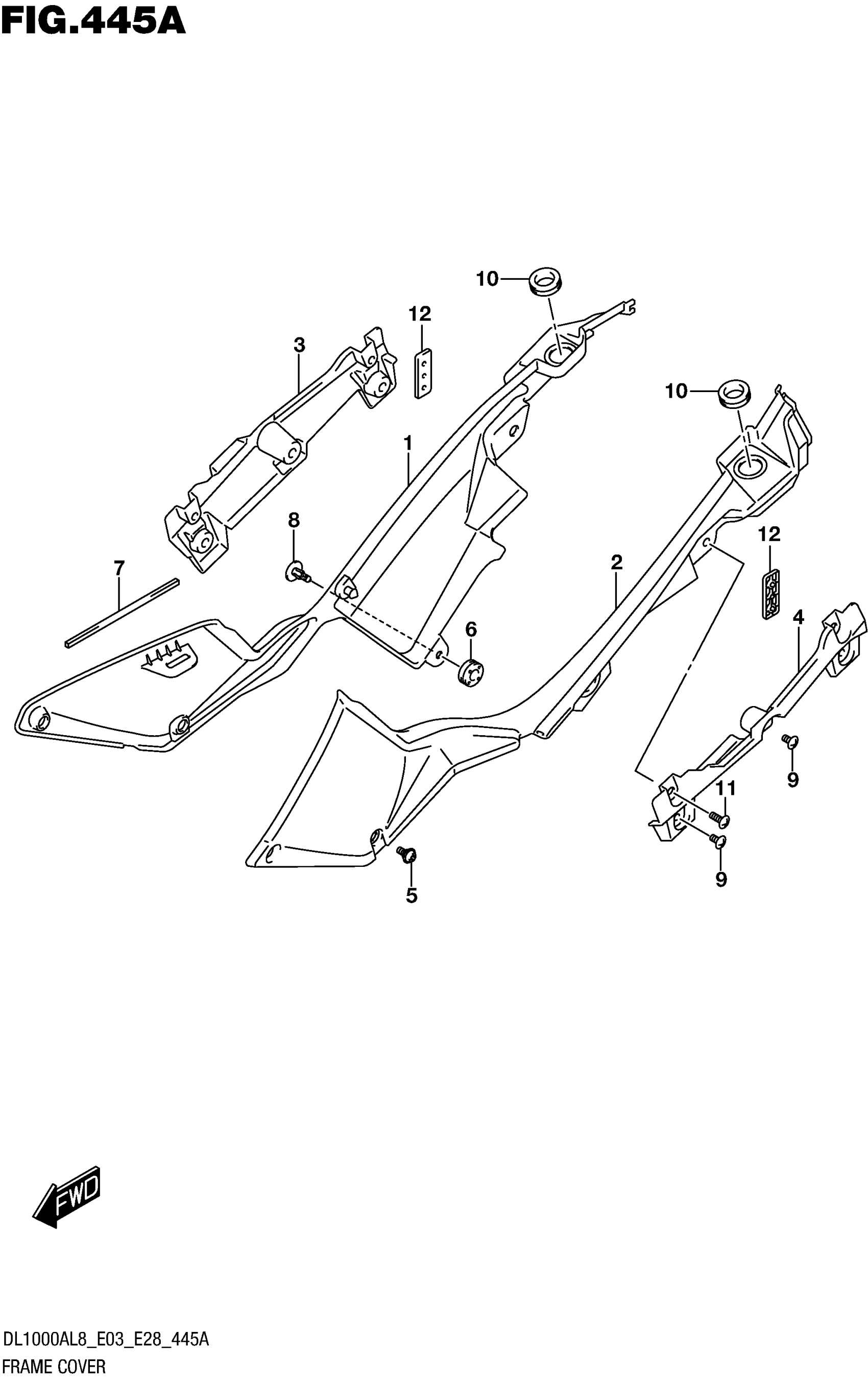

2018 Suzuki DL1000XAL8 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME RH

47111-31J10

1
Out of stock

2

COVER, FRAME LH

47211-31J10

1
Out of stock

3

COVER, FRAME REAR RH

47411-31J00

1
Out of stock

4

COVER, FRAME REAR LH

47511-31J00

1
Out of stock

5

BOLT (5X13)

09139-05074

4
Out of stock

6

CUSHION

09320-08028

2
Out of stock

7

CUSHION, FRAME COVER

47121-31J00

2
Out of stock

8

CLIP

94479-35F00

2
Out of stock

9

SCREW

47913-31J00

6
Out of stock

10

CUSHION (20X32X9) This part replaces 09320-20010.

09320-20011

2
Out of stock

11

SCREW (6X16)

09139-06120

4
Out of stock

12

SPACER,FRAME COVER

47510-28K00

2
Out of stock
