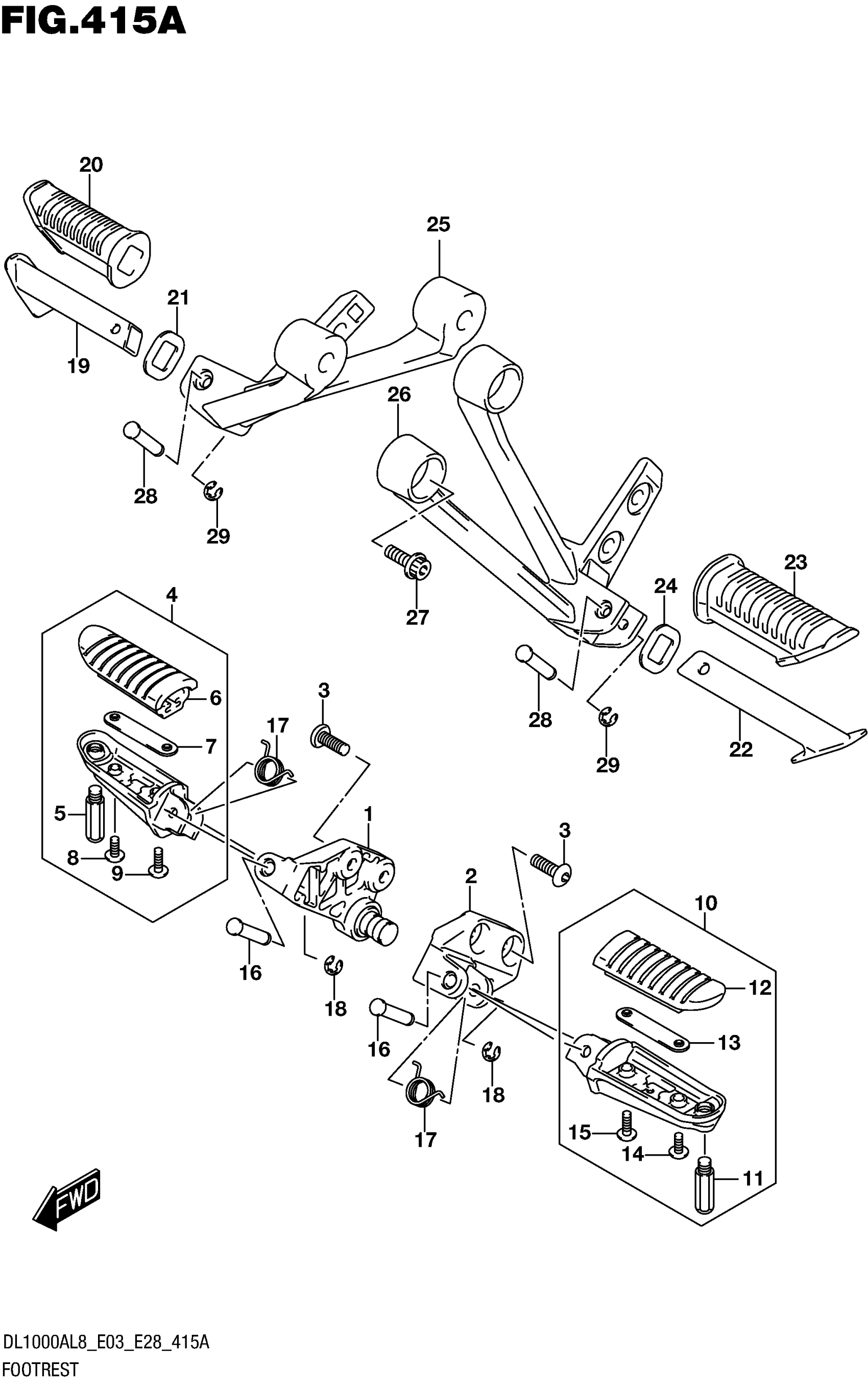

Suzuki DL1000XAL8 (2018) FOOTREST Diagram

#

Description
Price

1

BRACKET,FR FOOTREST RH (BLACK This part replaces 43510-06G01-YAP.

43510-06G10-YAP

$89.14

2

BRACKET,FR FOOTREST,L (BLACK) This part replaces 43521-06G01-YAP.

43521-06G11-YAP

$44.94

3

BOLT (8X23)

09106-08150

$3.13

4

FOOTREST ASSY,FRONT RH

43501-31J00

$132.10

5

.SENSOR, FOOTREST

43576-31J00

$11.73

6

.RUBBER

43551-06G00

$13.21

7

.PLATE

43552-06G00

$14.47

8

.SCREW | OUTER

02142-0516A

$1.43

9

SCREW | INNER

02142-0520A

$1.41

10

FOOTREST ASSY,FRONT LH

43502-31J00

$117.25

11

.SENSOR, FOOTREST

43576-31J00

$11.73

12

.RUBBER

43551-06G00

$13.21

13

.PLATE

43552-06G00

$14.47

14

.SCREW | OUTER

02142-0516A

$1.43

15

SCREW | INNER

02142-0520A

$1.41

16

PIN

09208-08019

$2.77

17

SPRING

09448-18022

$3.42

18

E RING

08332-1106A

$1.43

19

BAR, PILLION FOOTREST RH This part replaces 43610-34A30.

43610-34A60

$73.87

20

RUBBER, PILLION FOOTREST This part replaces 43612-33G01.

43612-33G30

$7.68

21

WASHER, FOOTREST RUBBER

43631-31J00

$5.82

22

BAR, PILLION FOOTREST LH This part replaces 43710-34A30.

43710-34A60

$70.48

23

RUBBER, PILLION FOOTREST This part replaces 43612-33G01.

43612-33G30

$7.68

24

WASHER, FOOTREST RUBBER

43631-31J00

$5.82

25

BRKT,PILLION FOOTREST RH (BLA

43811-31J00-YAP

$157.05

26

BRKT,PILLION FOOTREST LH (BLA

43821-31J00-YAP

$157.05

27

BOLT (8X30)

09106-08131

$4.53

28

PIN

09208-06007

$3.01

29

E RING

08332-1104A

$1.37
