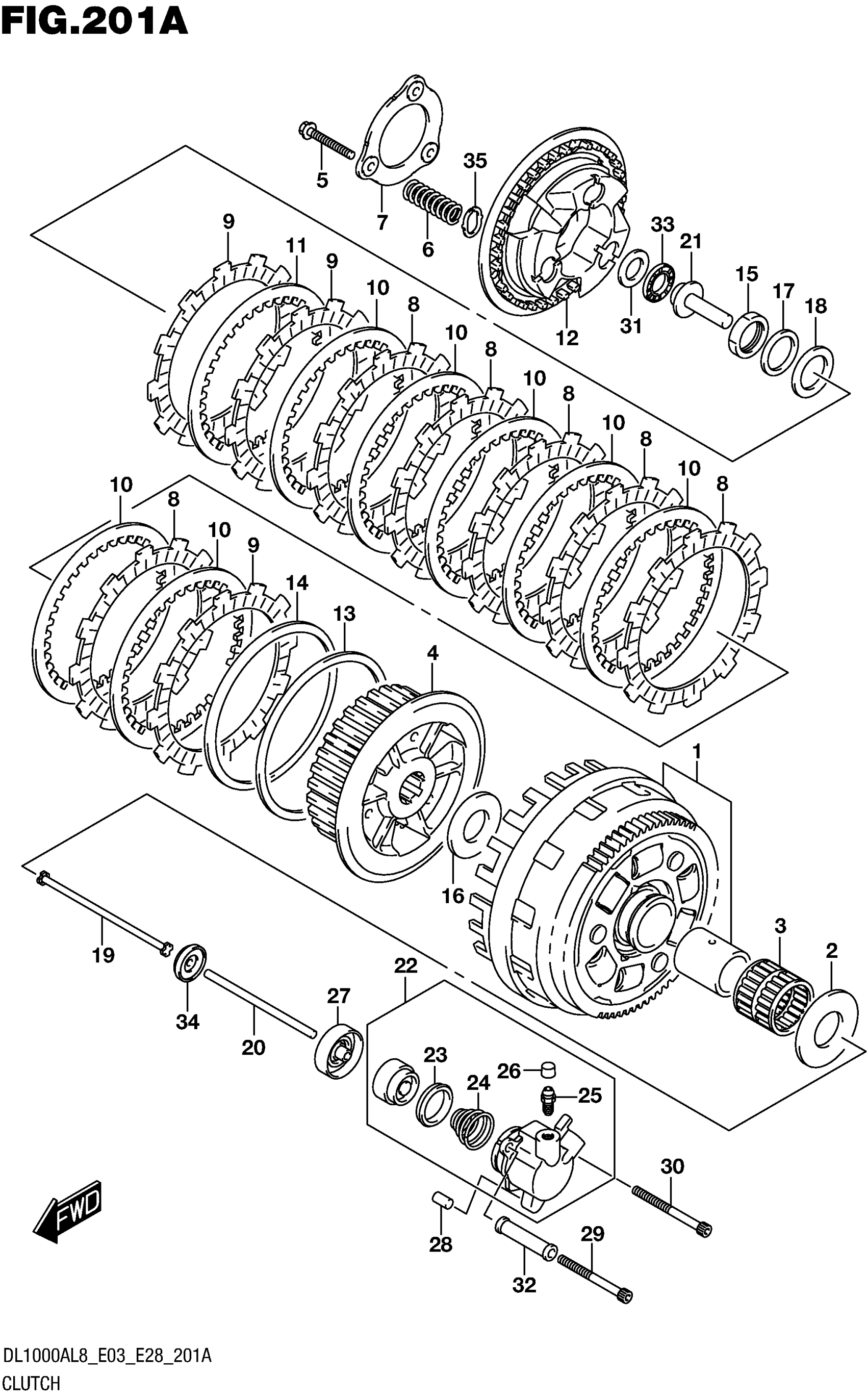

Suzuki DL1000XAL8 (2018) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN

21200-31Y11

$457.45

1

(NT:57)

21200-31Y11

$457.45

2

WASHER (25X52X2.5)

09160-25074

$10.00

3

BEARING (35X40X39.8)

09263-35013

$33.05

4

.HUB,CLUTCH SLEEVE

21411-31J10

$163.66

5

.BOLT,CLUTCH SPRING

21412-31J00

$4.63

6

SPRING,CLUTCH

21413-31J00

$10.17

7

.PLATE,STOPPER

21414-31J00

$21.93

8

PLATE, CLUTCH DRIVE NO.1

21441-31J00

$23.76

8

(T:3.8)

21441-31J00

$23.76

9

.PLATE,CLUTCH DRIVE NO.2 (T:3

21442-31J00

$23.76

9

.PLATE,CLUTCH DRIVE NO.2 (T:3

21442-31J00

$23.76

10

.PLATE,CLUTCH DRIVEN NO.1 (T:

21451-24F00

$11.09

11

.PLATE,CLUTCH DRIVEN NO.2 (T:

21452-31J00

$16.65

12

.DISC,CLUTCH PRESSURE

21462-31J10

$111.10

13

.SEAT,WAVE WASHER

21471-24F00

$13.64

14

.WASHER,CLUTCH PLATE WAVE

21472-24F00

$15.25

15

NUT

09159-24010

$12.27

16

.WASHER (25X50X2.5)

09160-25056

$10.94

17

WASHER

09164-24008

$5.00

18

SHIM (25X38X1)

09181-25223

$3.00

19

ROD, CLUTCH PUSH RH

23110-27A00

$20.75

20

ROD, CLUTCH PUSH LH

23111-26D00

$15.18

21

PIECE, CLUTCH PUSH

23121-31E00

$23.54

22

CYLINDER,CLUTCH RELEASE This part replaces 23160-06G20.

23160-06G21

$101.62

23

.CUP

23163-06B00

$6.91

24

.SPRING

23164-05A00

$4.15

25

.BLEEDER

59121-01A00

$8.35

26

.CAP, BLEEDER

59122-46H00

$4.36

27

COVER,DUST

23166-06G10

$20.42

28

PIN

04221-08149

$2.04

29

BOLT

07130-0665A

$3.88

30

BOLT

07130-0670A

$3.96

31

WASHER (15.5X28X1)

09160-15045

$3.62

32

SPACER, CLUTCH RELEASE

23171-06G00

$7.99

33

BEARING (15X28X2)

09263-15003

$7.70

34

OIL SEAL (6X34X10.5)

09283-06008

$15.62

35

.SEAT,CLUTCH SPRING

21415-31J00

$17.43
