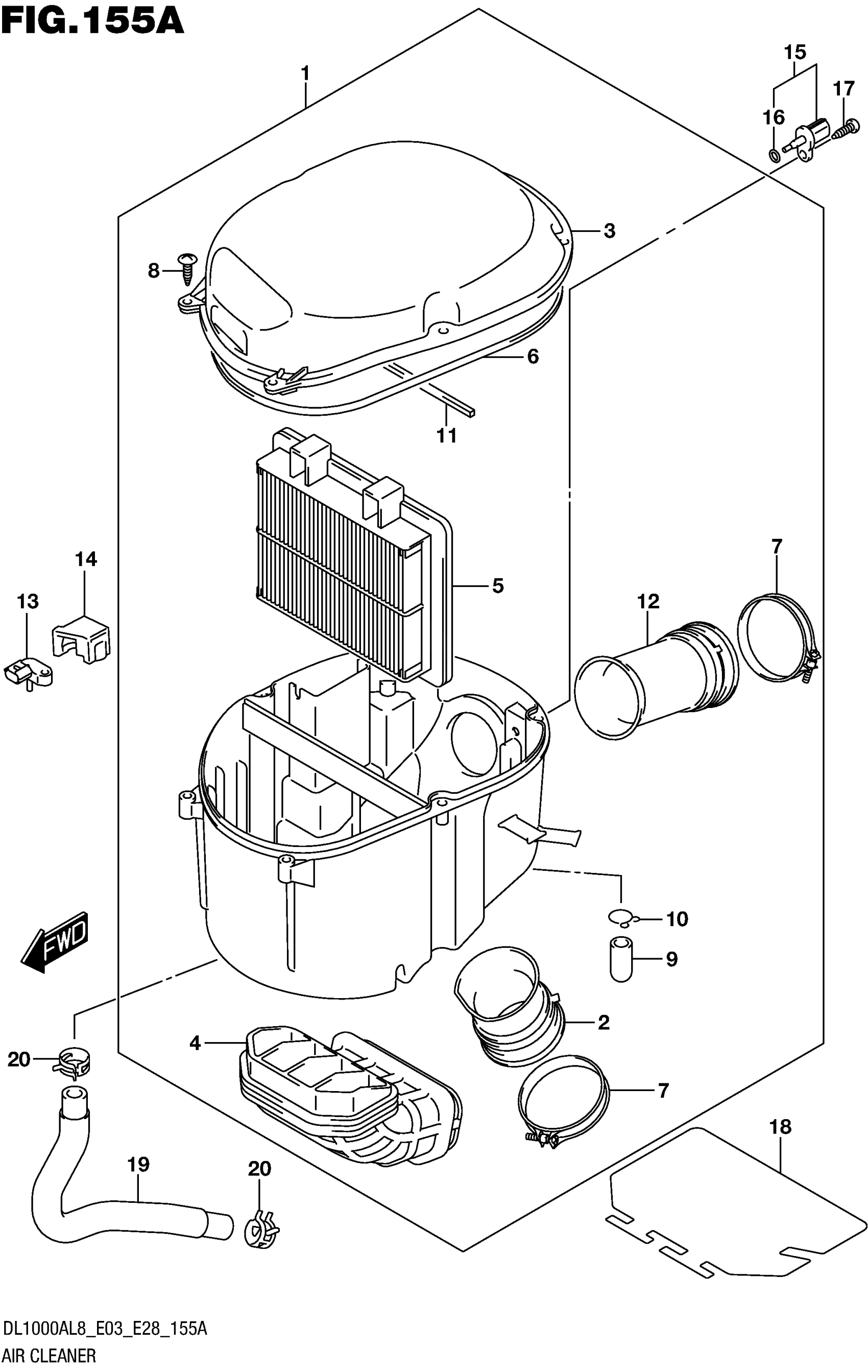

Suzuki DL1000XAL8 (2018) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR

13700-31J00

Unavailable

2

.TUBE, OUTLET FR

13881-31J00

$20.58

3

.CAP, AIR CLEANER

13741-31J00

Unavailable

4

.TUBE, INLET

13891-31J00

Unavailable

5

.FILTER, AIR CLEANER

13780-31J00

$36.46

6

.GASKET, AIR CLEANER

13746-31J00

$7.52

7

.CLAMP, OUTLET TUBE

13827-31J00

$18.10

8

.SCREW

03541-0520B

$2.87

9

.PLUG This part replaces 13878-10G00.

13878-10G01

$6.53

10

.CLIP

09401-14301

$2.17

11

.GASKET, AIR CLEANER

13746-31J10

$14.22

12

.TUBE, OUTLET RR

13882-31J00

$32.62

13

SENSOR,BOOST

18590-18K00

$350.62

14

HOLDER,SENSOR

18595-04K00

$11.92

15

SENSOR, AIR TEMP

13650-41F10

$71.40

16

O-RING

13655-41F10

Unavailable

17

SCREW

03511-0516A

$1.88

18

SHEET,AIR CLEANER INLET

13738-31J00

Unavailable

19

TUBE,BREATHER

13850-31J00

$41.50

20

CLIP

09401-22405

Unavailable
