2019 Suzuki DL1000AL9 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2019 Suzuki DL1000AL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

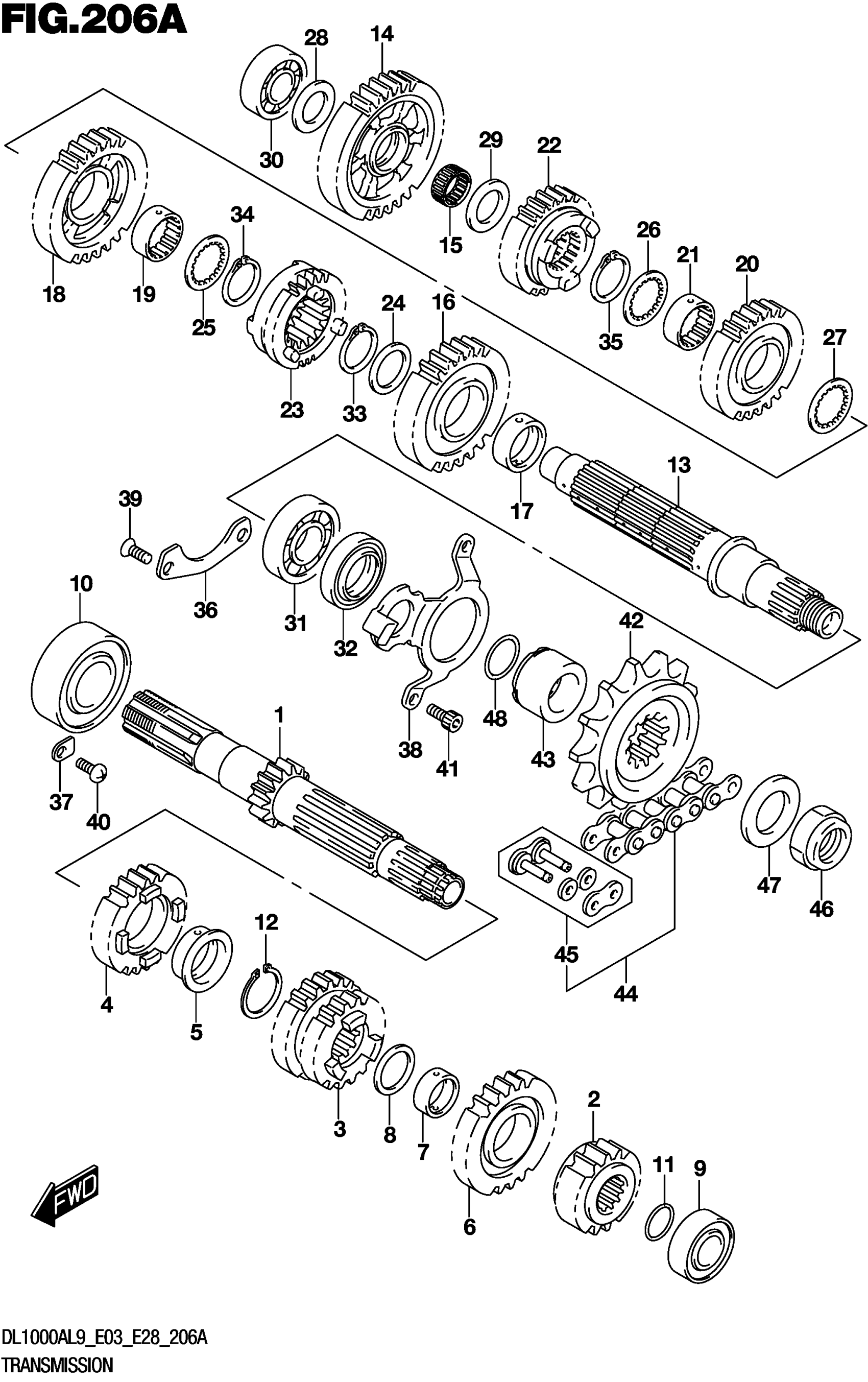

2019 Suzuki DL1000AL9 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT,COUNTER (NT:12)

24120-06G00

1
Out of stock

2

GEAR,2ND DRIVE (NT:15)

24221-02F01

1
Out of stock

3

1

$167.47

In stock

3

1

$167.47

In stock

4

GEAR,5TH DRIVE (NT:23)

24251-02F11

1
Out of stock

5

BUSH,5TH DRIVE GEAR

24252-02F10

1
Out of stock

6

GEAR,6TH DRIVE (NT:24)

24261-02F20

1
Out of stock

7

BUSH,6TH DRIVE GEAR

24262-02F00

1
Out of stock

8

SHIM (22X30X1.0)

09181-22167

1

$2.92

In stock

9

BEARING (20X47X14) | LH

09262-20139

1
Out of stock

10

1

$25.11

In stock

11

1

$3.98

In stock

12

CIRCLIP

09380-27001

1
Out of stock

13

SHAFT, DRIVE

24130-02F20

1

$311.08

In stock

14

GEAR,1ST DRIVEN (NT:36)

24311-06G00

1
Out of stock

15

BEARING (22X26X11)

09263-22068

1
Out of stock

16

1

$142.53

In stock

17

BUSH,2ND DRIVEN GEAR

24322-02F01

1
Out of stock

18

1

$142.97

In stock

19

BUSH,3RD DRIVEN GEAR

24332-17E20

1

$44.03

In stock

20

1

$139.05

In stock

21

BUSH,3RD DRIVEN GEAR

24332-17E20

1

$44.03

In stock

22

GEAR,5TH DRIVEN (NT:25)

24351-02F20

1
Out of stock

23

1

$161.33

In stock

24

WASHER (27X36X1.0)

09160-27008

1

$4.00

In stock

25

1

$6.62

In stock

26

1

$6.62

In stock

27

WASHER,3RD & 4TH DRIVEN GEAR

24333-02F10

1
Out of stock

28

SHIM (20X34X1) | RH

09181-20251

1
Out of stock

29

SHIM (22X34X1) | LH

09181-22223

1

$3.97

In stock

30

BEARING (20X52X15) | RH

09262-20082

1
Out of stock

31

BEARING (28X68X18) | LH

09262-28053

1
Out of stock

32

OIL SEAL (38X52X8) | LH

09283-38028

1
Out of stock

33

CIRCLIP

09380-27001

1
Out of stock

34

CIRCLIP

09380-27001

1
Out of stock

35

CIRCLIP

09380-27001

1
Out of stock

36

RETAINER,DRIVE SHAFT BRG

24741-06G00

1
Out of stock

37

RETAINER

24741-21A00

1
Out of stock

38

RETAINER,DRIVE SHAFT OIL SEAL

24751-06G00

1
Out of stock

39

SCREW (6X12)

09126-06011

2
Out of stock

40

SCREW

02112-0612A

1
Out of stock

41

BOLT

07130-0612A

2
Out of stock

42

1

$88.25

In stock

43

SPACER,ENGINE SPROCKET

27531-31J00

1
Out of stock

44

CHAIN,DRIVE (RK525SMOZ8) | L:120->116

27600-06G40-120

1
Out of stock

45

.JOINT SET,DRIVE CHAIN

27620-06G40

1
Out of stock

46

NUT

09159-20004

1
Out of stock

47

WASHER (25X41X3)

09160-25009

1
Out of stock

48

1

$5.46

In stock
