2019 Suzuki DL1000AL9 Front Caliper Diagram

← All diagrams

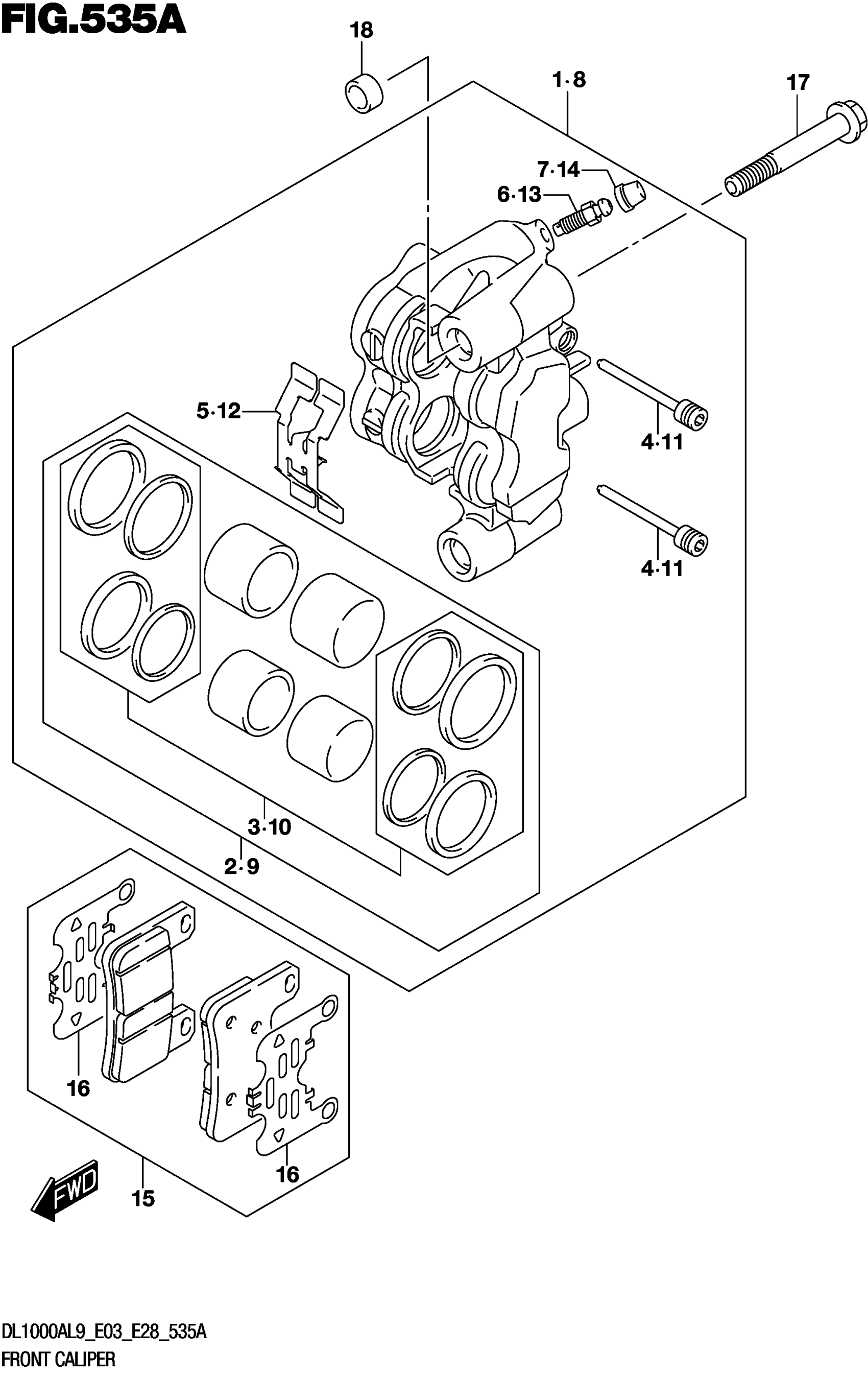

Find the part on the Front Caliper diagram for your 2019 Suzuki DL1000AL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki DL1000AL9 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY,FR RH

59100-31J00-999

1
Out of stock

2

.PISTON SET

59100-31810

1
Out of stock

3

..SEAL SET,PISTON

59101-47810

1
Out of stock

4

.PIN

59141-41G10

2

$26.91

In stock

5

.SPRING,PAD

59151-29G00

1

$12.80

In stock

6

.BLEEDER

59121-18410

1
Out of stock

7

.CAP,BLEEDER PLUG (M10X1)

55156-66310

1
Out of stock

8

CALIPER ASSY,FR LH

59300-31J00-999

1
Out of stock

9

.PISTON SET

59100-31810

1
Out of stock

10

..SEAL SET,PISTON

59101-47810

1
Out of stock

11

.PIN

59141-41G10

2

$26.91

In stock

12

.SPRING,PAD

59151-29G00

1

$12.80

In stock

13

.BLEEDER

59121-18410

1
Out of stock

14

.CAP,BLEEDER PLUG (M10X1)

55156-66310

1
Out of stock

15

PAD & SHIM SET

59100-31820

2
Out of stock

16

.SHIM

59171-31J00

4
Out of stock

17

BOLT (10X70)

09103-10392

4
Out of stock

18

PIN,CALIPER

59151-41G00

4

$11.94

In stock
