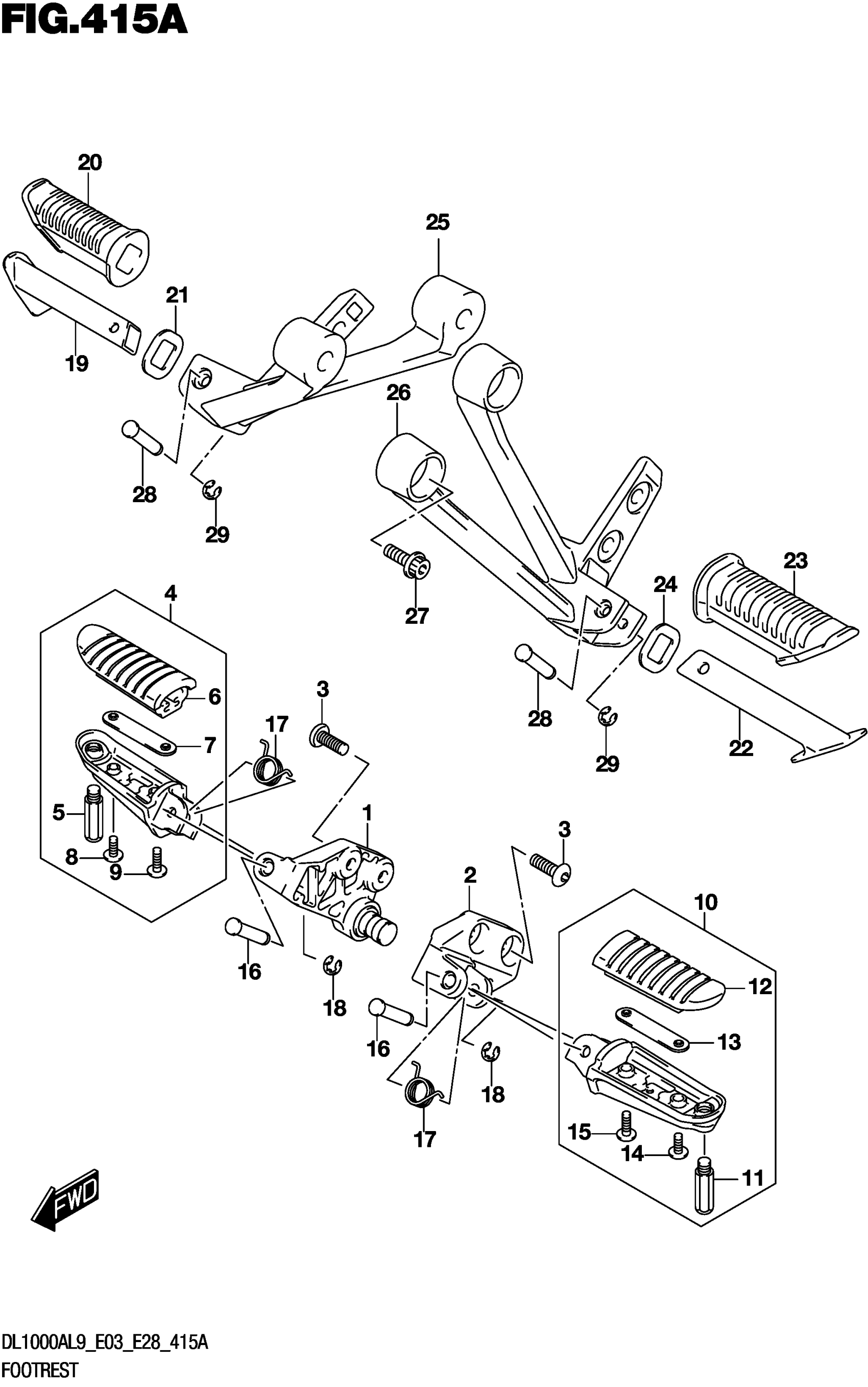

Find the part on the Footrest diagram for your 2019 Suzuki DL1000AL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki DL1000AL9 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET,FR FOOTREST RH (BLACK This part replaces 43510-06G01-YAP.

43510-06G10-YAP

1
Out of stock

2

BRACKET,FR FOOTREST,L (BLACK) This part replaces 43521-06G01-YAP.

43521-06G11-YAP

1
Out of stock

3

BOLT (8X23)

09106-08150

4
Out of stock

4

FOOTREST ASSY,FRONT RH

43501-31J00

1
Out of stock

5

.SENSOR,FOOTREST

43576-31J00

1
Out of stock

6

.RUBBER,FOOTREST

43551-06G00

1
Out of stock

7

.PLATE,FR FOOTREST RUBBER

43552-06G00

1
Out of stock

8

.SCREW | OUTER

02142-0516A

1
Out of stock

9

SCREW | INNER

02142-0520A

1
Out of stock

10

FOOTREST ASSY,FRONT LH

43502-31J00

1
Out of stock

11

.SENSOR,FOOTREST

43576-31J00

1
Out of stock

12

.RUBBER,FOOTREST

43551-06G00

1
Out of stock

13

.PLATE,FR FOOTREST RUBBER

43552-06G00

1
Out of stock

14

.SCREW | OUTER

02142-0516A

1
Out of stock

15

SCREW | INNER

02142-0520A

1
Out of stock

16

PIN

09208-08019

2
Out of stock

17

SPRING

09448-18022

2
Out of stock

18

E-RING

08332-1106A

2
Out of stock

21

WASHER,FOOTREST RUBBER

43631-34A01

1
Out of stock

24

WASHER,FOOTREST RUBBER

43631-34A01

1
Out of stock

25

BRKT,PILLION FOOTREST RH (BLA

43811-31J00-YAP

1
Out of stock

26

BRKT,PILLION FOOTREST LH (BLA

43821-31J00-YAP

1
Out of stock

27

BOLT (8X30)

09106-08131

4
Out of stock

28

.PIN

09208-06007

2
Out of stock

29

E-RING

08332-1104A

2
Out of stock
