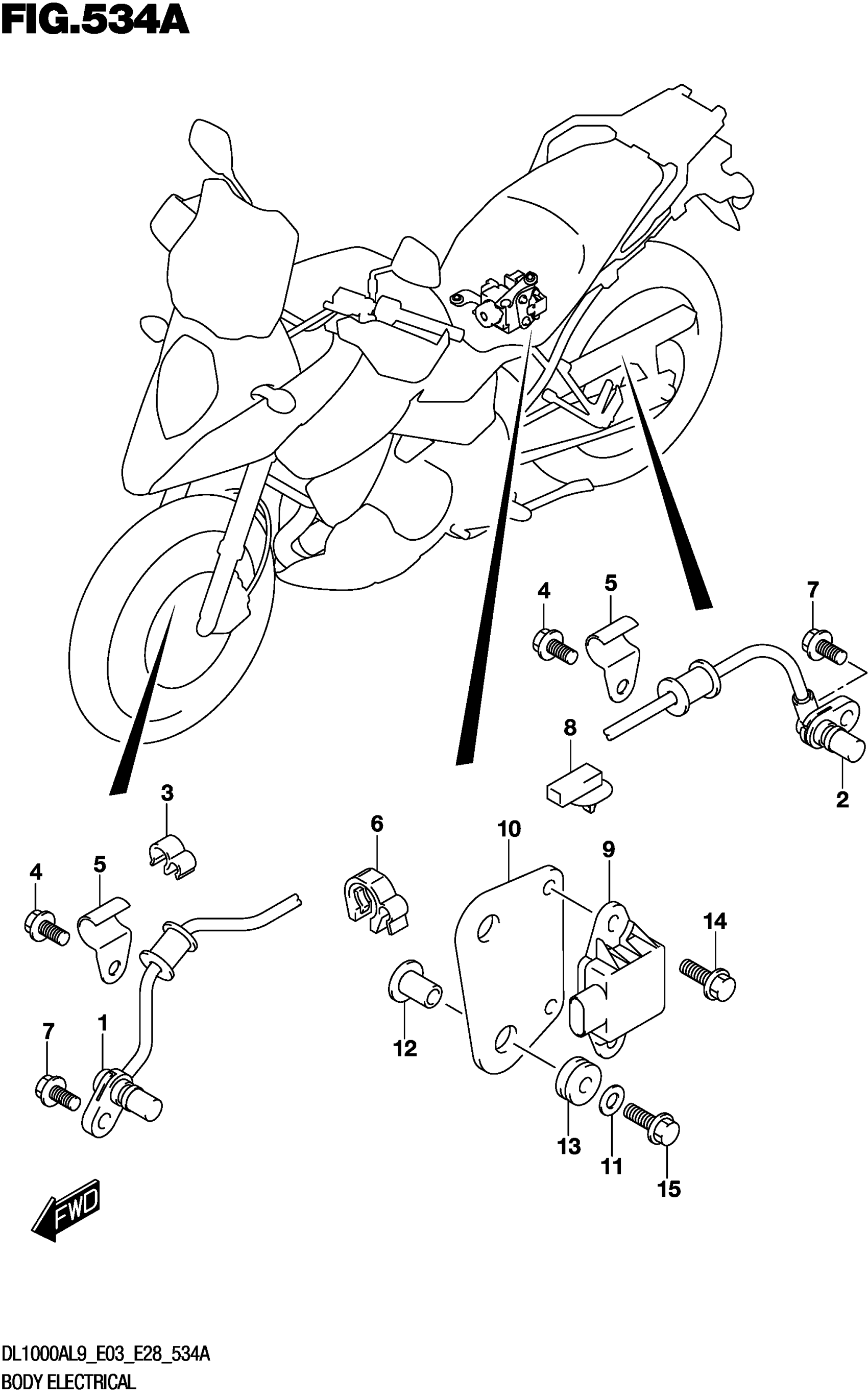

Find the part on the Body Electrical diagram for your 2019 Suzuki DL1000AL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki DL1000AL9 Body Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SENSOR, FRONT WHEEL ABS

55710-31J10

1
Out of stock

2

SENSOR, REAR WHEEL ABS

65710-31J10

1
Out of stock

3

CLAMP

09408-00266

2
Out of stock

4

BOLT

01547-0612A

2
Out of stock

5

CLAMP,ABS SENSOR FR

55731-23H00

2
Out of stock

6

CLAMP

09408-00307

4
Out of stock

7

BOLT

01547-0612A

2
Out of stock

8

CLAMP

39988-62R00

1
Out of stock

9

SENSOR, INERTIAL

55750-31J00

1
Out of stock

10

BRACKET, INERTIAL SENSOR

55760-31J00

1
Out of stock

11

WASHER (6.5X18X1.6)

09160-06109

2
Out of stock

12

SPACER (6.2X8.4X10.9)

09180-06331

2
Out of stock

13

CUSHION (8X18X10)

09320-08501

2
Out of stock

14

BOLT

01550-0616A

2
Out of stock

15

BOLT (6X20)

01550-0620A

2
Out of stock
