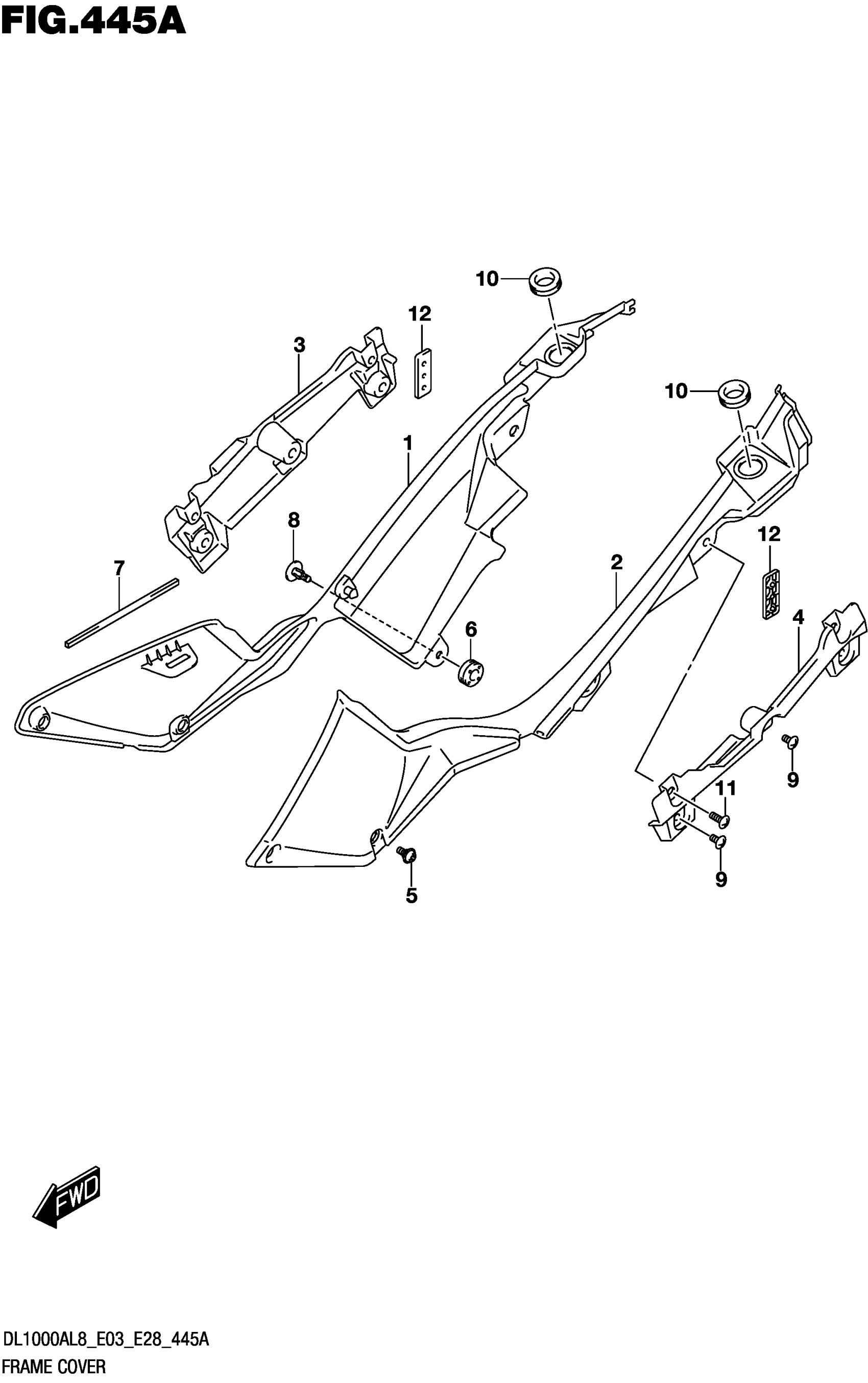

Suzuki DL1000AL8 (2018) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH

47111-31J10

Unavailable

2

COVER, FRAME LH

47211-31J10

$150.22

3

COVER, FRAME REAR RH

47411-31J00

$12.87

4

COVER, FRAME REAR LH

47511-31J00

$12.87

5

BOLT (5X13)

09139-05074

$2.58

6

CUSHION

09320-08028

$2.80

7

CUSHION, FRAME COVER

47121-31J00

$3.10

8

CLIP

94479-35F00

$5.14

9

SCREW

47913-31J00

$2.26

10

CUSHION (20X32X9) This part replaces 09320-20010.

09320-20011

$2.71

11

SCREW (6X16)

09139-06120

$2.80

12

SPACER,FRAME COVER

47510-28K00

$20.00
