2018 Suzuki DL1000AL8 Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 2018 Suzuki DL1000AL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

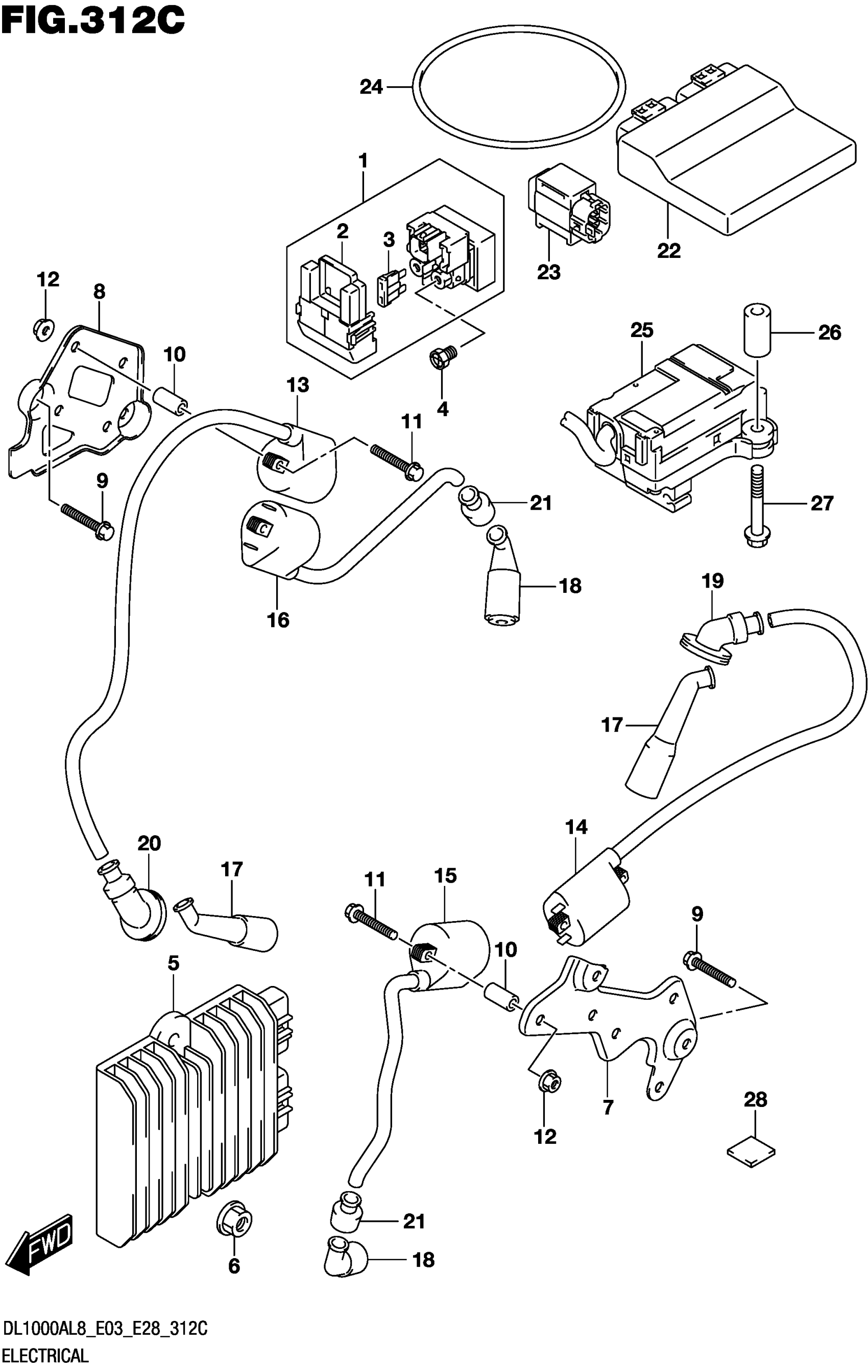

2018 Suzuki DL1000AL8 Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RELAY ASSY,STARTING MOTOR This part replaces 31800-06G00.

31800-06G02

1
Out of stock

2

.COVER, RELAY ASSY

31861-47E00

1
Out of stock

3

.FUSE (30A)

09481-30101

2
Out of stock

4

SCREW (6X8)

09128-06013

2
Out of stock

5

RECTIFIER ASSY

32800-31J00

1
Out of stock

6

NUT

08316-1006A

2
Out of stock

7

BRACKET, IGNITION COIL

33414-31J00

1
Out of stock

8

BRACKET, IGNITION COIL

33424-31J00

1
Out of stock

9

BOLT

01550-0620A

4
Out of stock

10

SPACER (6.4X10X18)

09180-06195

8
Out of stock

11

BOLT (6X35)

09103-06231

8
Out of stock

12

NUT

09159-06096

8
Out of stock

13

COIL ASSY,IGNITION This part replaces 33410-06G00.

33410-06G01

1
Out of stock

14

COIL ASSY, IGNITION This part replaces 33410-17G00.

33410-17G01

1
Out of stock

15

COIL ASSY, IGNITION

33410-20H00

1
Out of stock

16

COIL ASSY,IGNITION This part replaces 33410-26G00.

33410-26G01

1
Out of stock

17

CAP ASSY,SPARK PLUG

33510-31G00

2
Out of stock

18

CAP ASSY,SPARK PLUG

33510-31G10

2
Out of stock

19

SEAL,HT CORD RR

33542-06G00

1
Out of stock

20

SEAL,HT CORD FR

33542-06G10

1
Out of stock

21

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

2
Out of stock

22

CONTROL UNIT, FI

32920-31J22

1
Out of stock

23

SENSOR ASSY,FUEL CUT

33960-06G10

1
Out of stock

24

O RING (D:3.5,ID:85)

09280-85001

1
Out of stock

25

ACTUATOR ASSY This part replaces 33970-47H01.

33970-47H03

1
Out of stock

26

SPACER (6.2X14.5X26)

09180-06345

2
Out of stock

27

BOLT (6X55)

09116-06183

2
Out of stock

28

CUSHION

44534-24F00

1
Out of stock
