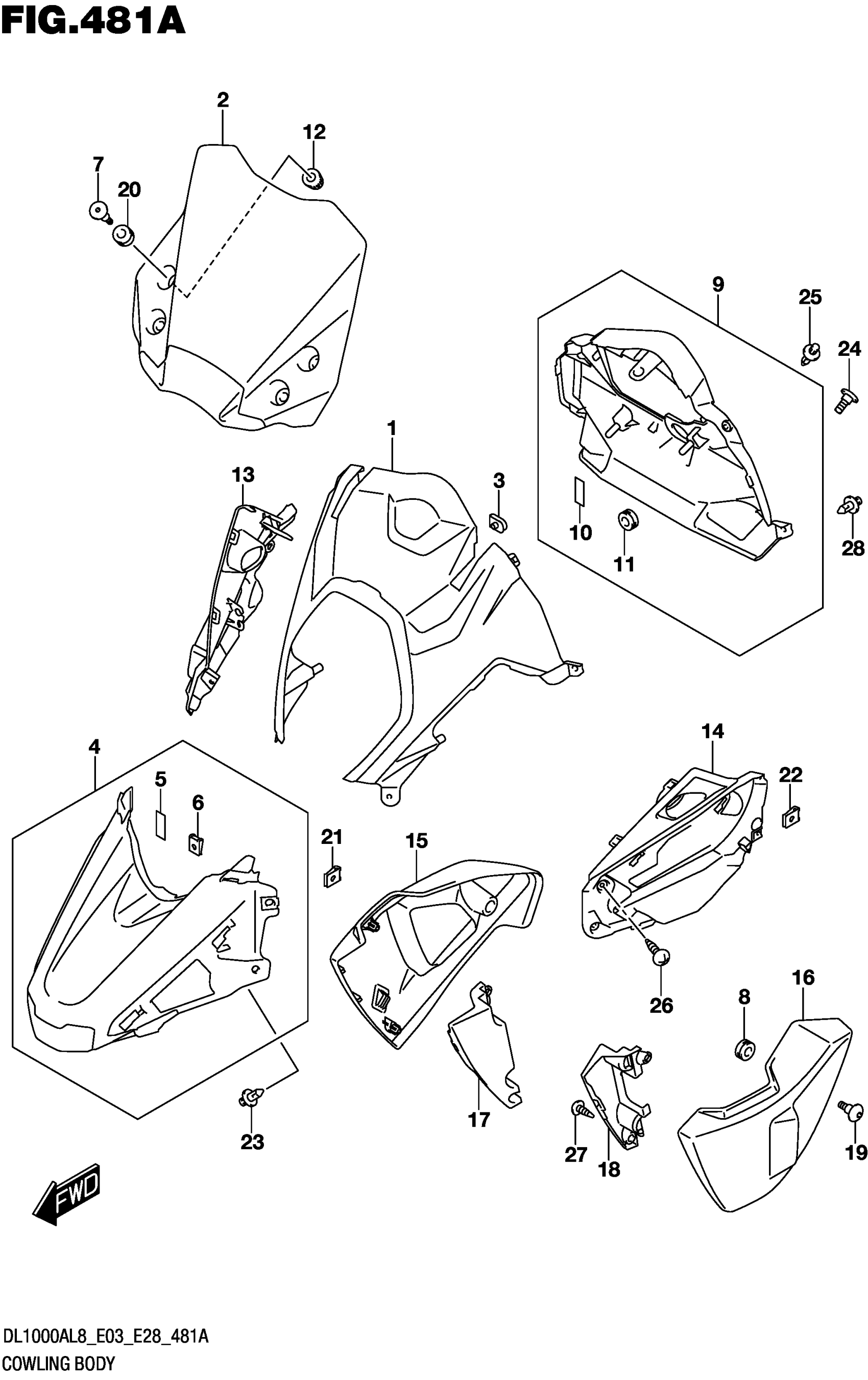

Suzuki DL1000AL8 (2018) COWLING BODY Diagram

#

Description
Price

1

COWLING, BODY (BLACK)

94411-31J10-YKV

$308.93

2

WINDSCREEN (BLACK)

48410-31JB0

$130.02

3

NUT

09148-06020

$4.01

4

COWLING, BODY LOWER

94402-31J10

$44.65

5

PAD (8X20X2)

73415-70A00

$1.50

6

.NUT

09148-05052

$3.04

7

BOLT, WINDSCREEN

48415-31J00

$7.75

8

CUSHION

09320-09016

$1.97

9

PANEL, METER

94630-31J10

$53.03

10

PAD (8X20X2)

73415-70A00

$1.50

11

.CUSHION

09320-08028

$2.80

12

CAP, WINDSCREEN SCREW

48414-31J00

$3.27

13

COVER, SIDE FR RH

94413-31J10

$33.25

14

COVER, SIDE FR LH

94414-31J10

$33.25

15

COWLING, SIDE LOWER RH

94441-31J00-291

$41.68

15

(BLACK)

94441-31J00-291

$41.68

16

COWLING, SIDE LOWER LH

94451-31J00-291

$41.22

16

(BLACK)

94451-31J00-291

$41.22

17

COVER, SIDE COWL INNER RH

94461-31J00

$11.75

18

COVER, SIDE COWL INNER LH

94462-31J00

$11.50

19

SCREW

47911-31J00

$5.30

20

CUSHION

09320-09016

$1.97

21

NUT

09148-05038

$1.97

22

NUT

09148-05052

$3.04

23

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

24

SCREW (6X16)

09139-06120

$2.80

25

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

26

SCREW

03541-0512A

$1.37

27

SCREW

03541-0512A

$1.37

28

CLIP

09409-06329

$2.80
