Description

Price

1

SEAT ASSY This part replaces 45100-31J00-AR8.

45100-31J01-AR8

$317.83

2

.CUSHION

45149-31300

$3.41

3

CUSHION

09321-10012

$2.80

4

.TAPE, SEAT BOTTOM

94474-17H00

$5.18

5

SHEET, HEAT SHIELD RUBBER

45256-31J00

Unavailable

6

BRACKET, SEAT SUPPORT

45220-47H00

$155.43

7

GUIDE, SEAT LOCK CABLE

45288-14F00

$5.14

8

LOCK SET, SEAT This part replaces 95700-14F00.

95700-14810

$102.14

9

PLATE, SEAT LOCK ASSY

45289-11F00

$5.93

10

SCREW

02122-0630A

$1.81

11

CABLE, SEAT LOCK

45280-18G01

$20.14

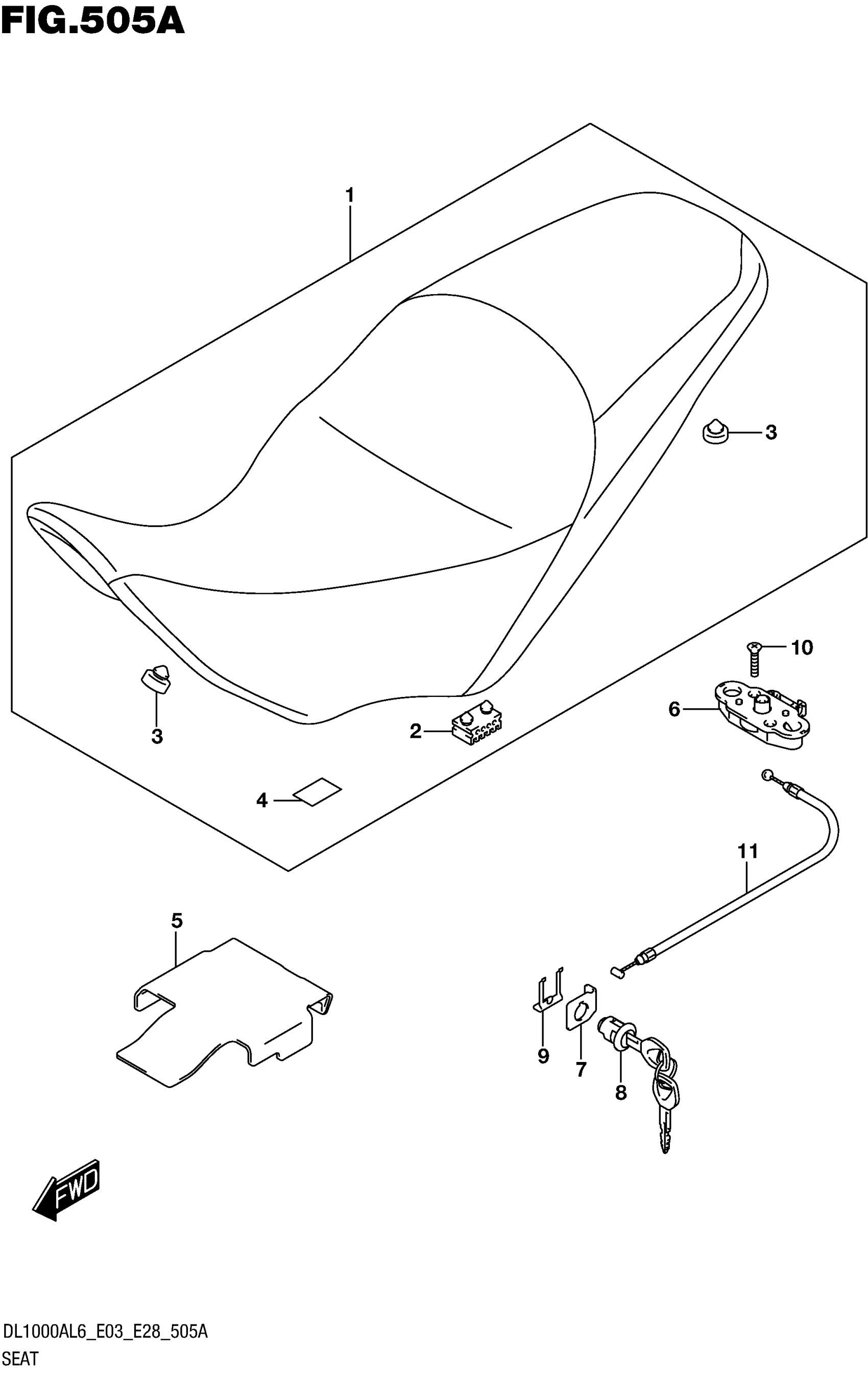

Suzuki DL1000AL6 (2016) SEAT Diagram
