2016 Suzuki DL1000AL6 Radiator Hose Diagram

← All diagrams

Find the part on the Radiator Hose diagram for your 2016 Suzuki DL1000AL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

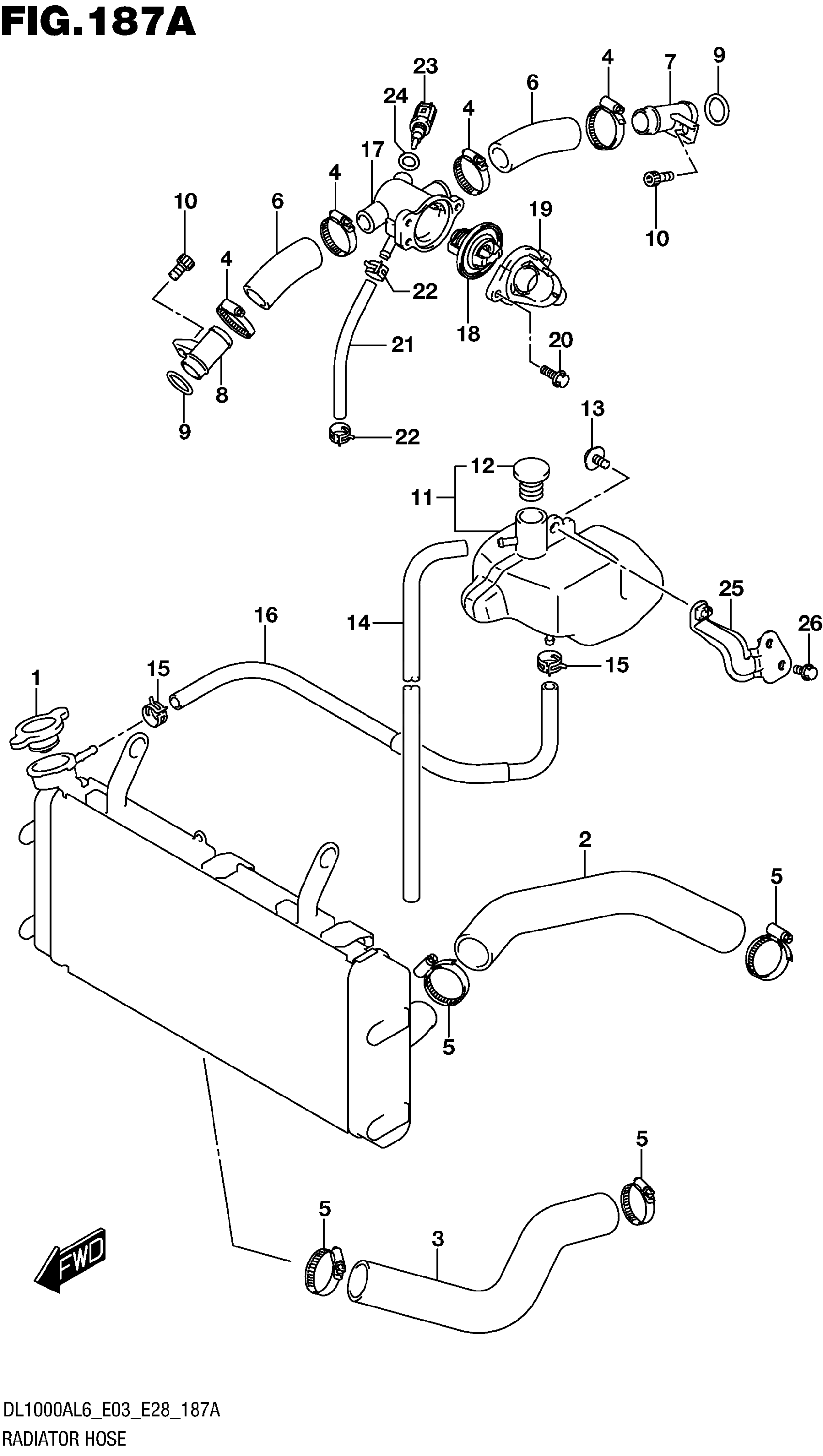

2016 Suzuki DL1000AL6 Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAP, RADIATOR (1.1)

17730-14G00

1
Out of stock

2

HOSE, RADIATOR INLET

17851-31J00

1

$35.45

In stock

3

HOSE, RADIATOR OUTLET

17852-31J00

1

$31.53

In stock

4

CLAMP

09402-28513

4
Out of stock

5

CLAMP

09402-35501

4

$7.21

In stock

6

HOSE,CONNECTOR INLET

17853-02F10

2

$12.62

In stock

7

UNION, CONNECTOR HOSE

17890-06G20

1

$14.80

In stock

8

UNION, CONNECTOR HOSE

17890-06G20

1

$14.80

In stock

10

BOLT

07130-0612A

2
Out of stock

11

TANK ASSY,RESERVOIR

17910-31J00

1

$61.02

In stock

12

.CAP

17931-31J00

1

$8.13

In stock

13

BOLT (6X12)

09111-06085

1
Out of stock

14

HOSE,RSVR TANK OVFL

17982-31J00

1
Out of stock

15

CLIP

09401-08411

2
Out of stock

16

1

$22.08

In stock

17

1

$72.57

In stock

18

1

$25.68

In stock

19

1

$61.78

In stock

20

BOLT

01550-0616A

2
Out of stock

21

HOSE, WATER BYPASS

17856-16G10

1

$25.08

In stock

22

CLIP

09401-12414

2
Out of stock

23

SENSOR, WATER TEMP

13650-49X00

1
Out of stock

24

GASKET (12X17X1)

09168-12017

1
Out of stock

25

BRACKET,RSVR TANK

17920-31J00

1
Out of stock

26

BOLT

01550-0610A

2
Out of stock
