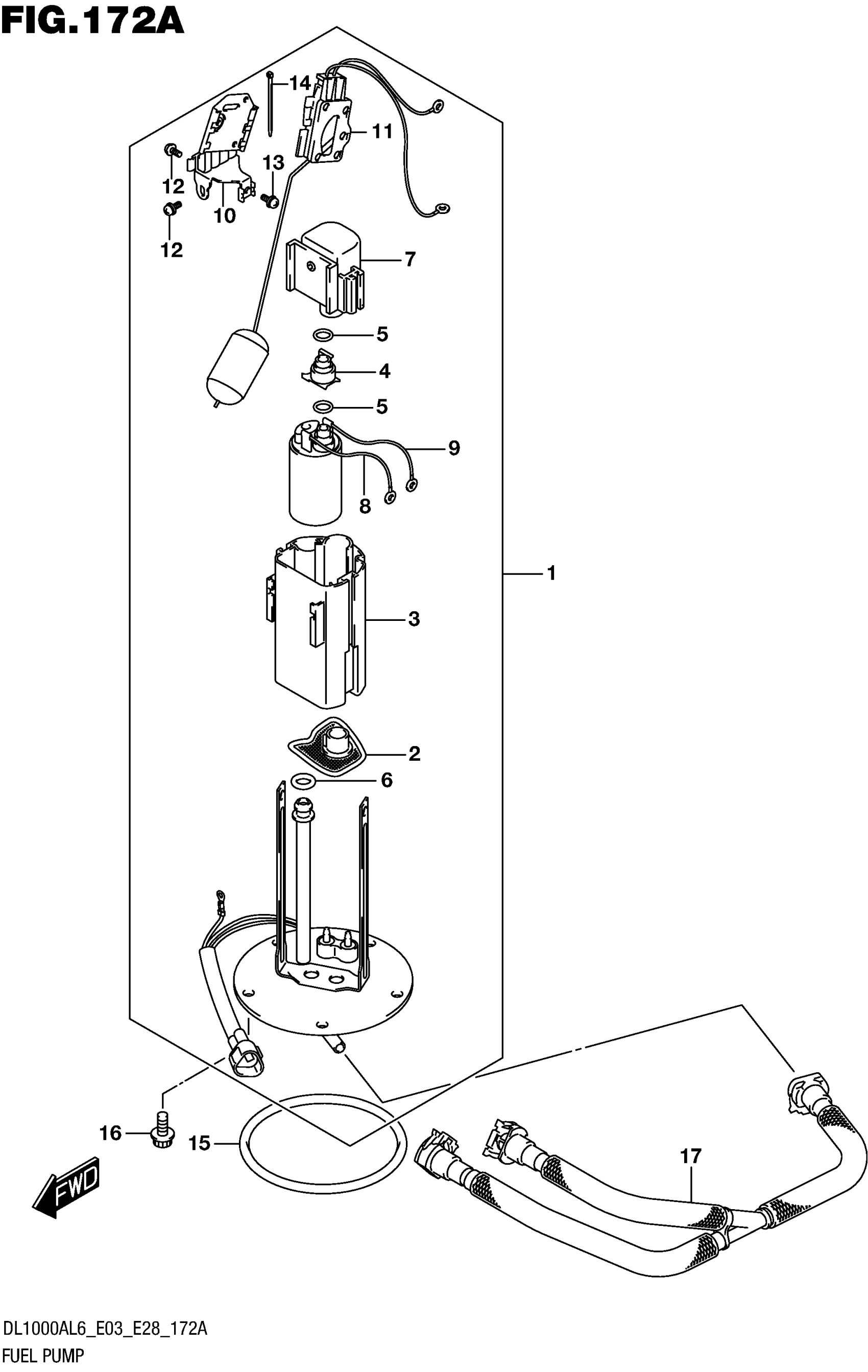

Suzuki DL1000AL6 (2016) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY, FUEL

15100-31J01

$808.45

2

.STRAINER

15420-05H00

$37.68

3

.CUP, RESERVOIR

15111-27G00

$47.88

4

.JOINT

15112-05H00

$31.73

5

.O RING

15113-05H00

$18.81

6

.O RING

15113-35F00

$8.15

7

.REGULATOR

15610-14J00

$159.78

8

.WIRE, EARTH

15114-14J00

Unavailable

9

.WIRE,LEAD

15115-08J00

Unavailable

10

.BRACKET, FUEL GAUGE

15181-31J00

Unavailable

11

.GAUGE ASSY

34810-31J00

$199.22

12

.SCREW

15116-10F00

$6.30

13

.SCREW

15116-31J00

Unavailable

14

.BINDER

15151-31J00

Unavailable

15

O-RING

15201-35F00

$25.27

16

BOLT

07120-0612A

$2.50

17

HOSE, FUEL

15810-31J00

$153.28
