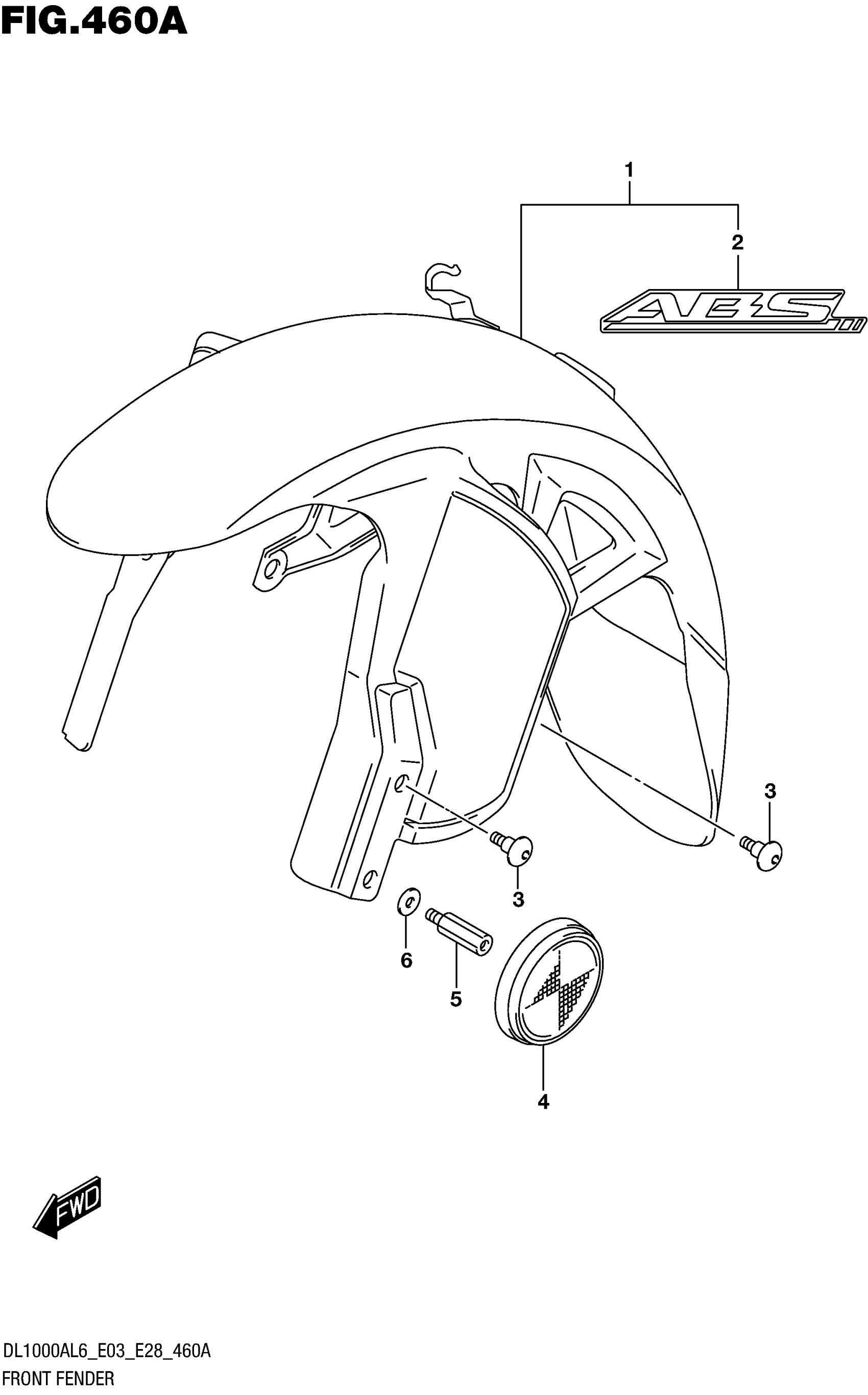

Suzuki DL1000AL6 (2016) FRONT FENDER Diagram

#

Description

Price

1

FENDER ASSY,FRONT (GRAY,BLACK This part replaces 53100-31J10-GWM.

53100-31J12-GWM

$205.92

2

.EMBLEM,ABS (GRAY,BLACK) This part replaces 68151-44G10-GWM.

68151-44G11-GWM

$13.92

3

SCREW

47915-31J00

$2.80

4

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$13.94

5

BOLT

09119-06109

$14.43

6

WASHER (8.5X18X1)

09160-08043

$1.81
