2014 Suzuki DL1000AL4 Speedometer Diagram

← All diagrams

Find the part on the Speedometer diagram for your 2014 Suzuki DL1000AL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

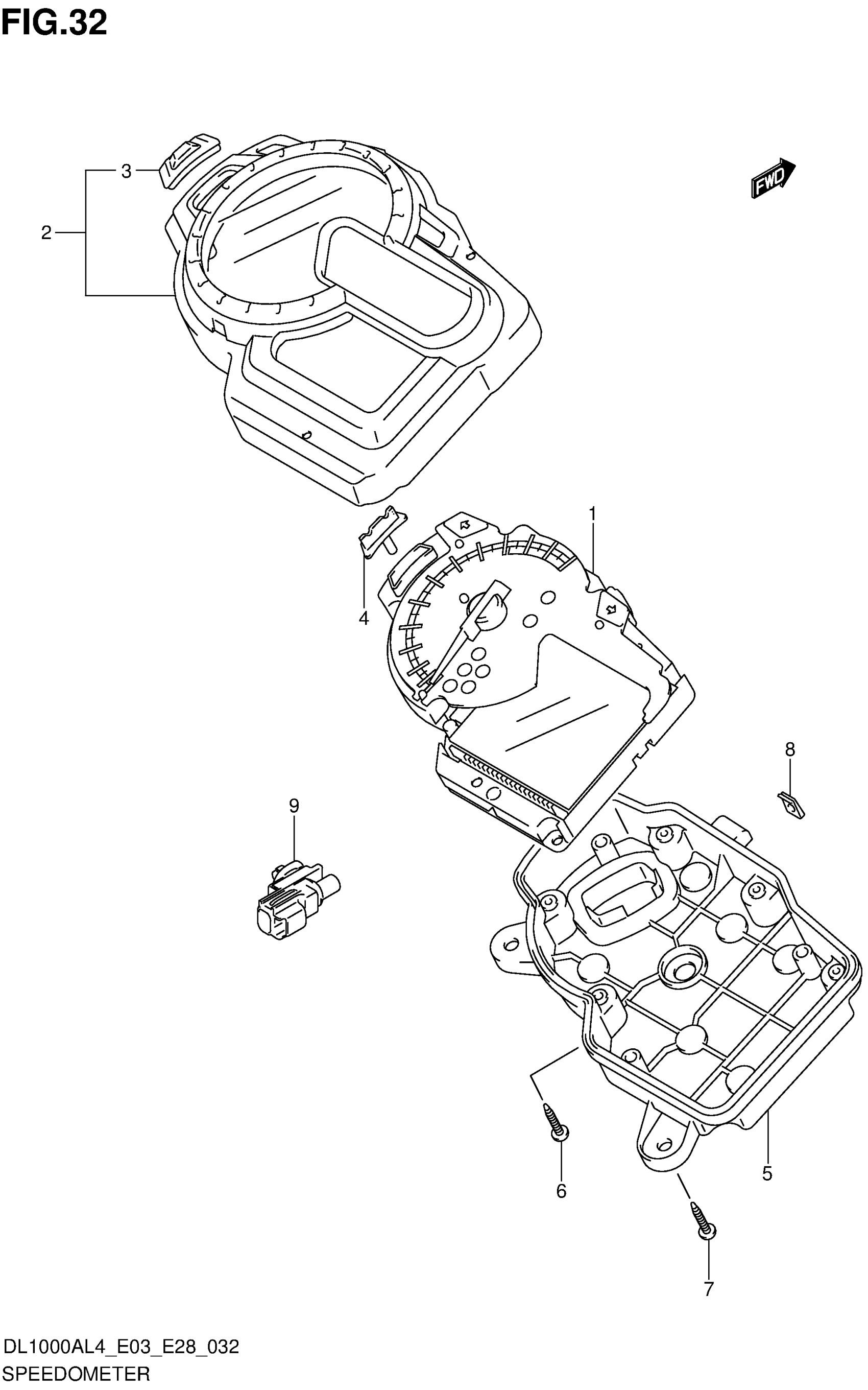

2014 Suzuki DL1000AL4 Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER

34120-31J10

1
Out of stock

2

CASE, UPPER This part replaces 34150-31J00.

34150-31J01

1
Out of stock

3

RUBBER SWITCH

34126-31J00

1
Out of stock

4

KNOB

34124-31J00

1
Out of stock

5

CASE, LOWER This part replaces 34152-31J00.

34152-31J01

1
Out of stock

6

SCREW (3X12)

34183-29F00

6
Out of stock

7

SCREW

03541-0516A

2
Out of stock

8

NUT

09148-05052

1
Out of stock

9

SENSOR, AIR TEMP

95643-58J00

1
Out of stock
