2014 Suzuki DL1000AL4 Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 2014 Suzuki DL1000AL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

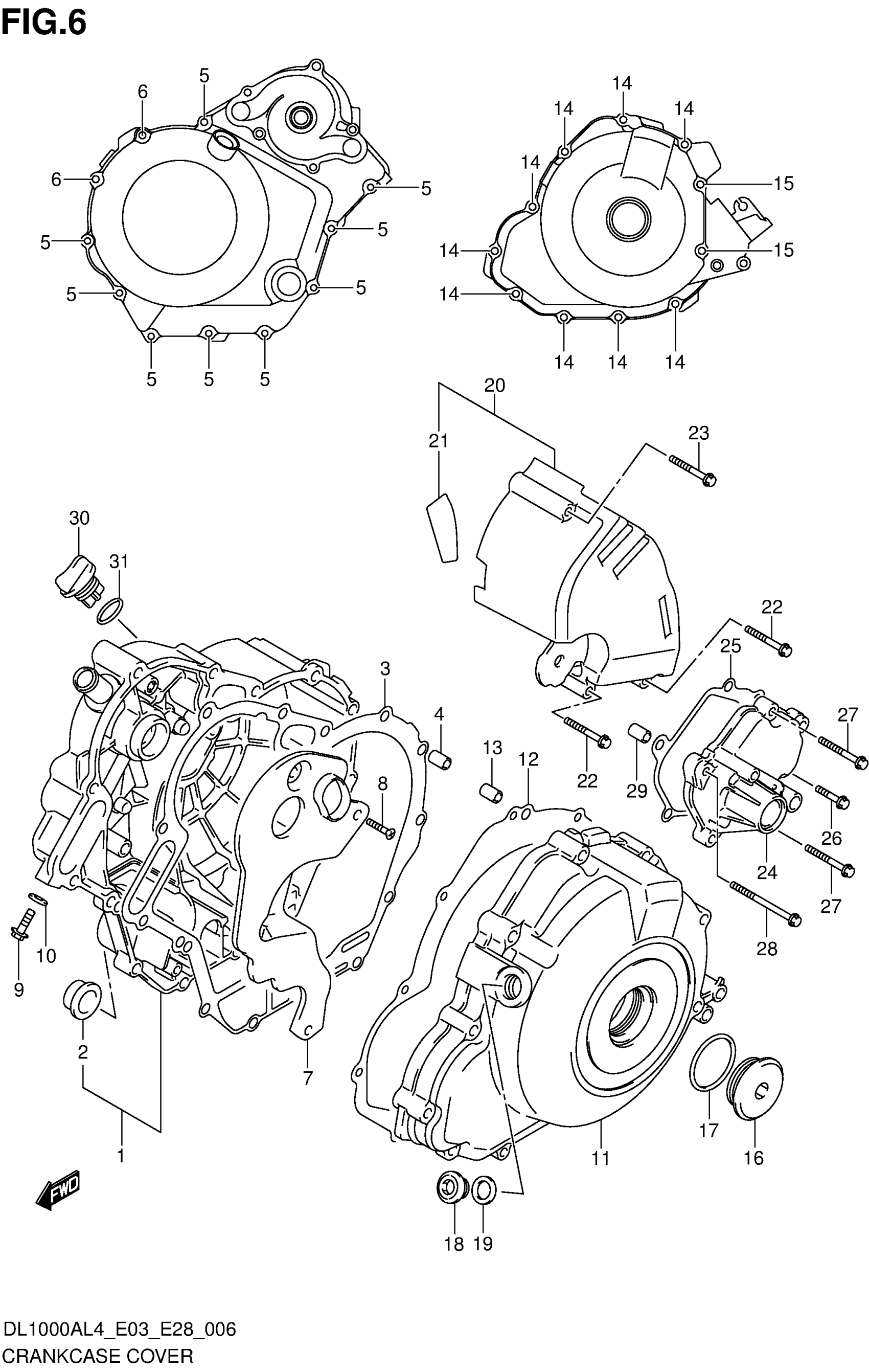

2014 Suzuki DL1000AL4 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH This part replaces 11340-06G30.

11340-06G40

1
Out of stock

2

LENS, OIL LEVEL CHECK

11971-33210

1
Out of stock

3

GASKET, CLUTCH COVER

11482-06G10

1
Out of stock

4

PIN

04211-09149

2
Out of stock

5

BOLT (6X30)

09103-06213

9

$2.63

In stock

6

BOLT (6X75)

09103-06257

2
Out of stock

7

SEPARATOR,OIL

11342-06G00

1
Out of stock

8

SCREW

02112-0612A

4
Out of stock

9

BOLT

01550-0610B

1
Out of stock

10

GASKET (6.4X11.5X0.8)

09168-06026

1
Out of stock

11

COVER,MAGNETO This part replaces 11351-31J00.

11351-31J11

1
Out of stock

12

GASKET, MAGNETO COVER

11483-02F10

1
Out of stock

13

PIN

04211-09149

1
Out of stock

14

BOLT (6X35)

09103-06214

9
Out of stock

15

BOLT (6X80)

09103-06263

2
Out of stock

16

PLUG

09259-36026

1
Out of stock

17

.O-RING (D:3.1,ID:32.7)

09280-33004

1
Out of stock

18

PLUG, SHAFT This part replaces 09248-14012.

09248-14011

1
Out of stock

19

GASKET (13.8X18.8X4.8)

09168-14002

1
Out of stock

20

COVER,ENG SPROCKET

11360-31J00

1
Out of stock

21

SHEET, SPROCKET COVER

11362-31J00

1
Out of stock

22

BOLT (6X35)

09103-06214

2
Out of stock

23

BOLT (6X60)

09103-06261

1

$3.13

In stock

24

COVER,GEAR SHIFT

11381-06G00

1
Out of stock

25

GASKET

11485-02F10

1
Out of stock

26

BOLT (6X105)

09103-06314

1
Out of stock

27

BOLT

01547-0625A

2
Out of stock

28

BOLT

01547-0635A

2
Out of stock

29

PIN

04211-09149

2
Out of stock

30

PLUG,ENGINE OIL FILLER

11971-25D00

1
Out of stock

31

O RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock
