Description

Price

1

HANDLEBAR

56111-06G00

$284.31

2

BALANCER SET,HA | Includes Item(s) 3 - 9 This part replaces 56200-06861.

56200-06862

$52.49

3

SCREW

09127-06023

$4.68

4

.SPACER, KNUCKLE COVER

57346-14G00

$19.62

5

EXPANDER, OUTER

56272-06G00

$10.78

6

SPACER

56276-17D00

$5.00

7

.WASHER (6.5X16X1.6)

09160-06130

$1.97

8

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

$4.64

9

NUT

56273-10G10

$8.27

10

MIRROR ASSY, REAR VIEW RH This part replaces 56500-04F21.

56500-04F23

$175.16

11

MIRROR ASSY, REAR VIEW LH This part replaces 56600-04F21.

56600-04F23

$194.30

12

CABLE ASSY, THROTTLE

58300-06G11

$159.33

13

GUIDE, CABLE

58621-06G00

$11.18

14

BOLT

02162-0612B

$2.77

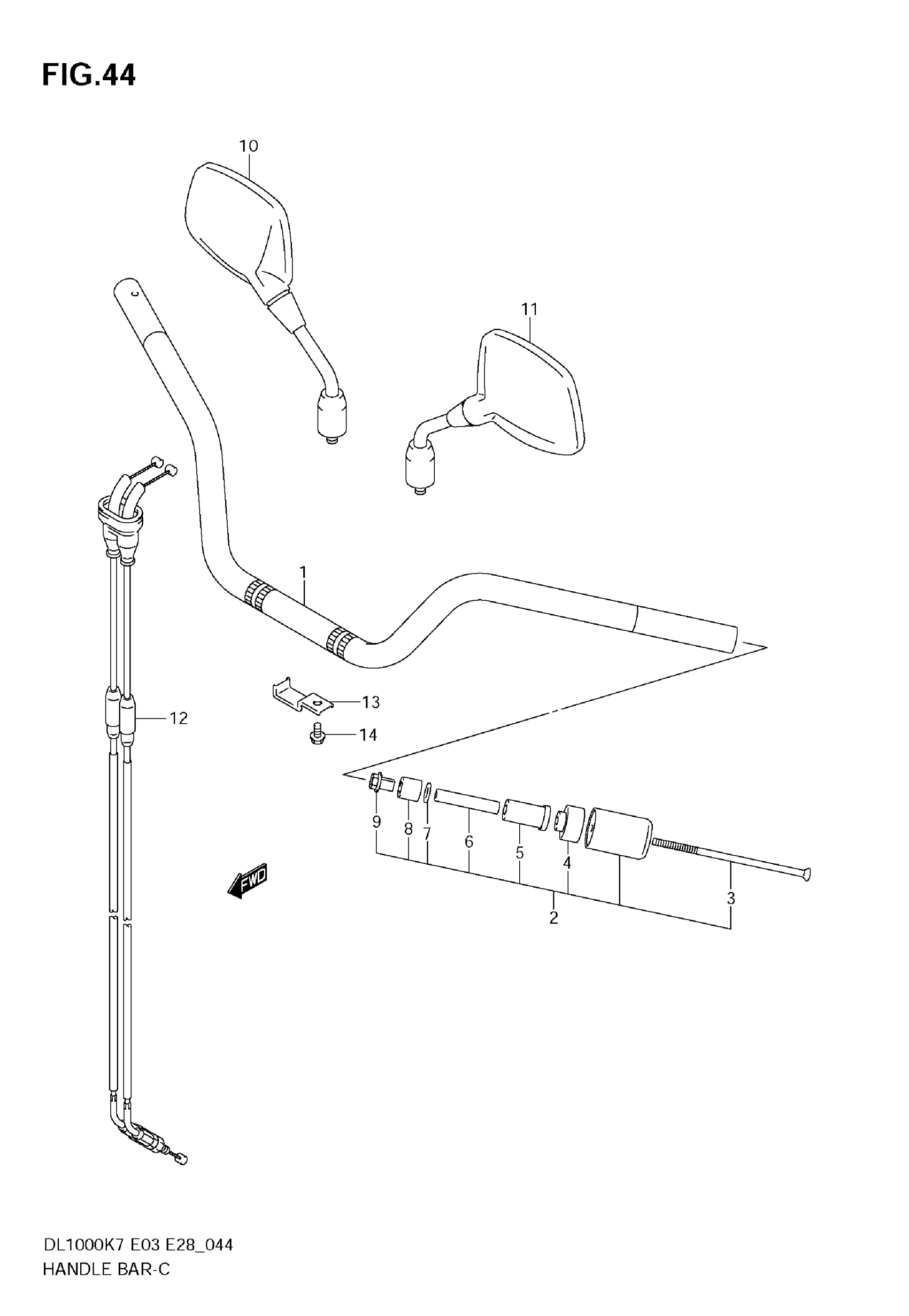

Suzuki DL1000 (2009) HANDLEBAR Diagram
